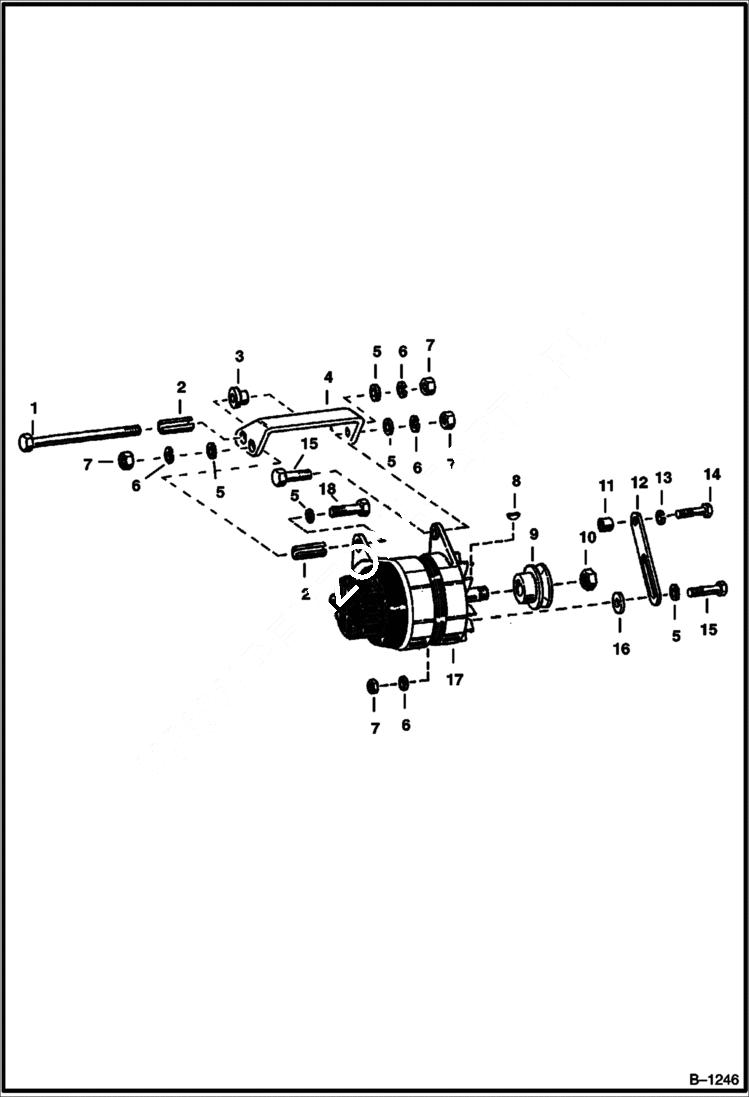

Запчасти Bobcat 600s LUCAS ALTERNATOR MOUNTING POWER UNIT

1

17C596

BOLT Was 17C000592B - A

2

BUSHING NLA - Was 6506074 - A

3

6505747

ADAPTER

4

BRACKET NLA - Was 6508073 - A

5

25E15

WASHER

6

4E5

WASHER

7

61D5

NUT

8

5J405

KEY woodruff

9

PULLEY NLA - Was 6505765 - A

10

NUT NLA - Was 6505766 - A

11

6516161

SPACER

12

6516160

STRAP adjusting

13

6516157

WASHER

14

1CM860

BOLT

15

17C524

BOLT

16

6508134

SPACER

17

6516284

ALTERNATOR See Illustration ALTERNATOR/ A1398

18

17C532

BOLT 5
