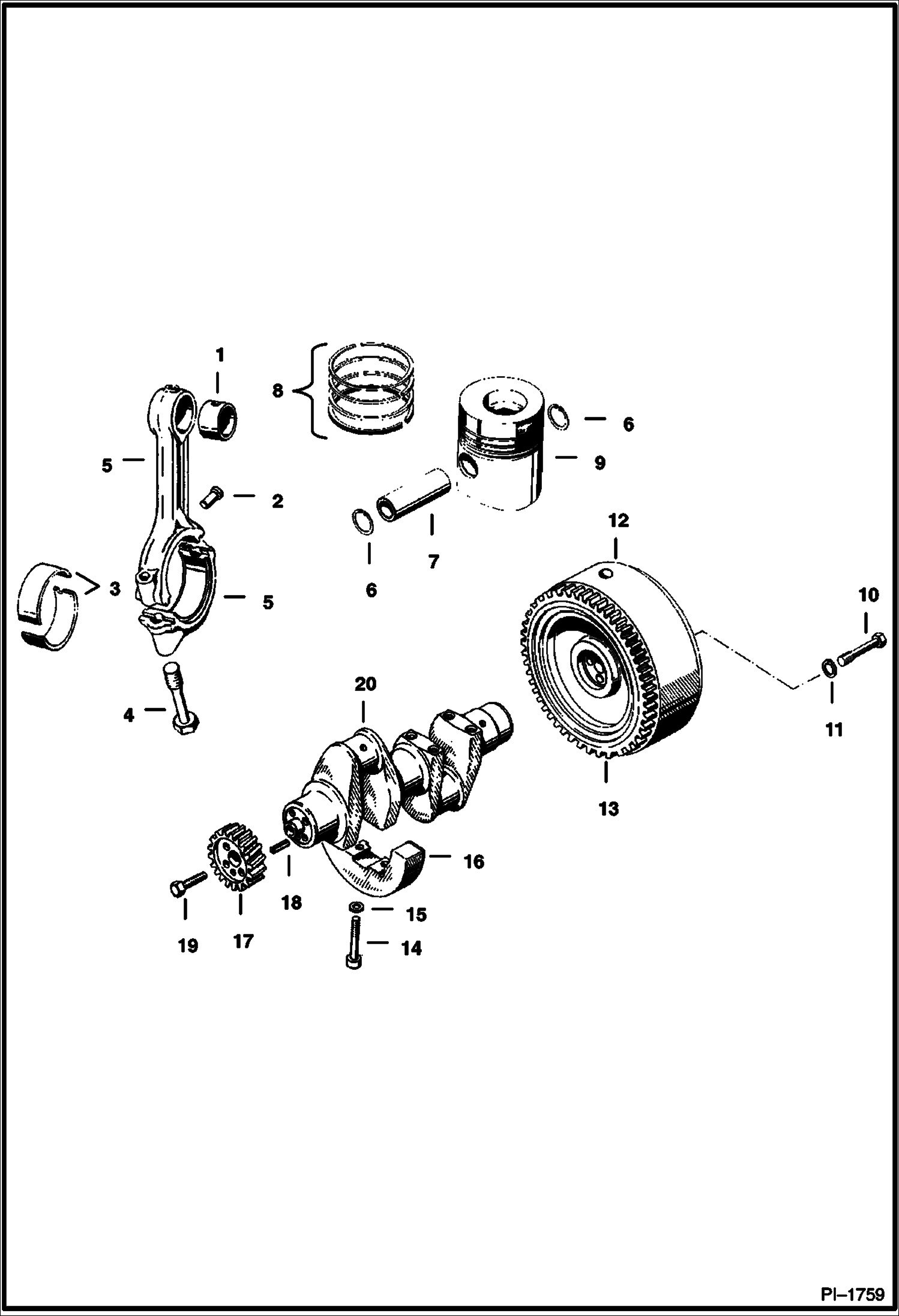

Запчасти Bobcat 600s CRANKSHAFT, PISTON & FLYWHEEL GROUP POWER UNIT

1

6516096

BUSHING wrist pin

2

6516091

PIN

3

6513839

BEARING Std.

3

6513842

BEARING .020'' (0,51 mm)

3

6513870

BEARING .040'' (1,02 mm)

3

6513871

BEARING .060'' (1,53 mm)

4

3CM1050

SCREW

5

ROD NLA - connecting - W/Ref. 1, 2 & 4 - Was 6511610 - A

6

7JM30

CIRCLIP

7

6516100

PISTON PIN piston

8

6516101

RINGS piston - Std.

8

6516102

RINGS piston - .020'' (0,51 mm)

8

6516103

RINGS piston - .040'' (1,02mm)

8

6519273

RINGS piston - Std.

8

6516102

RINGS piston - .020'' (0,51 mm)

8

RINGS NLA - piston - .040'' (1,02 mm) - Was 6519275 - A

9

6516097

PISTON W/Ref. 6-8 - Std.

9

PISTON NLA - W/Ref. 6-8 - .020'' (0,51 mm) - Was 6516098 - A

9

PISTON NLA - W/Ref. 6-8 - .040'' (1,02 mm) - Was 6516099 - A

10

SCREW NLA - Was 6511721 - A

11

6516104

WASHER

12

6502731

FLYWHEEL W/Ref. 13

13

6516106

RING GEAR

14

4GM1040

BOLT

15

6515969

WASHER

16

6516088

COUNTERWEIGHT

17

6516089

GEAR crankshaft

18

1JM6016

PIN

19

4GM1035

BOLT socket head

20

6516087

CRANKSHAFT
