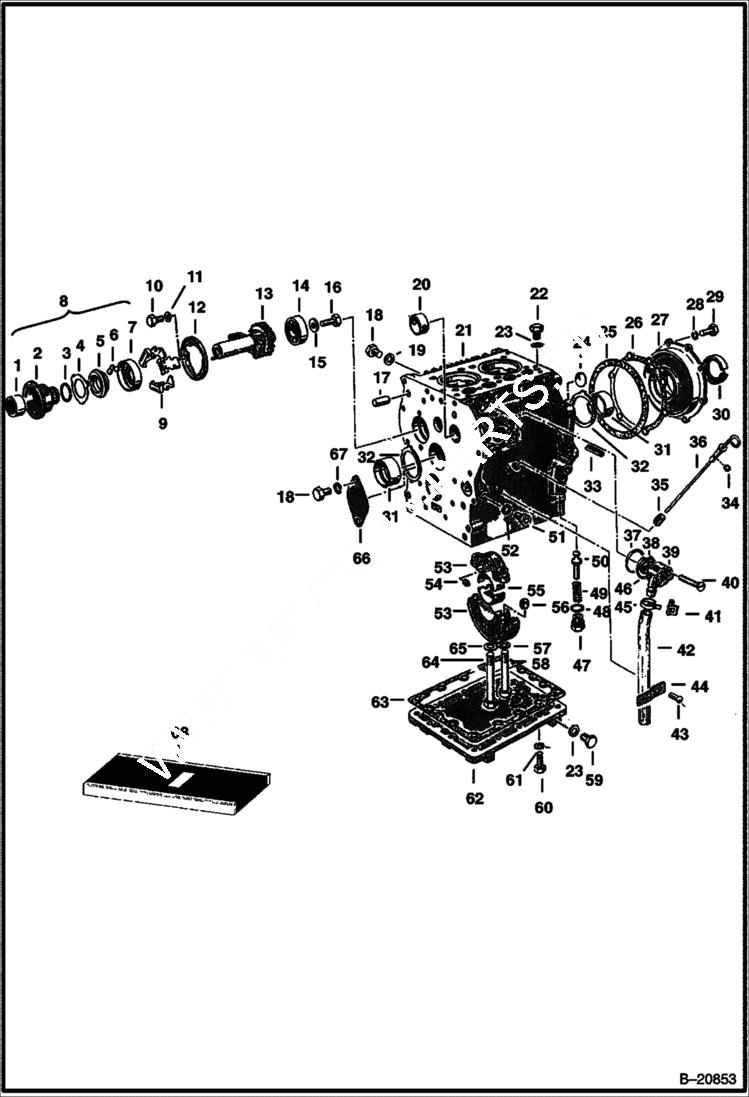

Запчасти Bobcat 600s BLOCK GROUP POWER UNIT

1

BEARING NSS - governor

2

CUP NSS - governor

3

SNAP RING NSS

4

SPACER NSS - governor

5

RACE NSS - inner

6

BALLS NSS - bearing

7

RACE NSS - outer

8

6515992

GOVERNOR Ref. 1 - 7

9

6516019

FLYWEIGHTS governor

10

1CM610

BOLT Was 4CM610 - A

11

8EM80

WASHER governor

12

6513734

PLATE flyweights - Was 6516029 - A

13

6516005

DRIVE governor

14

731237

BEARING ball

15

6516006

WASHER

16

1CM818

BOLT Was 4CM818 - A

17

6515909

DOWEL PIN

18

SCREW NLA - Was 4CM01215B - A

19

2FM12155

WASHER copper

20

6516015

BUSHING camshaft

21

6516016

BLOCK

22

1KM10

PLUG

23

6515942

WASHER aluminum

24

6515967

PLUG block

25

6513845

GASKET Was 6516020 - A

26

6513846

GASKET shim - Was 6516001 - A

27

HOLDER NLA - rear main - Was 6515999 - A

28

6EM60

WASHER, SPRING

29

4CM618

BOLT

30

6516000

SEAL rear main

31

6515955

BEARING main - Std.

31

6515956

BEARING main - .020'' (0,51mm)

31

6515957

BEARING main - .040'' (1,02 mm)

31

6515958

BEARING main - .060'' (1,53 mm)

32

6513748

WASHER thrust - Std. - 0.1181'' (3 mm)

32

6515963

WASHER thrust - 0.1279'' (3,25 mm)

32

6513756

WASHER thrust - 0.1378'' (3,50 mm) - Was 6515964 - A

32

6513757

WASHER thrust - 0.1476'' (3,75 mm)

32

6515966

WASHER thrust - 0.1575'' (4 mm)

33

ROLL PIN NLA - spring - Was 1JM05036B - A

34

6515616

O-RING

35

TUBE NLA - oil dipstick - Was 6505409 - A

36

6515534

DIPSTICK

37

6516712

VALVE breather

38

6516012

O-RING

39

6516711

BREATHER

40

13GM650

SCREW

41

6516714

HOSE CLAMP

42

6516713

HOSE breather

43

PLUG NLA - Was 10JM06010B - A

44

6516021

PLATE

45

6516013

BAND

46

FILTER NLA - Was 6504446 - A

47

6515961

PLUG oil pressure

48

2FM16220

WASHER copper

49

6515960

SPRING oil pressure

50

6515959

VALVE oil pressure

51

6516022

PLUG socket head

52

6513763

WASHER Was 2FM-14180 - A

53

HOLDER NLA - main bearing - Was 6515968 - A

54

DOWEL NLA - Was 6515970 - A

55

6515972

BEARING main - Std.

55

6515973

BEARING main - .020'' (0,51 mm)

55

6515974

BEARING main - .040'' (1,02 mm)

55

6515975

BEARING main - .060'' (1,53 mm)

56

6515971

DOWEL

57

6515969

WASHER

58

4GM1080

BOLT

59

6515991

PLUG oil drain

60

1CM620

BOLT Was 4CM620 - A

61

6515937

WASHER

62

6511833

OIL PAN bottom

63

GASKET NLA - Was 6511834 - A

64

1CM1290

SCREW

65

1EM120

WASHER

66

6516008

PLATE

67

6EM120

WASHER

68

6518524

GASKET KIT overhaul
