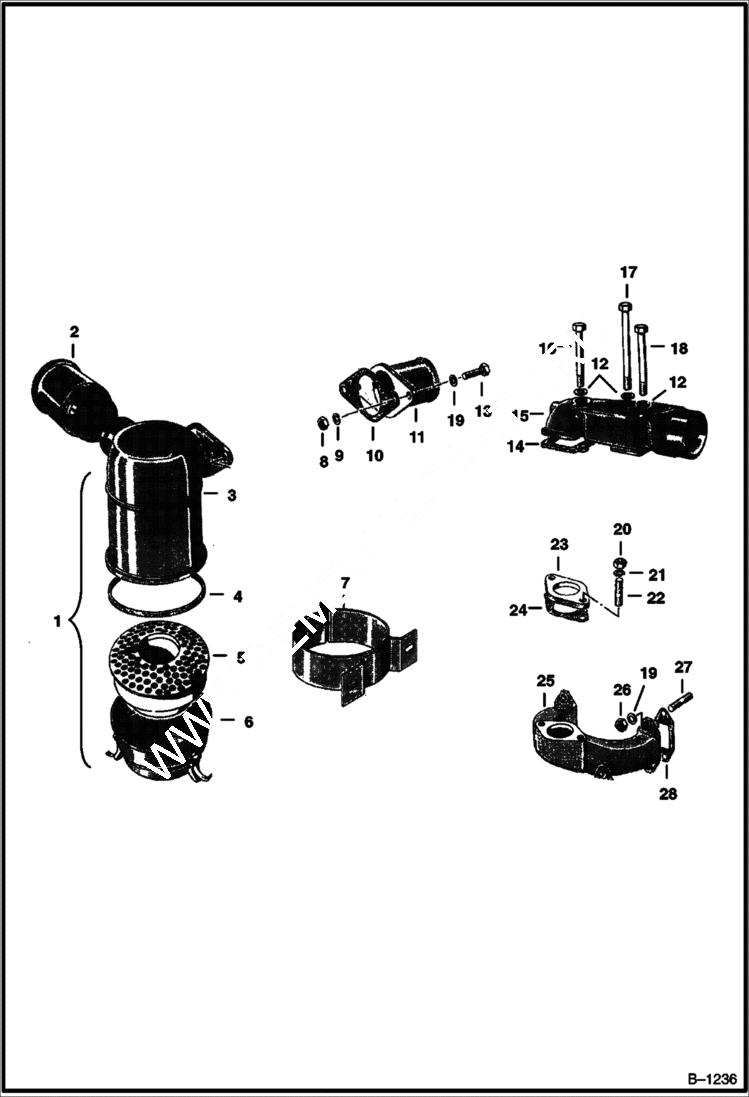

Запчасти Bobcat 600s AIR CLEANER & MANIFOLD POWER UNIT

1

6515917

AIR CLEANER

2

6516146

PRECLEANER

3

BODY NLA

4

6516139

GASKET

5

6516140

SCREEN

6

6516138

POT

7

6516143

BRACKET

8

1DM8

NUT

9

6EM80

WASHER, SPRING

10

6516142

GASKET

11

6517842

FLANGE

12

6517841

WASHER

13

1CM820

BOLT Was 4CM820 - A

14

6516718

GASKET rubber - Rear

14

GASKET NLA - paper - front - Was 6667865 - A

15

6516717

MANIFOLD intake

16

13GM8090

SCREW manifold

17

SCREW NLA - Was 6501886 - A

18

1CM8100

SCREW manifold

19

1EM80

WASHER

20

1DM10

NUT Brass

21

6EM100

WASHER

22

6515929

STUD

23

6515952

FLANGE

24

6541299

GASKET Was 6515953 - A

25

MANIFOLD NLA - exhaust - Was 6516151 - A

26

3725269

NUT brass

27

6515928

BOLT

28

4110763

GASKET
