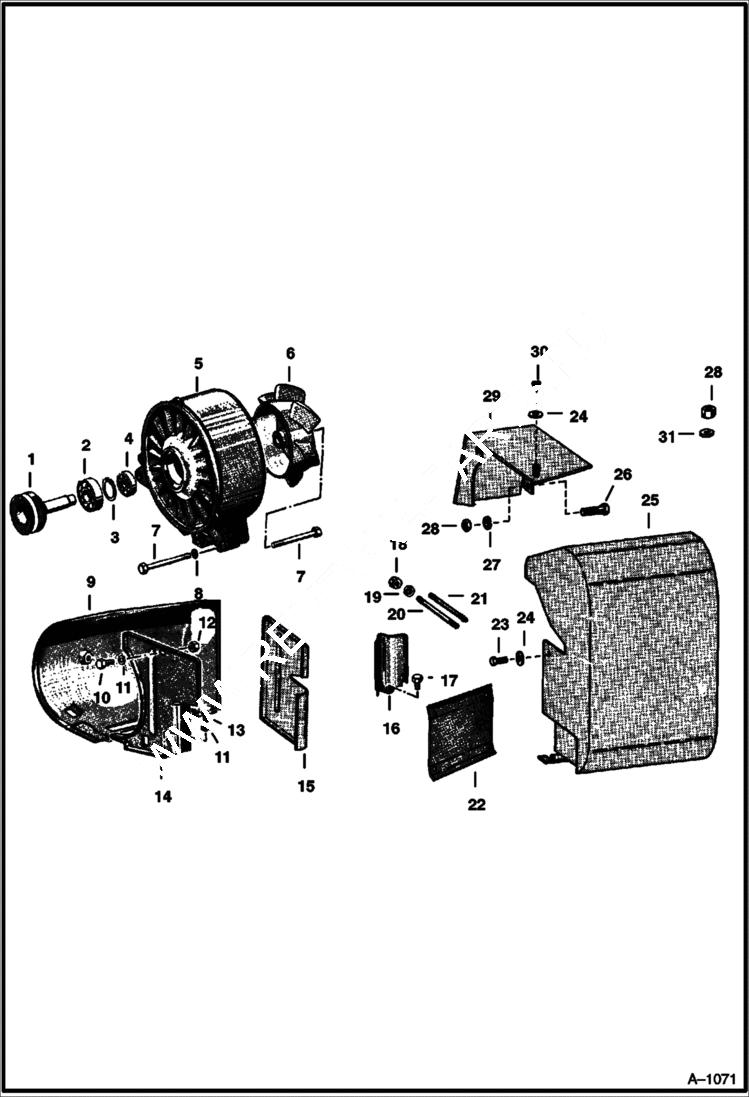

Запчасти Bobcat 600s AIR BLOWER & SHROUD POWER UNIT

1

6516132

PULLEY

2

6516127

BEARING ball

3

7JM32

SNAP RING

4

6516128

BEARING ball

5

6511364

BLOWER complete - Ref. 1 - 8

6

FAN NLA - Blower - Was 6511366 - A

7

1CM880

BOLT

8

1EM80

WASHER

9

6517839

SHROUD

10

1CM612

BOLT Was 4CM612 - A

11

6EM60

WASHER, SPRING

12

1DM6

NUT

13

13GM6010

SCREW

14

6517840

SHIELD

15

PLATE NLA - rear - Was 6511367 - A

16

6516129

SHIELD liners

17

1CM610

BOLT Was 4CM610 - A

18

NUT Was 13DM6 - A

19

1EM60

WASHER

20

6515926

STUD air cowling

21

6515925

STUD air cowling

22

6516130

BAFFLE air deflection

23

1CM620

BOLT Was 4CM620 - A

24

25E13

WASHER 5

25

6501883

SHROUD air

26

17C624

BOLT 5

27

4E6

WASHER

28

61D6

NUT 5

29

SHIELD NLA - variable speed - Was 6501501 - A

30

61D4

NUT 5

31

25E17

WASHER 5
