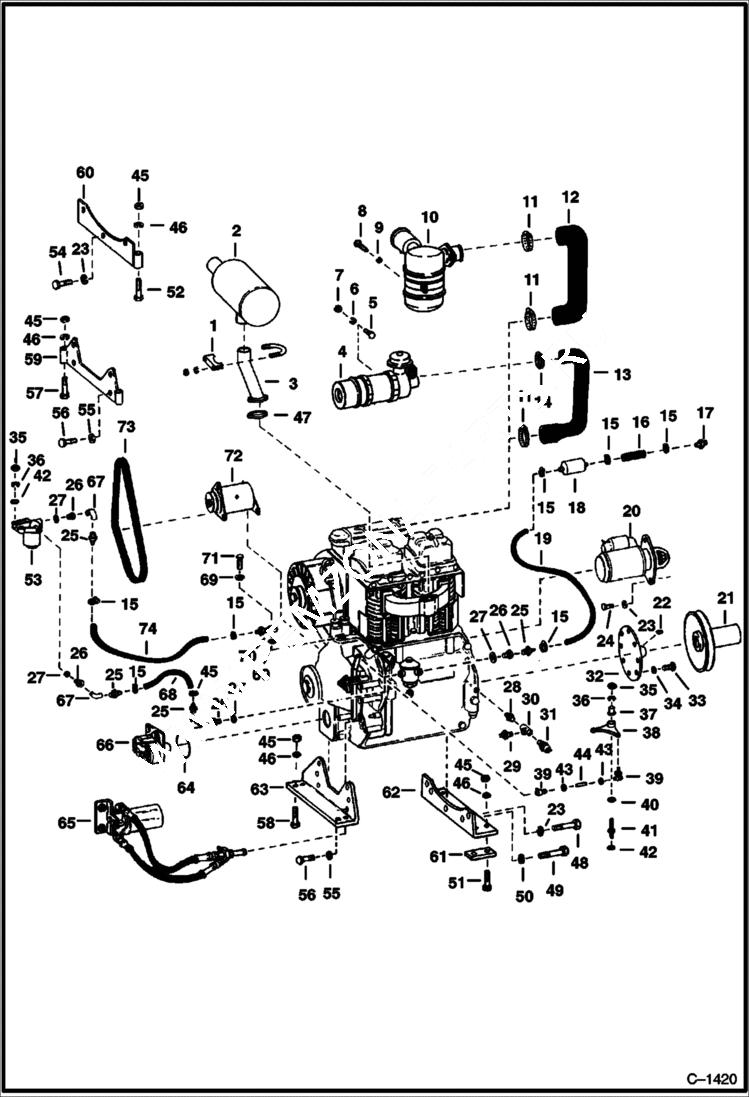

Запчасти Bobcat 600s ENGINE ATTACHING PARTS Deutz POWER UNIT

1

CLAMP NLA - muffler - Was 730146 - A

2

6519594

MUFFLER, EXHAUST Standard

2

6515470

MUFFLER Use W/Farr Air Cleaner

3

6501885

PIPE exhaust

4

6518192

AIR CLEANER See Illustration AIR CLEANER/ B20846 donaldson

5

17C512

BOLT 5

6

4E5

WASHER

7

61D5

NUT

8

1CM820

BOLT Was 4CM820 - A

9

6EM80

WASHER, SPRING

10

6515917

AIR CLEANER See Illustration AIR CLEANER & MANIFOLD/ B1236 Deutz

11

44H48

CLAMP Was 6515576 - A

12

HOSE NLA - Duetz Air Cleaner - Was 6503467 - A

13

HOSE NLA - Donaldson & Farr Air Cleaner - Was 6503408 - A

14

42H32

HS CLAMP5

15

42HS04

CLAMP, HOSE Was 6515575 - A

16

6543844

HOSE fuel

17

6505813

CONNECTOR barbed

18

6511393

FILTER

19

6503368

HOSE fuel

20

See Illustration BOSCH STARTER/ B20825A See Illustration BOSCH STARTER/ B20825 WAS 6518187 - A

21

SHEAVE See Illustration VARIABLE SPEED DRIVE SHEAVE/ C1598 See Illustration VARIABLE SPEED DRIVE SHEAVE/ C1242 See Illustration VARIABLE SPEED DRIVE SHEAVE/ C1342

22

5J808

KEY woodruff

23

6EM120

WASHER

24

1CM1225

BOLT Was 4CM1225 - A

25

6515159

INSERT

26

6505027

ADAPTER

27

6513763

WASHER fuel pump - Was 2FM-14180 - A

28

ADAPTER NLA - Was 663365B - A

29

1550963

SWITCH hour meter

30

TEE NLA - brass - Was 854347 - A

31

6515752

SWITCH oil pressure

32

PLATE NLA - adapter - .8125'' (20,64 mm) OD Tapered End - Order 6501608 & 6502035

32

6501608

PLATE adapter - 1.25'' (31,75 mm) OD Tapered End

33

17C616

BOLT 5

34

6E6

WASHER shakeproof

35

61D6

NUT 5

36

4E6

WASHER

37

6515202

BUSHING

38

ARM NLA - pivot, throttle - Was 6503377 - A

39

6515194

BALL JOINT

40

25E21

WASHER 5

41

SCREW NLA - Was 6504736 - A

42

25E17

WASHER 5

43

14D10

NUT

44

6551395

ROD

45

61D10

NUT

46

4E10

WASHER

47

6541299

GASKET

48

1CM1245

BOLT 5 Was 4CM1245 - A

49

4CM1040

SCREW

50

6EM100

WASHER

51

17C1032

BOLT

52

17C1048

BOLT

53

6505433

FILTER See Illustration FUEL SYSTEM/ A1070

54

1CM1235

BOLT Was 4CM1235 - A

55

6EM140

WASHER

56

1CM1440

BOLT Was 4CM1440 - A

57

17C1064

BOLT 5

58

1CM1450

BOLT Was 4CM1450 - A

59

MOUNT NLA - engine - right - Was 6501444 - A

60

NLA - engine - left - Was 6501445 - A

61

6547846

BLOCK support

62

6547842

MOUNT engine - Left

63

6547840

MOUNT engine - Right

64

6515913

O-RING

65

KIT See Illustration FULL FLOW OIL FILTER/ B1263 filter conversion

66

MOUNTING See Illustration HYDRAULIC PUMP MOUNTING/ B1238 pump

67

ELBOW NLA - street - Was 620558B - A

68

6503369

HOSE fuel

69

2FM12155

WASHER copper

70

6511033

CONNECTOR

71

6666396

SCREW Bored - Was 6514745 - A

72

ALTERNATOR See Illustration DELCO ALTERNATOR MOUNTING/ B1290 See Illustration LUCAS ALTERNATOR MOUNTING/ B1246

73

V-BELT NLA - Generator - Was 6516164 - A

74

6503404

HOSE
