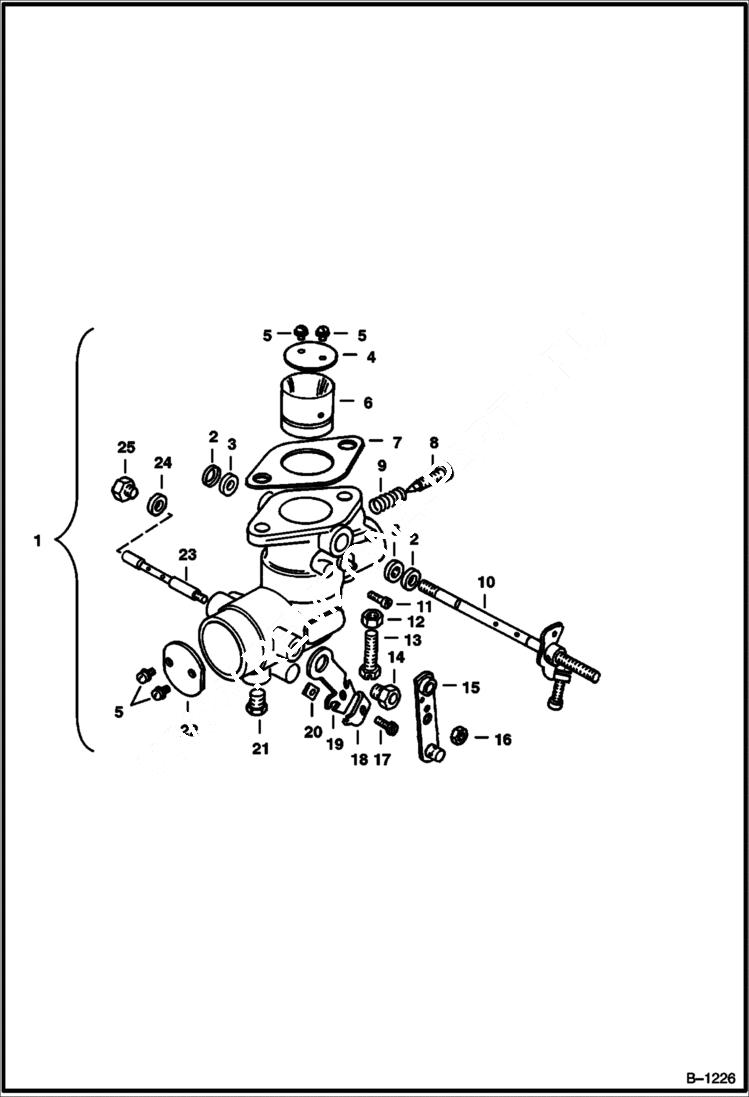

Запчасти Bobcat 600s LPG CARBURETOR Zenith No. 12192 POWER UNIT

1

CARBURETOR NLA

2

RETAINER Was 884424B - A

3

SEAL NLA - Was 871547B - A

4

VENTURI NSS

5

SCREW NSS

6

868454

PLATE throttle

7

6516398

GASKET

8

NEEDLE NLA - idle adjustment - Was 877884B - A

9

866397

SPRING

10

6516605

SHAFT W/lever

11

6516606

SCREW Venturi

12

8D5

NUT

13

NEEDLE NSS - main adjustment

14

SCREW NSS

15

LEVER NLA - choke - Was 882619B - A

16

14D8

NUT

17

SCREW NSS

18

CLAMP NSS

19

882634

BRACKET W/Ref. 17, 18 & 20

20

NUT NSS

21

6659543

PLUG 1/8'' (3,18 mm) Brass - Was 850272B - A

22

6516607

PLATE choke

23

877886

SHAFT choke

24

WASHER NSS - Was 892810B - A

25

PLUG NSS
