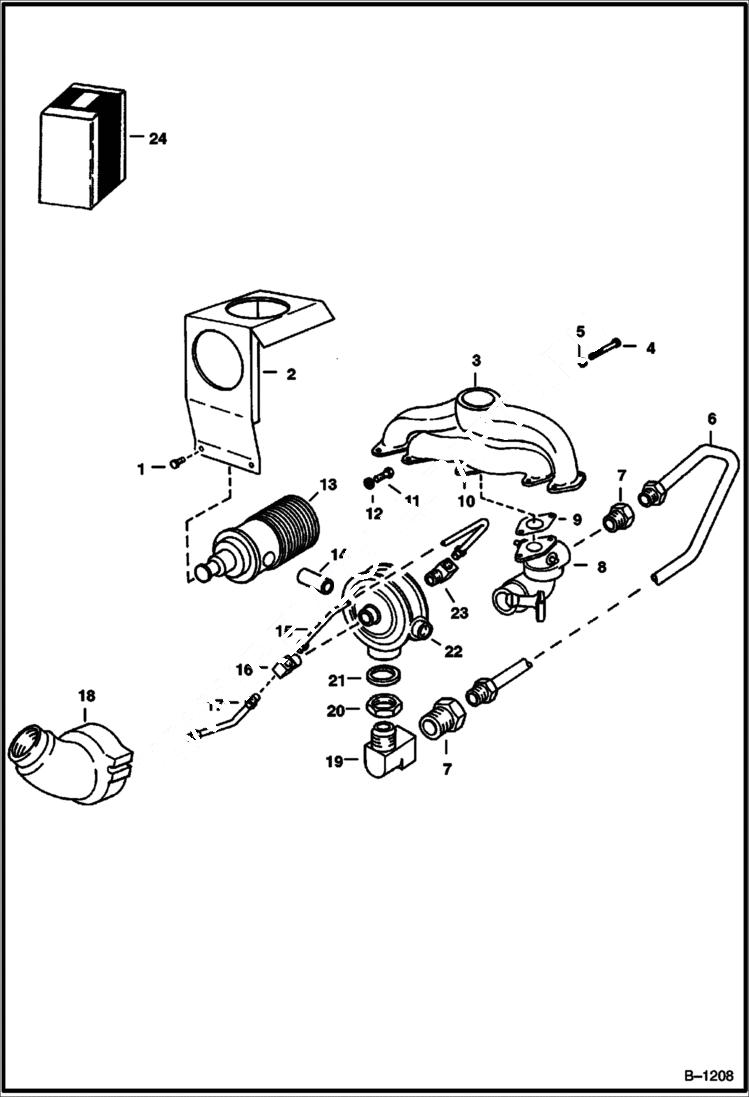

Запчасти Bobcat 600s LP GAS GROUP VF4D POWER UNIT

1

6516409

SCREW

2

6516410

DEFLECTOR heat

3

MANIFOLD NLA - exhaust - Order 6516397 & Saw Intake & Exhaust apart - Was 6516411 - A

4

SCREW NLA - Was 47G000432B - A

5

4E4

WASHER

6

6516414

FUEL LINE

7

6516415

CONNECTOR

8

CARBURETOR See Illustration LPG CARBURETOR/ B1226 NLA

9

6516398

GASKET

10

6516418

MANIFOLD intake

11

6516419

BOLT

12

4E6

WASHER

13

VAPORIZER See Illustration LPG VAPORIZER/ B1225 NLA - Was 6516421 - A

14

NIPPLE NLA - Was 5K000207B - A

15

6516422

LINE balance

16

TEE NLA - Was 63F000001B - A

17

6501894

LINE air

18

HORN NLA - Air - Was 6516395 - A

19

43F7

ELBOW

20

NUT NLA - Was 6516424 - A

21

6516425

GASKET

22

REGULATOR See Illustration SECONDARY STAGE REGULATOR/ B1224

23

6516427

ELBOW

24

KIT NLA - LP Gas conversion - Ref. 1, 2 & 6-23 - Order Governor Control Kit 6519430 to complete conversion - Was 6519193 - A
