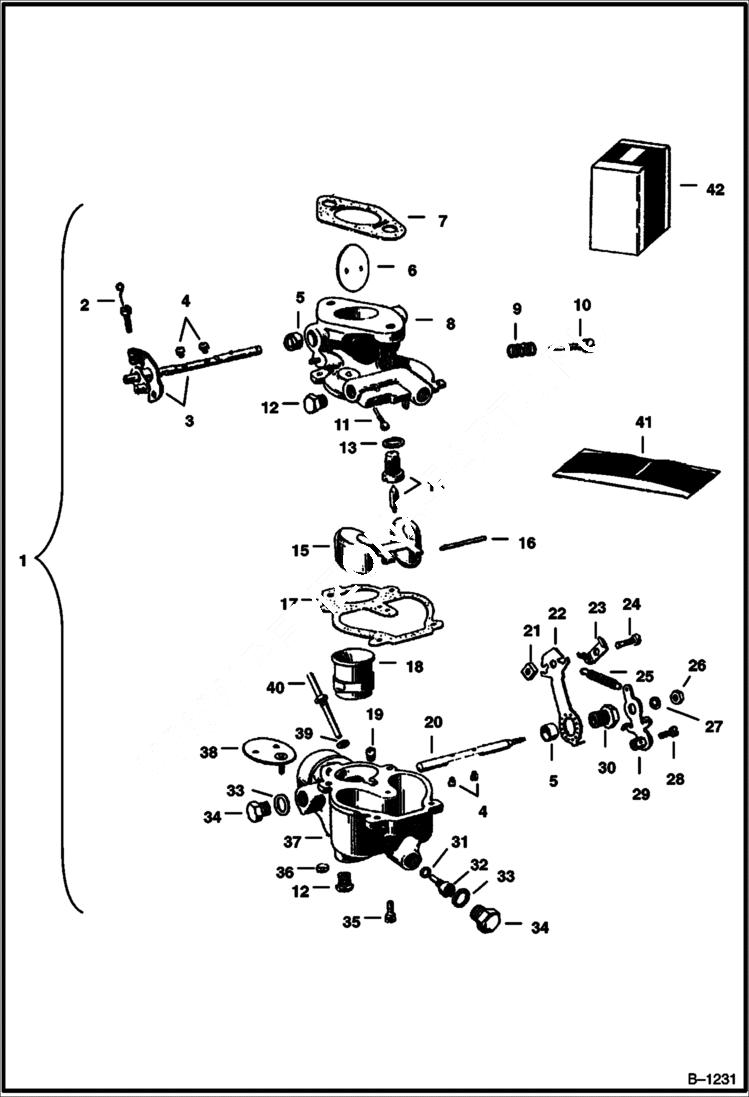

Запчасти Bobcat 600s CARBURETOR Zenith No. 13271 POWER UNIT

1

CARBURETOR NLA - Order 6516590 Carburetor & 6516394 Horn

2

42G1016

10 SCREWS

3

6516580

SHAFT W/lever

4

SCREW NSS

4

WASHER NLA - Was 17E000004B - A

5

SEAL NSS

6

868454

PLATE throttle

7

6516398

GASKET flange

8

BODY NSS - throttle

9

850011

SPRING

10

NEEDLE NSS - idle adjusting

11

JET NSS - idle

12

40K2

PLUG

13

WASHER NSS

14

VALVE NSS - W/seat

15

852273

FLOAT

16

AXLE NSS - float

17

GASKET NSS

18

6516585

VENTURI

19

JET NLA - well vent - Was 854609B - A

20

SHAFT NLA - Choke - Was 6516586 - A

21

NUT NSS

22

BRACKET NSS - choke

23

647359

CLIP

24

42G1016

10 SCREWS

25

853577

SPRING

26

14D8

NUT

27

17E10

WASHER

28

SCREW NLA - Was 45G000807B - A

29

852287

LEVER choke

30

SCREW NSS

31

WASHER NSS

32

6516587

JET main

33

WASHER NSS

34

PLUG NLA - Was 852279 - A

35

42G1010

SCREW

35

17E10

WASHER

36

871569

DISK

37

BOWL NLA - fuel

38

PLATE NLA - choke - Was 850024B - A

39

WASHER NLA - Was 850842B - A

40

JET NLA - discharge - Was 898215B - A

41

850018

GASKETS Ref. 13, 17, 31, 33 & 39

42

898208

REP KIT Ref. 5, 7, 10, 11, 13, 14, 16, 17, 31 & 33 - Was 6516589 - A
