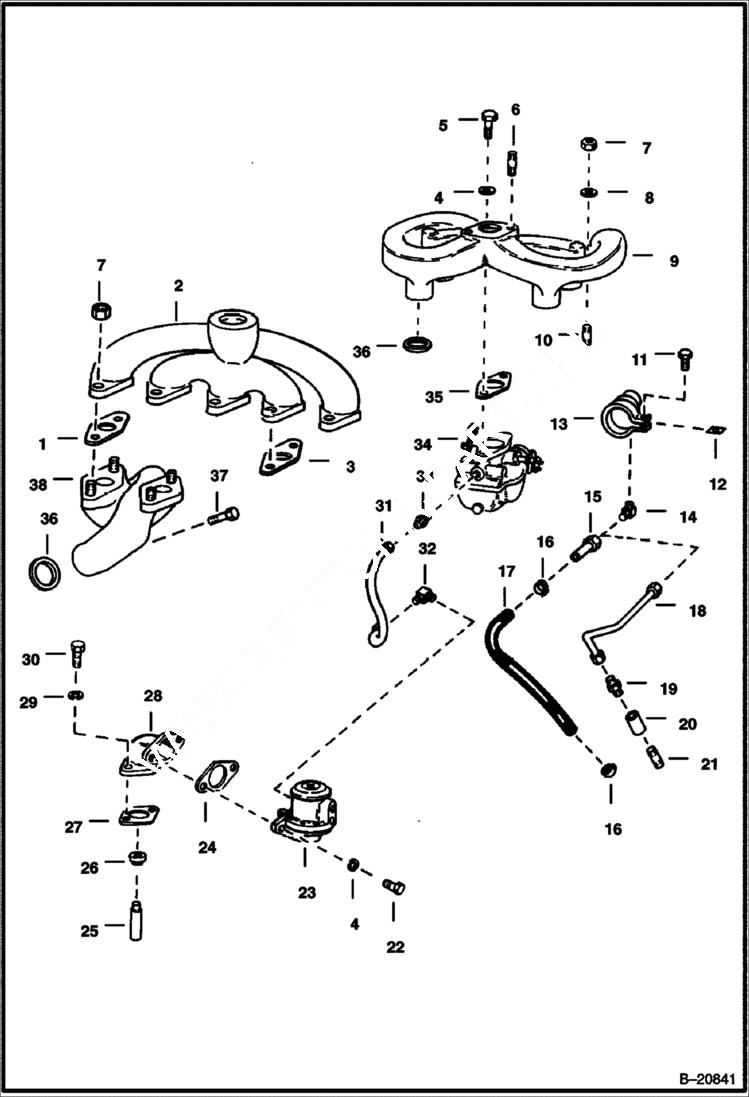

Запчасти Bobcat 600s GASOLINE FUEL SYSTEM & EXHAUST GROUP POWER UNIT

1

6516396

GASKET VF4D Engine

2

MANIFOLD NLA - VF4D Engine - Was 6516397 - A

3

6516399

GASKET VF4D engine

4

4E5

WASHER

5

17C516

BOLT

6

6516401

STUD

7

6515897

NUT

8

23E6

WASHER

9

6516404

MANIFOLD VH4D engine

10

6516407

STUD VH4D engine

10

6516406

STUD VF4D engine

11

17C420

BOLT

12

6516408

GASKET

13

6516394

HORN air - 1-5/8'' (41,28 mm) I.D. - O.D. of carburetor

13

HORN NLA - Air - 1.5'' (38,1 mm) I.D. - O.D. of Carburetor - Was 6516395 - A

14

6516393

ELBOW

15

6516392

ADAPTER

16

42HS04

CLAMP, HOSE Was 6515575 - A

17

6516391

HOSE breather

18

LINE NLA - breather - Was 6516389 - D

19

38F7

CONNECTR

20

6516390

ADAPTOR

21

NIPPLE NLA - Was 5K108 - A

22

17C512

BOLT 5

23

6516374

FUEL PUMP

23

KIT NSS - Low Dome Pumps

23

KIT NLA - High Dome LP-38-S1 Obsolete Pumps - Was 6516388 - A

24

6516381

GASKET

25

6516385

PLUNGER VH4D engine - Requires Ref. 26 When Replacing

25

6516384

PLUNGER VF4D engine - Requires Ref. 26 When Replacing

26

6516386

CAP plunger

27

6516382

GASKET

28

6516380

ADAPTER W/primer VH4D engine

28

6516379

ADAPTOR W/primer VF4D engine

29

4E4

WASHER

30

17C412

BOLT 5

31

6516373

TUBE VH4D engine

31

6516373

TUBE VF4D engine - Was 6516372 - D

32

42F3

FTG

33

6515222

ADAPTER

34

6516590

CARBURETOR See Illustration CARBURETOR/ B1231 See Illustration CARBURETOR/ B20842

35

6516398

GASKET

36

6516405

GASKET

37

17C408

BOLT VF4D Engine

38

6516403

MANIFOLD VF4D engine - W/Studs
