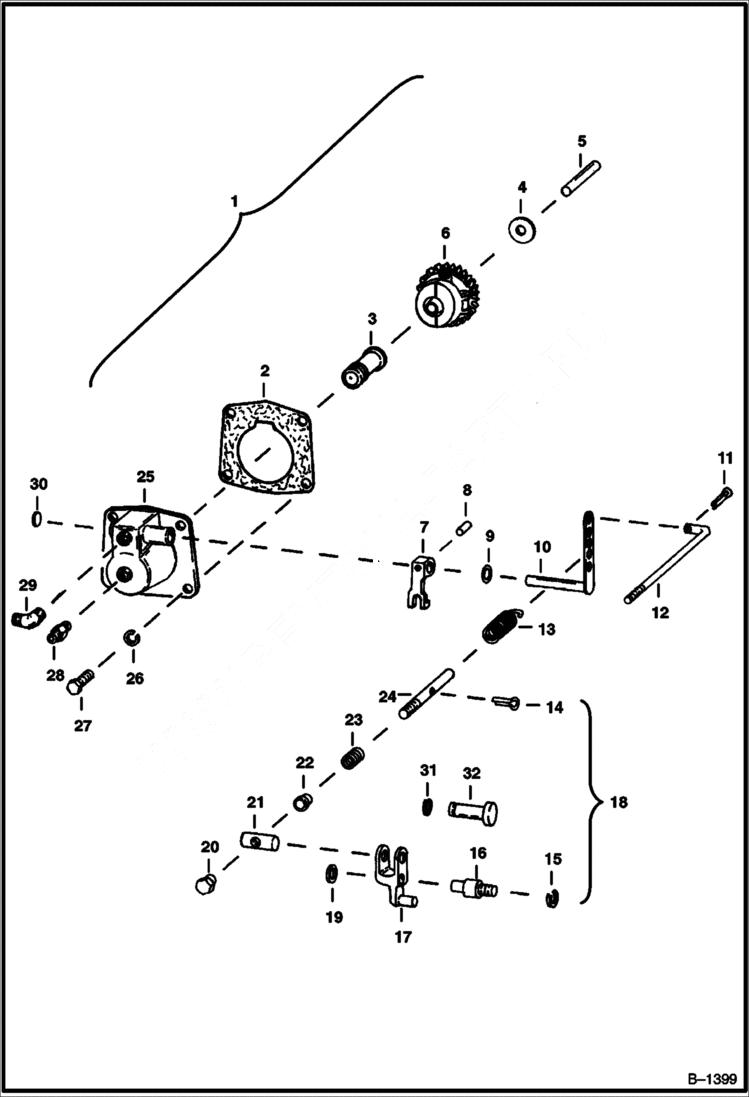

Запчасти Bobcat 600s GOVERNOR & CONTROL POWER UNIT

1

GOVERNOR NLA - Ref. 2 - 13 & 25 - 30 - Order 6512329 - Was 6510833 - A

2

6516617

GASKET

3

6512392

SLEEVE Was 6516620 - A

4

WASHER NSS

5

6516626

SHAFT

6

6516627

FLYWEIGHT assy. - W/Ref. 4

7

YOKE NSS

8

6516619

PIN

9

6516612

SEAL oil

10

SHAFT NLA - control - Order 6512329 - Was 6516611 - A

11

6516613

PIN

12

6516614

ROD

13

6516610

SPRING

14

1F208

PIN

15

4E4

WASHER

16

6516629

PIN

17

6516630

LEVER

18

6516628

CONTROL governor - Ref. 14 - 24

19

25E15

WASHER

20

6516631

NUT

21

6516632

PIN

22

6516633

RETAINER

23

6516634

SPRING

24

6516635

SCREW adjusting

25

HOUSING NLA - Was 6512393 - A

26

4E5

WASHER

27

BOLT NLA - Was 47G000514B - A

28

6515221

ADAPTER straight

29

16F2

PLUG pipe

30

PLUG NSS - expansion

31

6652920

CLIP

32

6652919

PIN
