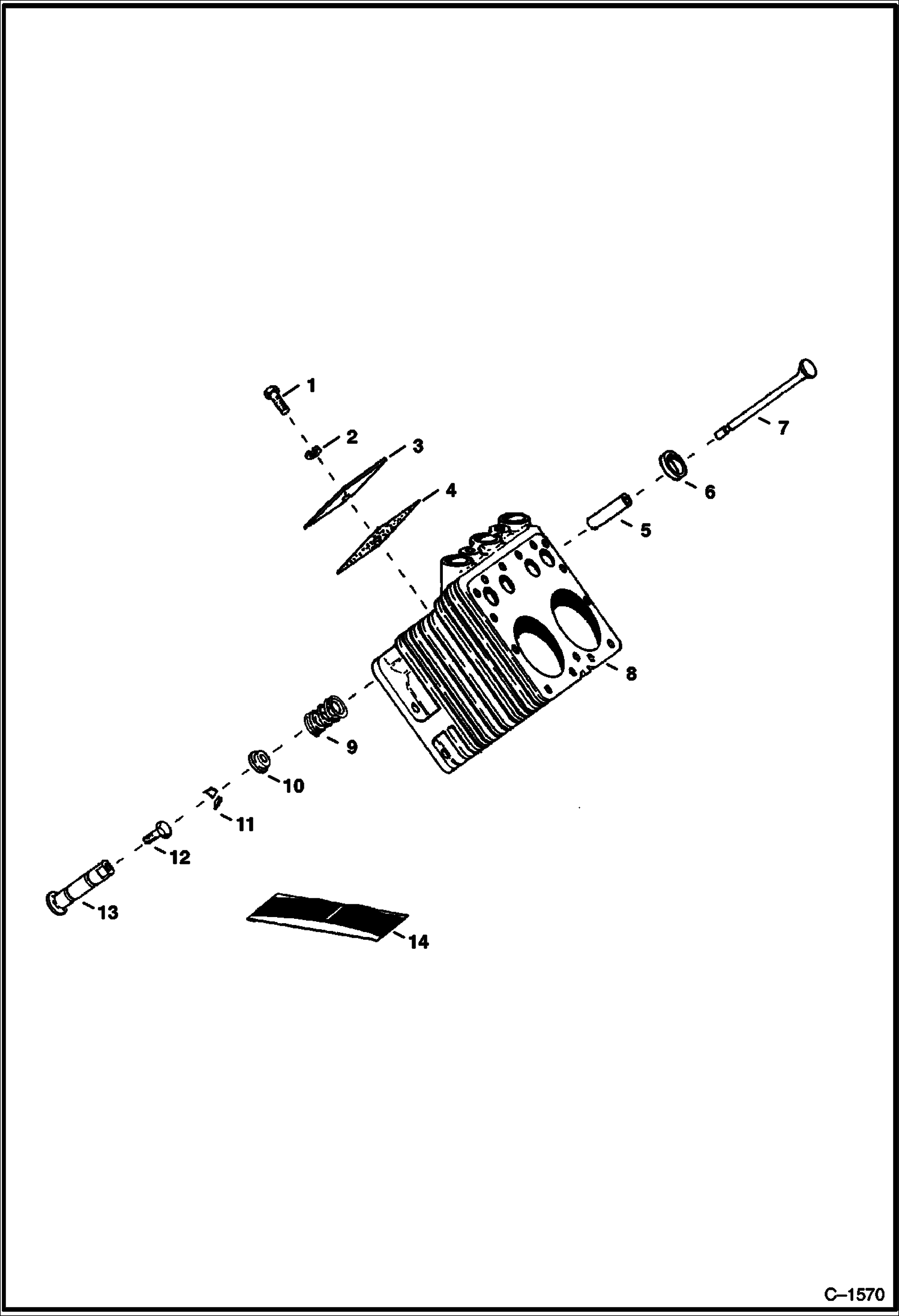

Запчасти Bobcat 600s CYLINDER & VALVES POWER UNIT

1

17C516

BOLT

2

6516500

WASHER

3

6516499

COVER plate

4

6516498

GASKET4

5

6514845

GUIDE valve - Was 6516495 - A

6

6516493

SEAT valve - Intake

6

6516494

SEAT valve - Exhaust - Stellite

7

VALVE NLA - Intake - Was 6516491 - A

7

6516492

VALVE exhaust - Stellite

8

6516497

BLOCK VH4D engine - Ref. 1 - 13

8

6516496

BLOCK VF4D engine - Ref. 1 - 13

9

6516501

SPRING Intake

9

6516502

SPRING Exhaust

10

6516503

RETAINER valve spring

10

6516504

ROTATOR Exhaust

11

6516505

LOCK

12

6516506

BOLT

13

6516507

TAPPET W/Ref. 12

14

6516508

GASKET SET valve grind
