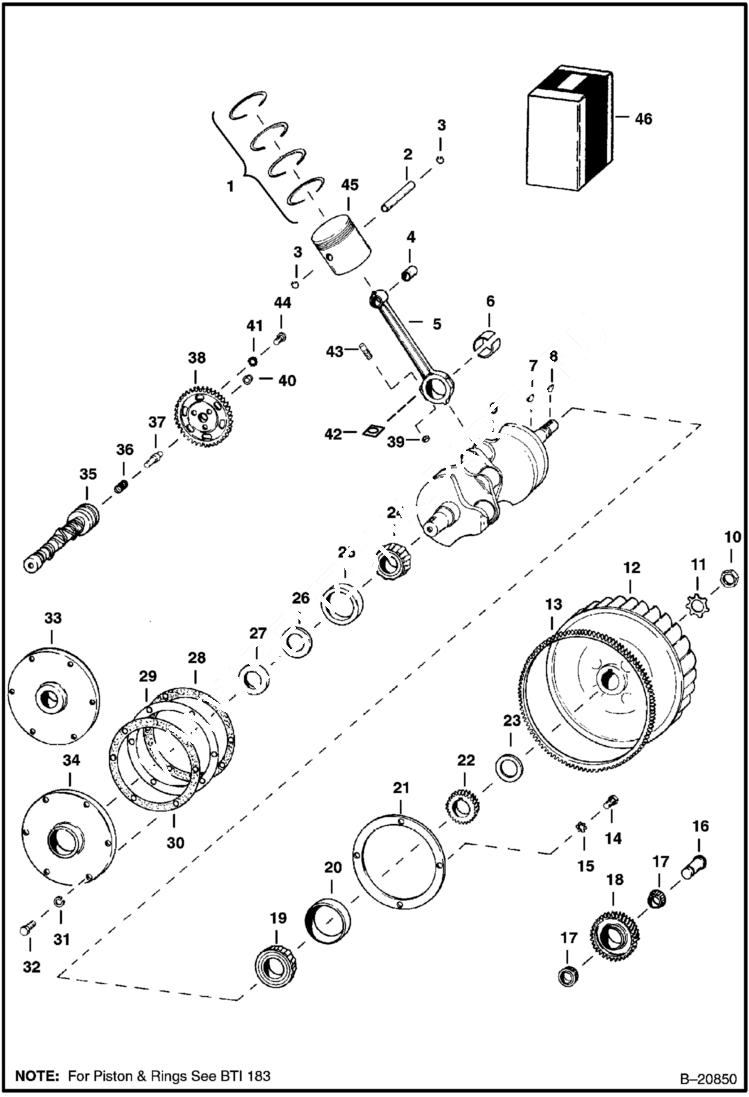

Запчасти Bobcat 600s INTERNAL ENGINE GROUP POWER UNIT

1

6516464

RINGS Std.

1

RINGS NLA - .010 (0,25mm) - 4 ring - complete engine - Was 6516465 - A

1

6516466

RINGS .020'' (0,51mm)

1

6516467

RINGS .030'' (0,76mm)

1

6516468

RINGS trichrome - std

1

6516469

RINGS Trichrome - .010'' (0,25mm)

1

6516470

RINGS Trichrome - .020'' (0,51mm) - Complete Set

1

6516471

RINGS trichome - .030 (0,76mm)

1

6630712

SET RINGS See BTI218 Std. 4 Ring

1

6630713

SET RINGS See BTI218 .010'' (0,25 mm) - 4 Ring - Two Ring Sets

1

6630714

SET RINGS See BTI218 .020'' (0,51 mm) - 4 Ring - Two Ring Sets

1

6630715

SET RINGS See BTI218 .030'' (0,76 mm) - 4 Ring - Two Ring Sets

2

6516476

PIN piston - Std.

2

PIN NLA - Piston - .005'' (0,13 mm) - Was 6517473 - A

2

6517474

PIN piston - .010'' (0,25 mm)

3

6516463

RETAINER

4

6516462

BUSHING

5

6517472

ROD VH4D engine - W/Ref. 4, 39 & 43

5

6516485

ROD VF4D engine - W/Ref. 4, 39 & 43

6

6517475

BEARING VH4D engine - Std. - 1 Bearing

6

6516486

BEARING VF4D engine - Std.

6

BEARING NLA - VH4D Engine - .001'' (0,03 mm) - 1 Bearing - Was 6517476 - A

6

6516487

BEARING VF4D engine - .001'' (0,03 mm)

6

BEARING NLA - VH4D engine - .002'' (0,05 mm) - Was 6517477 - A

6

6516488

BEARING VF4D engine - .002'' (0,05 mm)

6

6517478

BEARING VH4D engine - .010'' (0,25 mm)

6

6516489

BEARING VF4D engine - .010'' (0,25 mm)

6

6517479

BEARING VH4D engine - .020'' (0,51 mm)

6

6516490

BEARING VF4D engine - .020'' (0,51 mm)

7

KEY NLA - woodruff - Was 6J506 - A

8

6J1011

KEY

9

CRANKSHAFT NLA - VH4D engine - Was 6510277 - A

9

CRANKSHAFT NLA - VF4D engine - Was 6516453 - A

10

6516449

NUT

11

6516448

WASHER

12

FLYWHEEL See Illustration FLYWHEEL ALTERNATORS/ B1220 NLA - W/Ref. 13 - Older Models W/Flywheel Alternator - Was 6510871 - A

13

6516682

RING GEAR

14

7G512

SCREW

15

6E5

WASHER

16

6516523

STUD idler gear

17

6517514

BEARING

18

6660248

GEAR idler

19

6516452

BEARING front - W/Ref. 20

20

CUP NSS - bearing

21

6516525

PLATE bearing retainer

22

6516451

GEAR crankshaft

23

6516450

SLINGER oil

24

872144

BEARING rear - W/Ref. 25

25

CUP NSS - bearing

26

6516454

RETAINER

27

6516455

SEAL oil - W/Ref. 33

27

6511309

SEAL oil - W/Ref. 34

28

6516456

GASKET

29

6516457

SHIM

30

6516458

GASKET

31

4E6

WASHER

32

17C620

BOLT

33

PLATE NLA - main bearing

34

6511300

PLATE main bearing

35

6516517

CAMSHAFT VH4D engine

35

6516516

CAMSHAFT VF4D engine

36

6516518

SPRING

37

6516519

PLUNGER thrust

38

6516520

GEAR camshaft

39

86D5

NUT

40

6516522

BUTTON

41

6516521

WASHER

42

6516460

SHIM

43

6516461

BOLT

44

17C516

BOLT

45

6630708

PISTON - W/Pin Std. - Was 6516472 - A

45

6630709

PISTON - W/Pin .010 (0,25mm) - ring - Was 6516473 - A

45

6630710

PISTON - W/Pin .020 (0,51mm) - 4 Ring - Was 6516474 - A

45

PISTON - W/PIN NLA - .030'' (0,76 mm) - Was 6516475 - A

45

6630708

PISTON - W/Pin See BTI218 Std. 4 Ring

45

6630709

PISTON - W/Pin See BTI218 .010'' (0,25 mm) 4 Ring

45

6630710

PISTON - W/Pin See BTI218 .020'' (0,51mm) 4 Ring

45

6630711

PISTON - W/Pin See BTI218 .030'' (0,76 mm) 4 Ring

46

6516524

GEAR KIT Ref. 16 - 18
