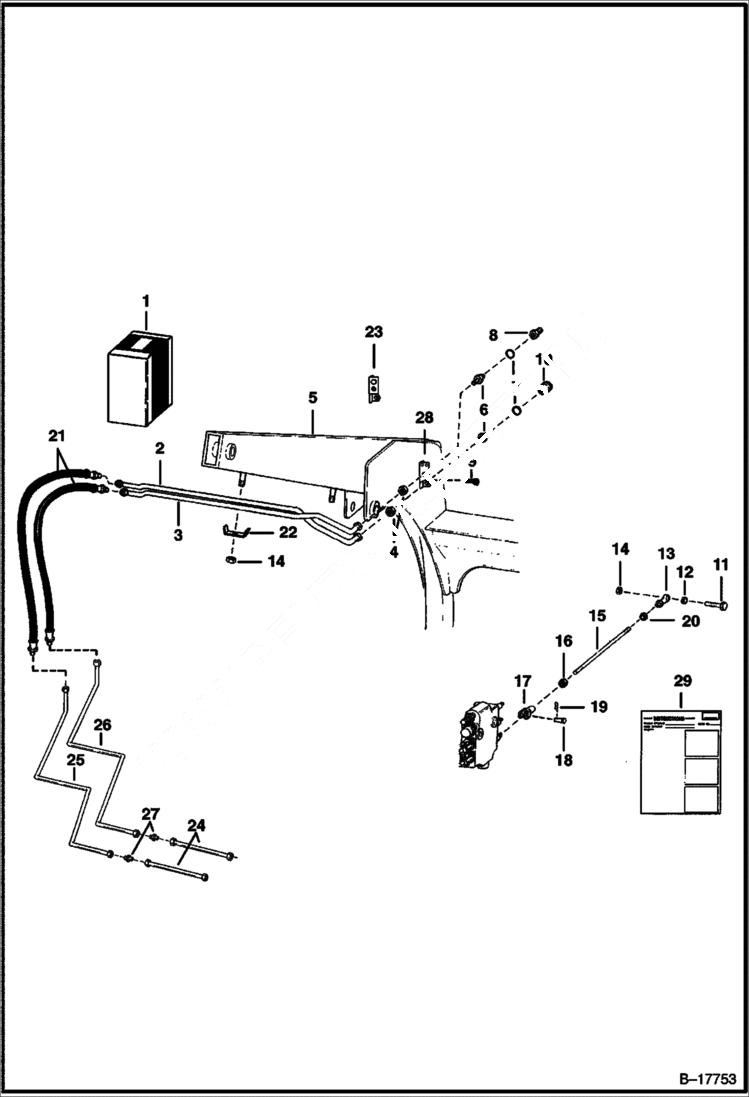

Запчасти Bobcat 500s AUXILIARY HYDRAULICS KIT (S/N 513012129 - 513030999, S/N 513032306 & Above) ACCESSORIES & OPTIONS

1

6711827

KIT Aux. Hyd. - Ref. 2-4, 6-28

2

6711777

TUBE

3

6711776

TUBE

4

86F7

LOCK NUT

5

LIFT ARM See Illustration LIFT ARMS & BOB-TACH/ B17712

6

6711625

FITTING

7

79K12

O RING 10

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

84G3112

BOLT 5

10

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

11

17C620

BOLT

12

6564535

SPACER

13

6512955

SWIVEL L.H. threads

14

95D6

NUT Was 91D-6 - A

15

6567057

ROD

16

8D6

NUT 5

17

6564655

CLEVIS

18

PIN NLA - Was 6564654 - A

19

6513495

COTTER PIN

20

13D6

NUT

21

6558484

HOSE

22

6502203

CLAMP

23

MOUNT NLA - Order Ref. 28 - Was 6711672 - A

24

6709866

TUBE

25

6709867

TUBE

26

6709868

TUBE

27

87F6

FITTING Flat Boss Face

27

87F6

FITTING Tapered Boss Face - Was 87FN00006B - A

27

97K8

O-RING Flared End

28

6713850

MOUNT

29

6724257

INSTRUCTIONS
