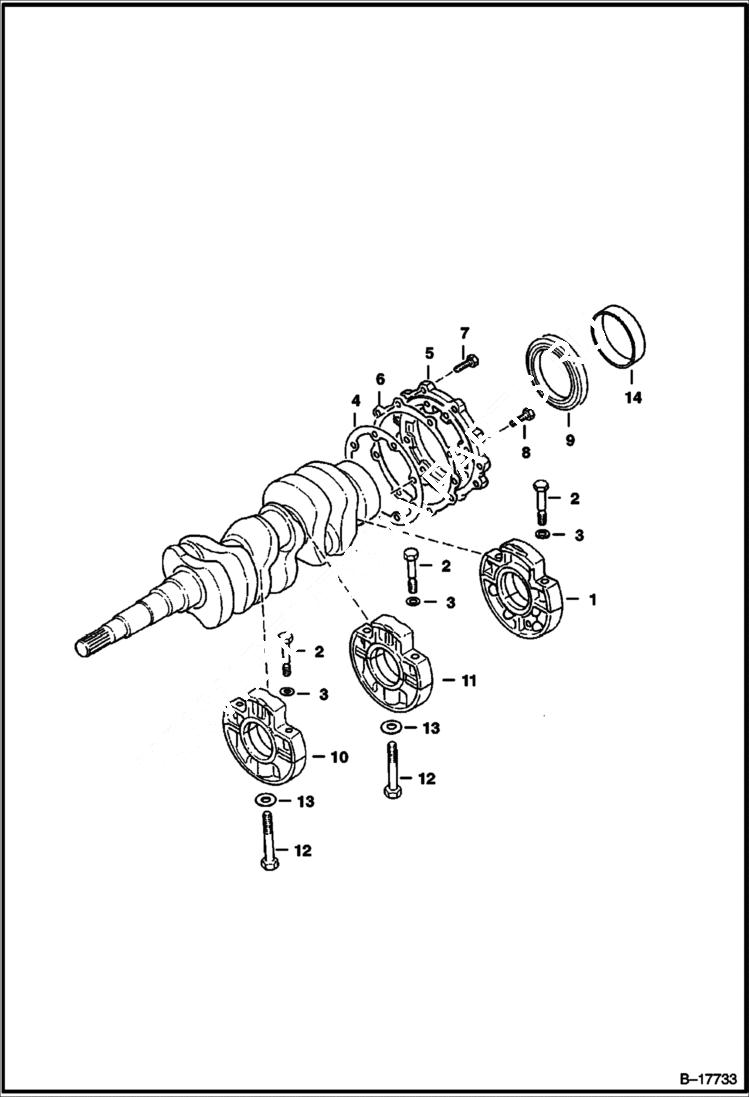

Запчасти Bobcat 500s MAIN BEARING CASE POWER UNIT

1

6652598

CASE main bearing

2

BOLT NLA - Use W/Ref. 3 - Order 6652601 - Was 3974097 - A

2

6652601

BOLT W/O washer

3

3974098

WASHER

4

6599106

GASKET

5

6630198

COVER

6

6599107

GASKET

7

1CM625

BOLT Was 4CM625 - A

8

1CM620

BOLT Was 4CM620 - A

9

3986831

OIL SEAL Not in Gasket Kit

10

6652604

CASE Main Bearing - Was 3974103 - A

11

6652608

CASE main bearing

12

6632561

BOLT Use W/Ref. 13

12

6632561

BOLT W/O washer - Was 6652607 - A

13

3974105

WASHER

14

3986830

SLEEVE crankshaft
