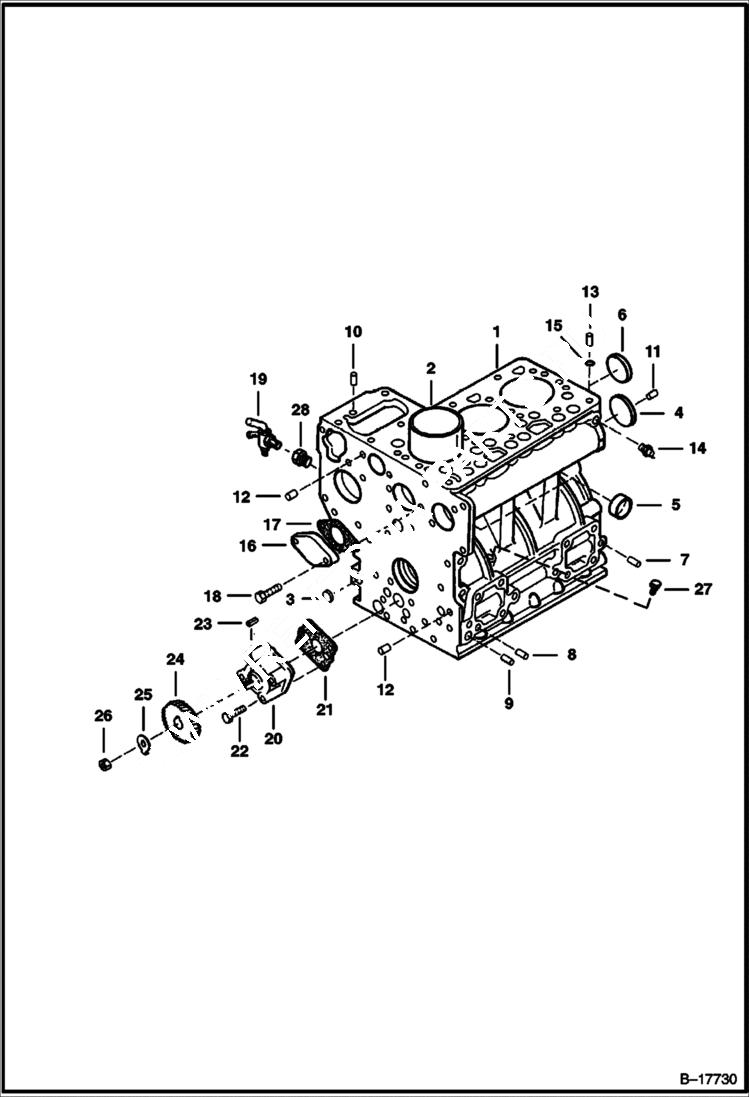

Запчасти Bobcat 500s CRANKCASE POWER UNIT

1

6599041

CRANKCASE W/Ref. 2-13

2

6599011

LINER

3

6652572

PLUG

4

4FM40

PLUG

5

3974033

CAP

6

3974433

PLUG

7

6598116

PLUG

8

6652574

PLUG

9

6652575

PLUG

10

3974394

PIN

11

21JM814

PIN dowel

12

3974039

PIN

13

3974037

PIN

14

6969775

SWITCH, OIL PRESSURE pressure - Was 6652576 - A

15

3974038

O RING

16

3974044

COVER

17

6666778

GASKET Was 3974045B - A

18

4CM618

BOLT

19

6672190

DRAINCOCK Was 6630177 - B

20

6652654

OIL PUMP

21

6666773

GASKET Was 6599108 - A

22

6599067

BOLT

23

6969805

KEY,FEATHER Was 15JM00410B - A

24

GEAR NLA - Use W/Ref. 25 - Also Order 6652656 Nut - Order 6653580 - Was 6652655 - A

24

6653580

GEAR

25

WASHER NLA - Was 6599091 - A

26

6599065

NUT Use W/Ref. 25

26

6652656

NUT flanged

27

6657048

PLUG

28

6657047

ADAPTER
