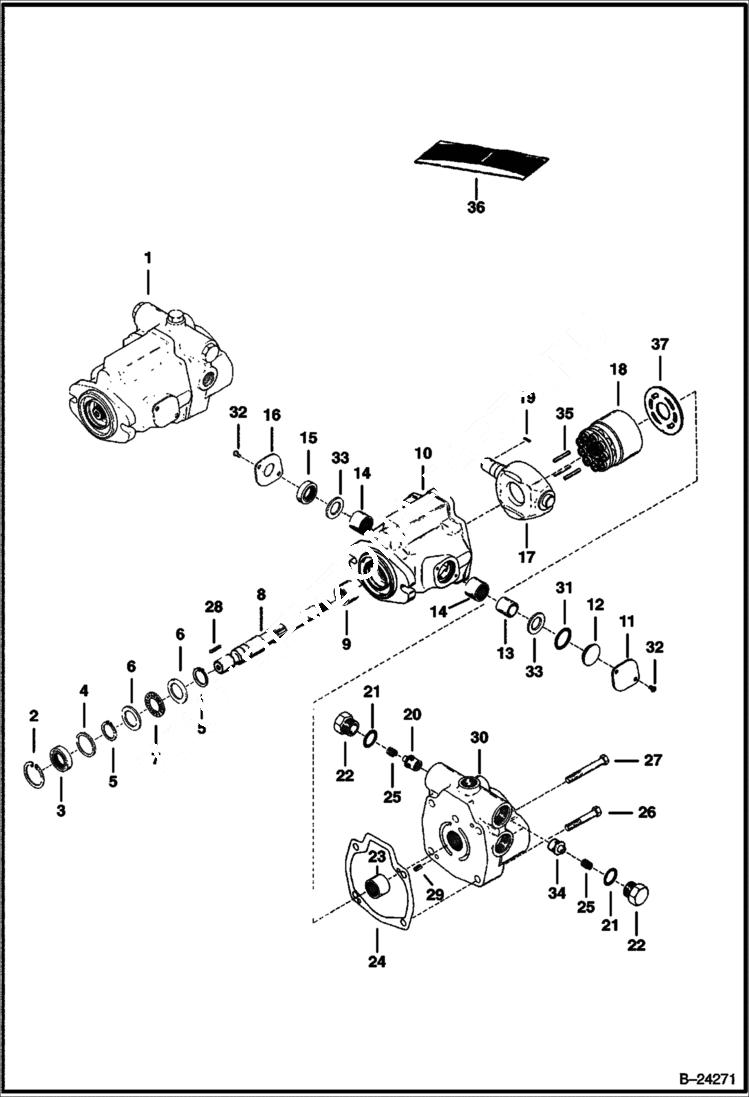

Запчасти Bobcat 500s HYDROSTATIC PUMP (Rear) HYDROSTATIC SYSTEM

1

6667672

PUMP new

2

661415

SNAP RING

3

SEAL NSS

4

6598875

WASHER

5

710776

SNAP RING

6

6598878

RACE

7

3292657

BEARING thrust

8

6598894

SHAFT drive

9

851239

BEARING

10

6667673

HOUSING W/Ref. 9

11

6598887

COVER

12

6648789

COVER

13

6598883

RACE

14

654387

BEARING

15

SEAL NSS

16

6598886

COVER

17

6598892

YOKE

18

6598893

GROUP rotating

19

6630170

KEY

20

6664890

RELIEF VALVE Was 6632063 - B

21

O-RING NSS

22

6513479

PLUG W/Ref. 21 & 25

23

654386

BEARING

24

GASKET NSS

25

SPRING NSS - Order Ref. 22

26

17C532

BOLT 5

27

17C540

BOLT

28

6598880

KEY

29

214028

PIN

30

6667670

PLATE W/Ref. 23

31

O-RING NSS

32

6598881

SCREW

33

6598876

WASHER

34

6630243

POPPET Was 6632066 - A

35

6654126

PIN

36

6598896

KIT, SEAL Ref. 2, 3, 5, 15, 21, 24 & 31

37

6667668

PLATE valve wear
