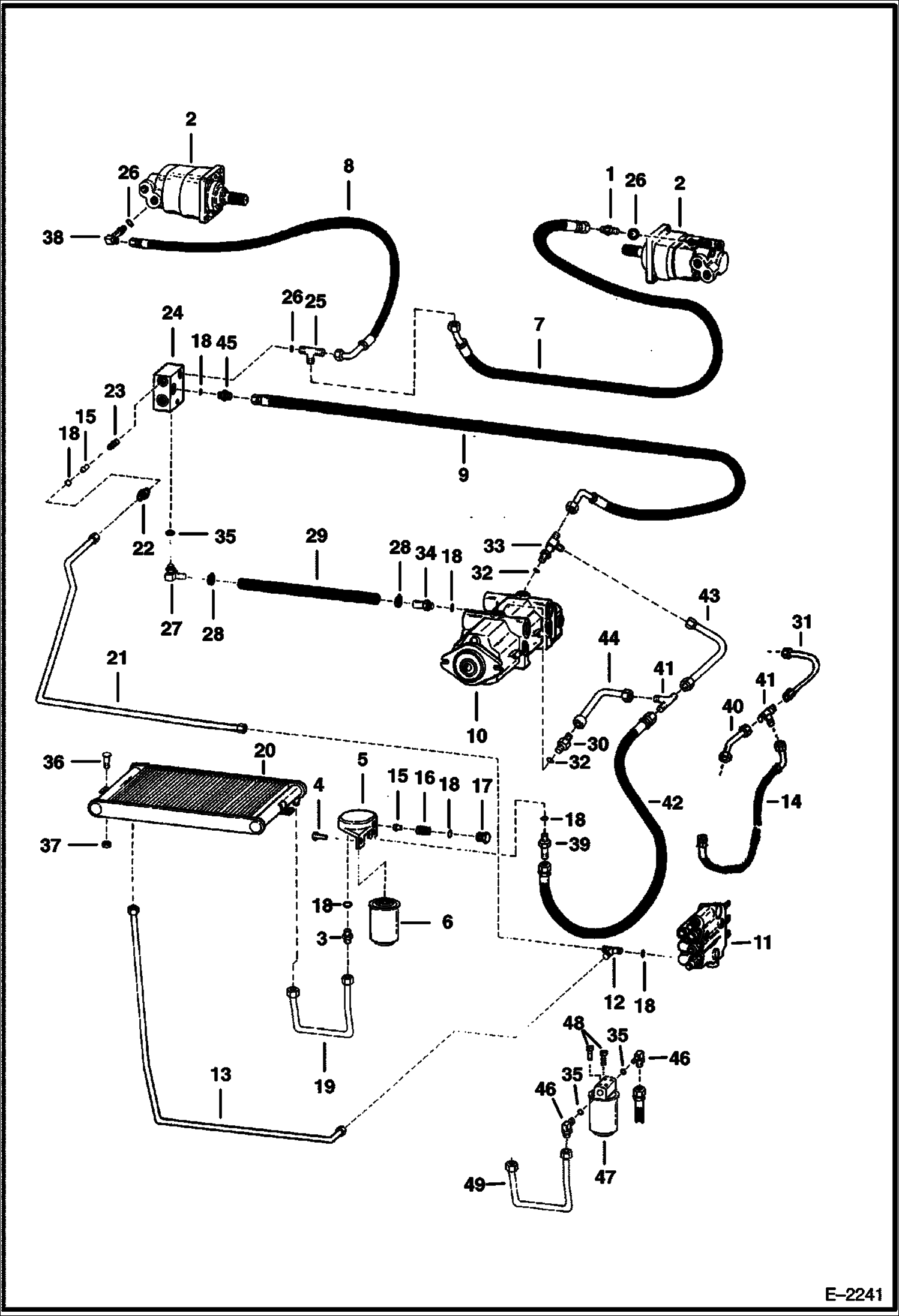

Запчасти Bobcat 500s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

15K5

FITTING W/Ref. 26

2

MOTOR See Illustration HYDROSTATIC MOTOR/ D1678

3

15K7

FITTING W/Ref. 18

4

84G3712

BOLT 5

5

HEAD NLA - See Service Letter 18 Sept. 97 - Was 6567863 - A

6

6630494

ELEMENT See Service Letter 18 Sept. 97

7

6708457

HOSE

8

6706790

HOSE Was 6708458 - A

9

6714081

HOSE Was 6708459 - C

10

PUMP See Illustration HYDROSTATIC PUMP/ D1607

11

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17723 See Illustration HYDRAULIC CONTROL VALVE/ B17722

12

21K7

TEE W/Ref. 18

13

6708354

TUBE

14

HOSE NLA - Order Ref. 42-44 - Was 6708456 - A

15

6515078

POPPET

16

6553897

SPRING

17

6561811

PLUG

18

79K10

O RING 10

19

6708352

TUBE

20

6560954

OIL COOLER

21

6708351

TUBE

22

6559518

ADAPTER W/Ref. 18

23

6564884

SPRING

24

6565550

PORT BLOCK

25

21K5

TEE W/Ref. 26

26

79K6

O RING 10

27

6567886

ELBOW W/Ref. 35

28

42H12

CLAMP 10 Worm Gear

28

5HM32

CLAMP Constant Tension

29

6567888

HOSE

30

15K6

ADAPTER W/Ref. 32

31

TUBE NLA - Order Ref. 42-44 - Was 6708446 - A

32

79K8

O RING 10

33

6708374

TEE W/Ref. 32

34

6567885

ADAPTER W/Ref. 18

35

79K12

O RING 10

36

37C616

BOLT

37

83D6

NUT 5

38

6558510

ELBOW W/Ref. 26

39

16K7

FITTING

40

TUBE NLA - Order Ref. 42-44 - Was 6708438 - A

41

10K6

FITTING

42

6708542

HOSE

43

6708545

TUBE

44

6708544

TUBE

45

731794

CONNECTR

46

17KB1012

FITTING, HYD ELBOW SERVICE PARTS ONLY - See Service Letter 18 Sept. 97 - Was 1302104 - A

47

6661334

FILTER ASSY SERVICE PARTS ONLY - See Service Letter 18 Sept. 97

47

6661248

FILTER, OIL HYD 12 SERVICE PARTS ONLY - See Servicve Letter 18 sept. 97 - 6'' (152, 4 mm) long

48

17C612

BOLT 5 SERVICE PARTS ONLY - See Service Letter 18 Sept. 97

49

6714359

TUBELINE SERVICE PARTS ONLY - See Service Letter 18 Sept. 97
