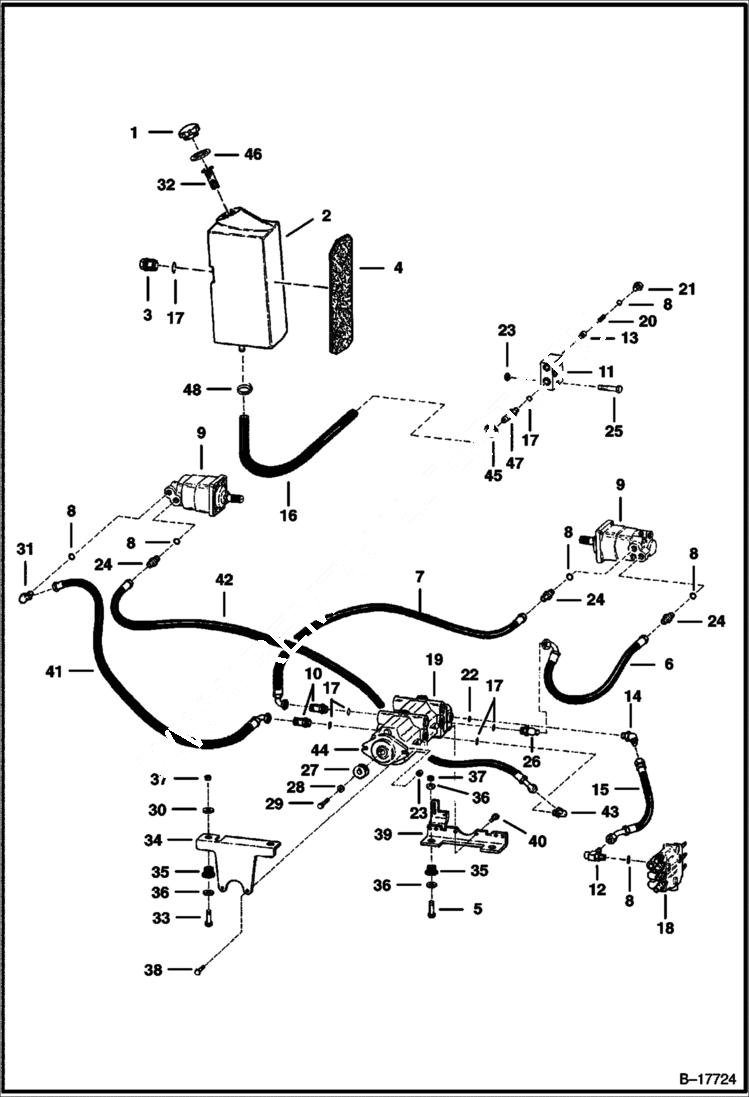

Запчасти Bobcat 500s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6727475

CAP, OIL HYD Was 6577785 - A

2

TANK NLA - Nylon - Order 6714559 Tank, 6714560 Hose & 5HM-42 Clamp - Was 6707516 - A

2

6714559

TANK Nylon

3

6665915

GAUGE Steel - Was 6656338 - A

4

6565012

INSULATION

5

17C836

BOLT

6

6729151

HOSE Was 6714080 - C

7

6729148

HOSE Was 6714077 - C

8

79K10

O RING 10 For Flat Boss Face

8

99K10

O'RING For Tapered Boss Face

9

MOTOR See Illustration HYDROSTATIC MOTOR/ D1678 HYDRO.

10

16K8

CONNECTOR W/Ref. 17

11

6565550

PORT BLOCK

12

ELBOW NLA - W/Ref. 8 - Flat Boss Face - Order 6804110 - Was 6708450 - A

12

6804110

ELBOW W/Ref. 8 - Tapered Boss Face

12

97K10

O-RING 10 For Flared End

13

6565620

POPPET

14

18K6

FITTING W/Ref. 22

15

6708452

HOSE

16

6707937

HOSE 1.00 in. ID

16

6714560

HOSE 1.25 in. ID On Tank End

17

79K12

O RING 10

18

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17723 See Illustration HYDRAULIC CONTROL VALVE/ B17722 HYD.

19

PUMP See Illustration HYDROSTATIC PUMP/ D1607 HYDRO.

20

6562691

SPRING

21

6561811

PLUG Charge pressure relief valve - W/Ref. 8, 13 & 21

22

79K8

O RING 10

23

85D6

NUT, 5

24

15K7

FITTING W/Ref. 8

25

35C640

BOLT 10 Was 17C000644B - B

26

18K8

FTG W/Ref. 17

27

7106572

ADAPTER, SHAFT splined - Was 6558924 - A

28

616783

WASHER

29

18C616

BOLT 5

30

6560899

WASHER

31

18K7

FITTING W/Ref. 17

32

7120881

SCREEN, FILLER Was 6569219 - A

33

35C840

BOLT

34

6707560

MOUNT

35

6560633

DAMPENER

36

6564692

WASHER

37

85D8

NUT, 5

38

35C620

BOLT 5

39

6706536

MOUNT

40

17C536

BOLT

41

6729150

HOSE Was 6714079 - C

42

6729149

HOSE Was 6714078 - C

43

17K8

FITTING W/Ref. 17

44

6598880

KEY

45

42H12

CLAMP 10 Worm Gear

45

5HM35

HOSECLAMP Constant Tension

46

6700631

GASKET

47

1309919

CONECTOR

48

42H12

CLAMP 10 Worm Gear

48

5HM35

HOSECLAMP Constant Tension - Use W/ 6707937 Hose

48

5HM42

HOSECLAMP Constant Tension - Use W/ 6714560 Hose
