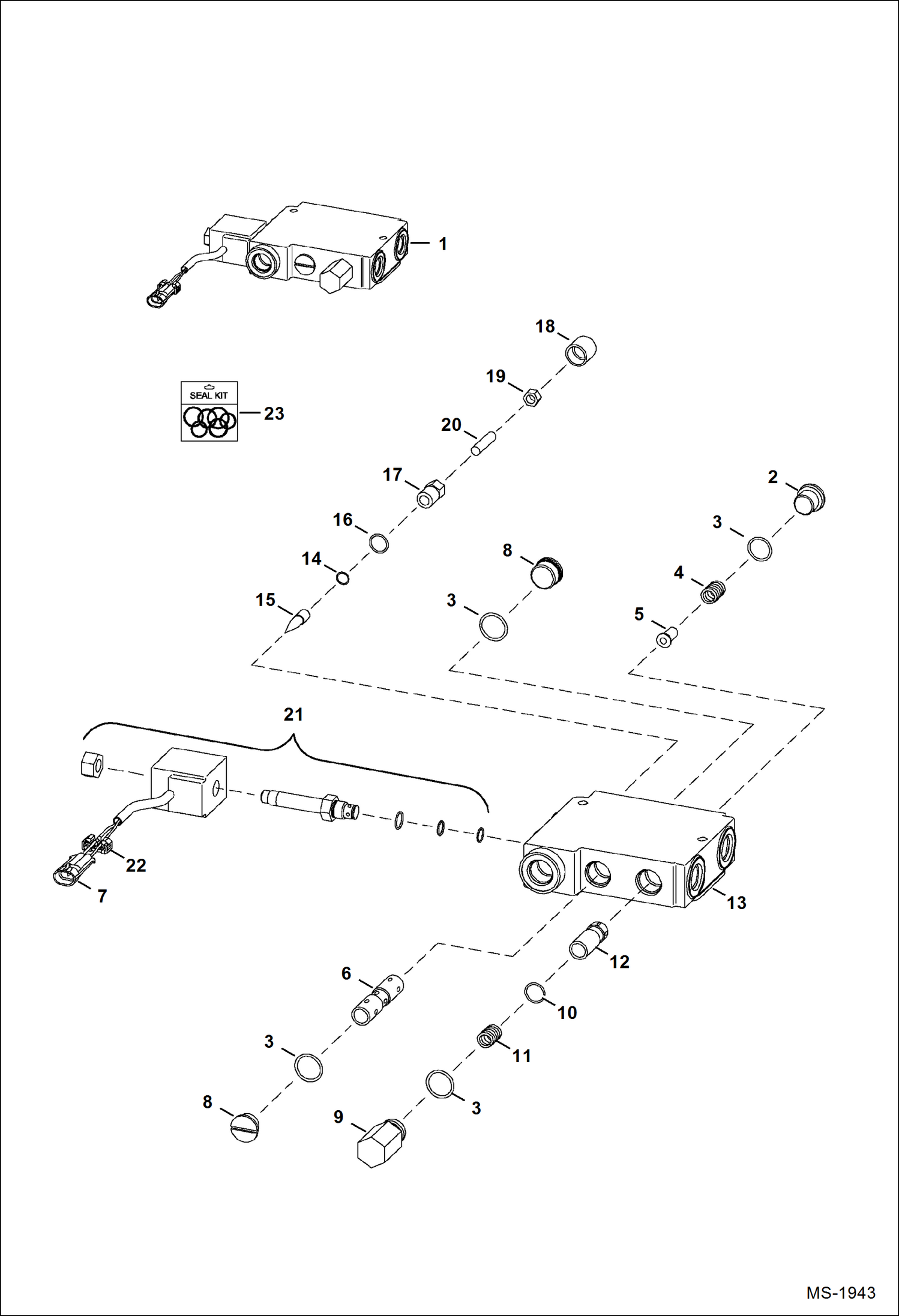

Запчасти Bobcat 500s BUCKET POSITIONING VALVE HYDRAULIC SYSTEM

1

VALVE NLA- W/O solenoid - Order 6673959 valve - If loader is not equipped with an on/off switch also order 6647784 plug, 79K10 O-ring, 6647785 spring, & 6647783 load check- Was 6666341 - A

1

6673959

VALVE, BPV white - W/solenoid - Ref. 2-23

2

6647784

PLUG W/Ref. 3

3

79K10

O RING 10 Was 79K8 - B,D

4

6647785

SPRING

5

6647783

LOAD CHECK

6

SPOOL NSS

7

6641179

CONNECTOR 2-pin

8

6676543

PLUG W/Ref. 3 - Was 6647780 - A

9

6667176

PLUG W/Ref. 3

10

6667680

SNAP RING

11

6648294

SPRING

12

SPOOL NSS

13

BODY NSS

14

6667677

O-RING

15

6647777

PIN

16

79K6

O RING 10 Was 6634874 - B,D

17

6647778

CAP

18

6667676

COVER

19

8D4

NUT Was 6631561 - A

20

6648293

SCREW

21

6672863

VALVE, SOLENOID

21

6671527

NUT

21

6670634

SEAL KIT

21

6675781

COIL W/Ref. 7 & 22 - Was 6674331 - A

21

6675780

CARTRIDGE Was 6676545 - A

22

6641180

LOCK Use W/ 2-pin connector

23

6647786

SEAL KIT Ref. 3, 14, 16, & 18
