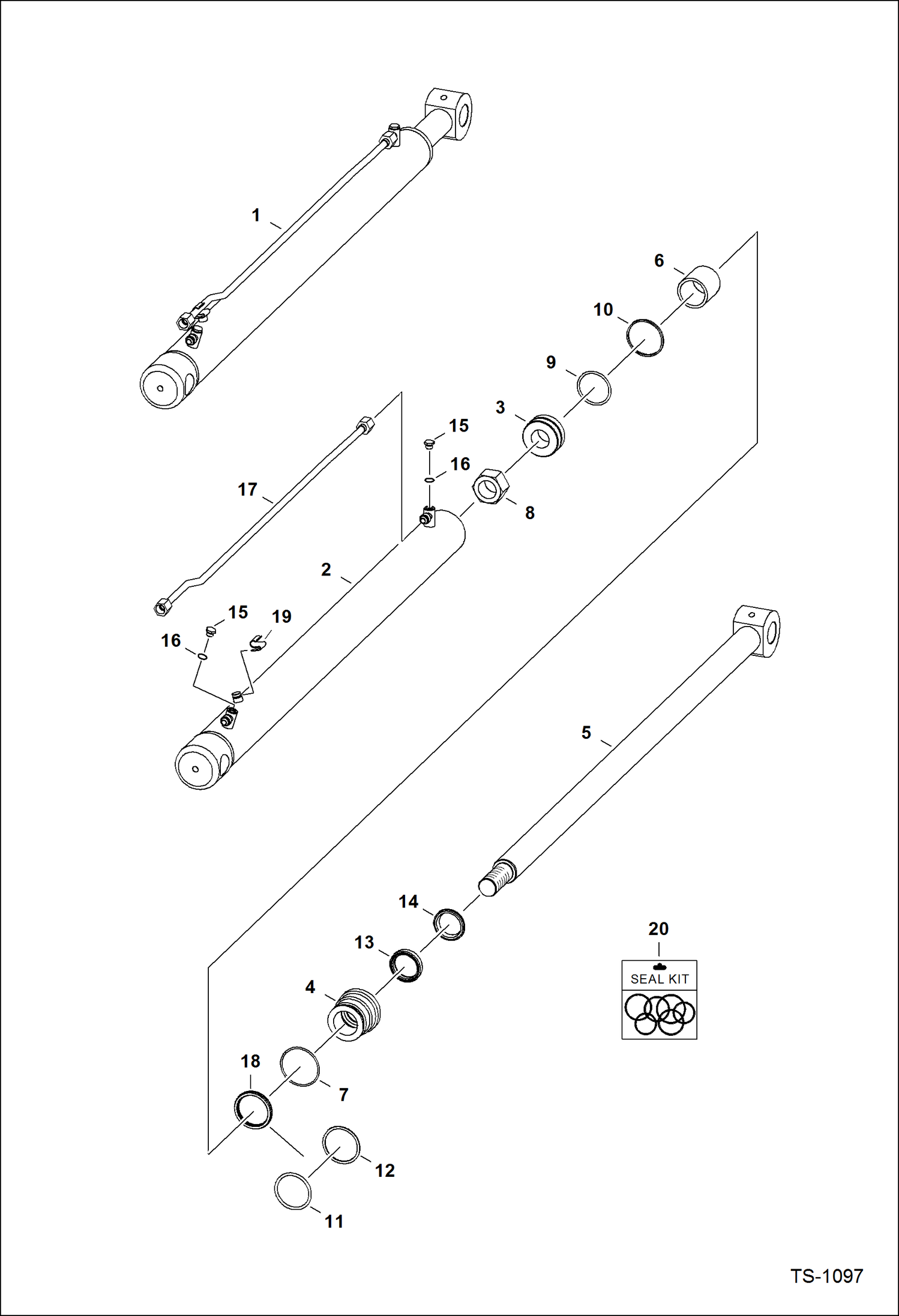

Запчасти Bobcat 500s LIFT CYLINDER HYDRAULIC SYSTEM

1

6594870

CYLINDER Ref. 2 - 17

2

6594873

CASE

3

6661694

PISTON W/Ref. 5 & 6 - W/Non-Replaceable Wear Sleeves

4

6539323

HEAD

5

6539304

SHAFT, ROD CYL LIFT

6

6539299

SPACER

7

82K136

O-RING Was 58K136 - B

8

92D12

NUT

9

6516231

SEAL Was NSS - D

10

54K30118

O-RING Was 25K-30118 - B

11

54K40124

O-RING Was 25K-40124 - B

12

73K224

RING Back-up - Was NSS - D

13

6667324

SEAL rod - Was 6665184 - A

14

6665208

SEAL Wiper - Was NSS - D

15

PLUG NLA - W/Ref. 16 - Flat Boss Face - Was 47K-5 - B

15

90KV5

PLUG W/ O-Ring - Tapered Boss Face

16

79K6

O RING 10 Flat Boss Face

16

95K6

O'RING Tapered Boss Face

17

6594871

TUBE

18

7008781

SEAL, QUAD

19

7137769

KIT, SEAL Ref. 7-14 - Was 6803329 - A
