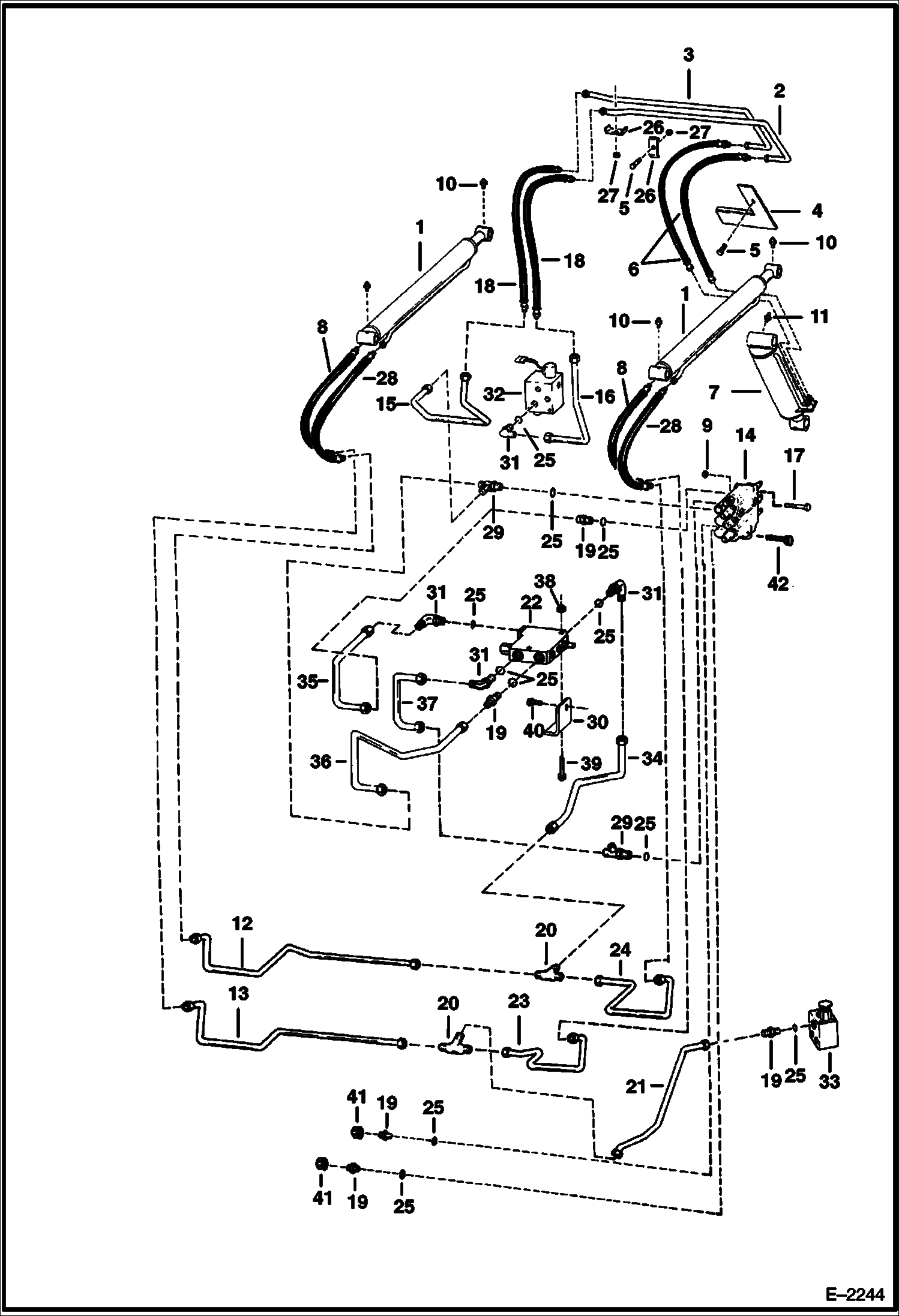

Запчасти Bobcat 500s HYDRAULIC CIRCUITRY (With Bucket Positioning Valve) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT

2

6553159

TUBE

3

6553160

TUBE

4

6553422

COVER

5

84G3720

BOLT

6

6553204

HOSE

7

CYLINDER See Illustration TILT CYLINDER/ B17721 TILT

8

6553244

HOSE

9

91D5

NUT 5 Was 85D000005B - B

10

11H15

GREASE FITTING

11

10H25

FITTING, GREASE 5

12

6564511

TUBE

13

6564510

TUBE

14

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17723 See Illustration HYDRAULIC CONTROL VALVE/ B17722 HYDRAULIC

15

6708176

TUBE

16

6715822

TUBE Was 6708175 - A

17

17C540

BOLT Was 17C000560B - B

18

6553454

HOSE

19

731794

CONNECTR W/Ref. 25 - Flat Boss Face

19

6715184

ADAPTER W/Ref. 25 - Tapered Boss Face

19

97K8

O-RING Flared End

20

10K6

FITTING

21

6708173

TUBE

22

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA- Order 6673959 valve-if you don't have an on/off switch also order 6647784 plug, 79K8 o-ring, 6647785 spring, & 6647783 load check- Was 6666

23

6564480

TUBE

24

6564481

TUBE

25

79K10

O RING 10 Flat Boss Face

25

99K10

O'RING Tapered Boss Face

26

6502203

CLAMP

27

95D6

NUT Was 91D-6 - A

28

6708464

HOSE

29

6578183

TEE W/Ref. 25 - Flat Boss Face

29

21KB0810

FITTING, HYD TEE W/Ref. 25 - Tapered Boss Face - Was 6715187 - A

29

97K8

O-RING Flared End

30

6708163

MOUNT

31

784568

ELBOW Was 6634982 - A

32

6664849

VALVE See Illustration TILT LOCK VALVE/ B17427 TILT LOCK

33

6664850

VALVE See Illustration LIFT LOCK VALVE/ B17428 - lift lock

34

6708164

TUBELINE

35

6708165

TUBELINE

36

6708166

TUBELINE

37

6708167

TUBELINE

38

57D5

NUT

39

17C540

BOLT Was 35C000540B - B

40

84G3716

SCREW 5

41

36K6

CAP

42

17C532

BOLT 5
