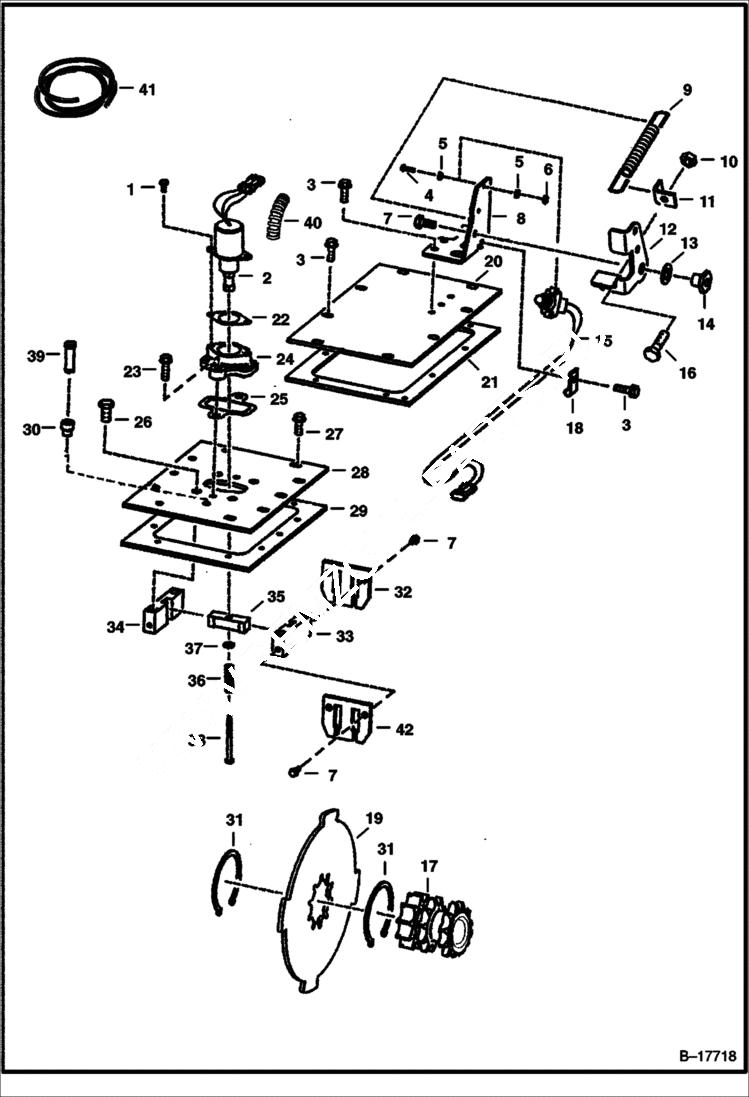

Запчасти Bobcat 500s DISC BRAKE DRIVE TRAIN

1

17C412

BOLT 5

2

6681512

SOLENOID W/Ref. 40 - Was 6667992 - A

3

84G3712

BOLT 5

4

23G812

SCREW

5

25E8

WSHR

6

12D8

NUT

7

17C610

BOLT .62'' x 3/8

8

6707313

PEDAL MOUNT

9

6585860

SPRING

10

95D6

NUT Was 91D-6 - A

11

6707315

ANGLE

12

6707314

PEDAL brake

13

6700170

WASHER plastic

14

6559479

NUT

15

6707337

SWITCH, LOCK TRACTION

16

17C620

BOLT

17

SPROCKET NLA - W/ one snap ring groove - Order 6714469 sprocket - Was 6565185 - A

17

6714469

SPROCKET W/two snap ring grooves

18

30H23

CLAMP

19

6706736

BRAKE disc

20

6578505

COVER

21

6703097

GASKET, TRANS COVER

22

6706737

GASKET

23

84G3720

BOLT

24

6706718

MOUNT

25

6708016

GASKET

26

17C820

BOLT

27

84G3716

SCREW 5

28

6706042

COVER

29

6706968

GASKET

30

6553411

BUSHING

31

791442

SNAP RING

32

6708015

GUIDE Disc Brake

33

6719057

BLOCK guide - RH - Was 6705898 - B

34

6719056

BLOCK guide - LH - Was 6705897 - B

35

6705896

GUIDE

36

6708018

SPRING

37

25E13

WASHER 5

38

6708267

BOLT

39

6680970

BREATHER Was 6670627 - A

40

CONDUIT NLA - 5''(127 mm) long - Order Ref. 41

41

6584978

CONDUIT bulk - sold per foot

42

6708373

GUIDE disc brake
