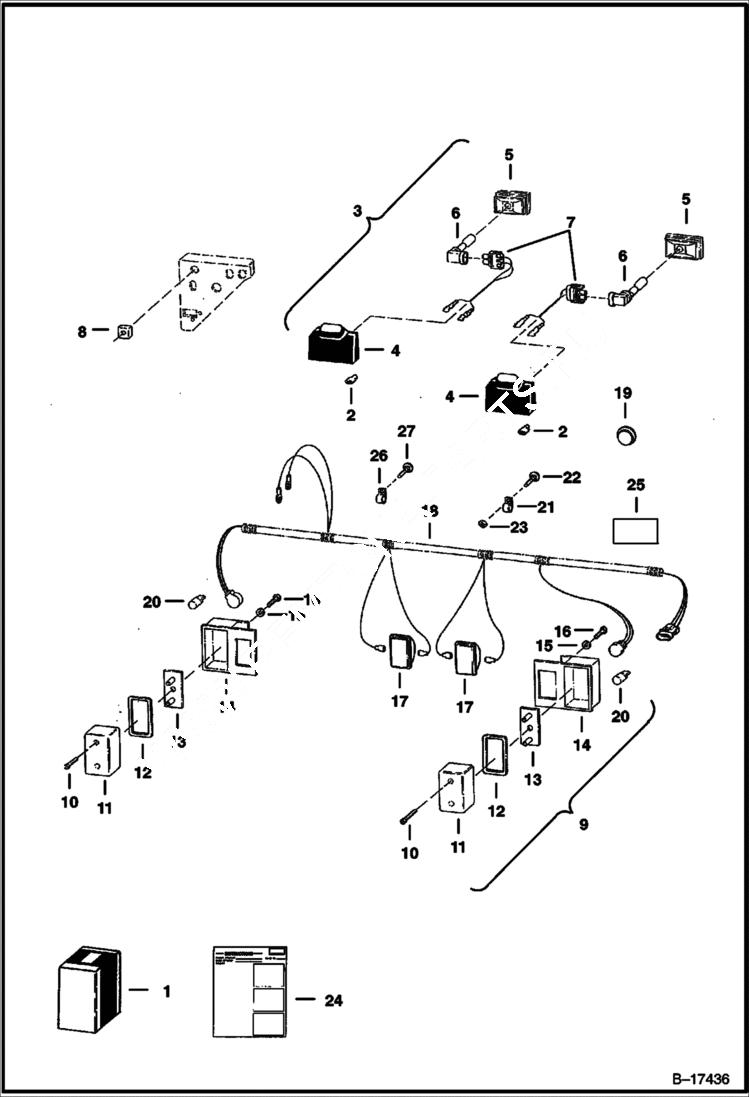

Запчасти Bobcat 500s LIGHT KIT (Front & Rear) ACCESSORIES & OPTIONS

1

6714985

LIGHT KIT W/Ref. 2 - 24

2

6519548

CONNECTOR

3

6577801

LIGHT W/Ref. 4 - 7

4

6578824

HOUSING lights

5

6649478

BULB HOUSING

6

6667934

BULB

7

6578528

HARNESS light

8

6665410

SWITCH

9

6670284

LIGHT ASSY Ref. 10 - 17

10

6672273

SCREW

11

6672276

LENS, LIGHT RED red

12

6672275

GASKET

13

6672277

BRACKET

14

6672279

MOUNT, LIGHT RUBBER rubber

15

6672272

WASHER

16

6672274

SCREW

17

6661353

LIGHT ASSY W/bulb -white

17

898731

1156 BULB

18

6714350

HARNESS Was 6716419 - A

18

7109403

HARNESS not in kit - use for newer style tailgate

19

6718796

PLUG

20

6649481

LIGHT, WEDGE BASE

21

30H42

CLAMP

22

37C512

BOLT

23

61D5

NUT

24

6900653

INSTRUCTIONS

25

6715819

INSULATOR

26

30H50

CLIP

27

BOLT NLA - Was 4CM01020B - A
