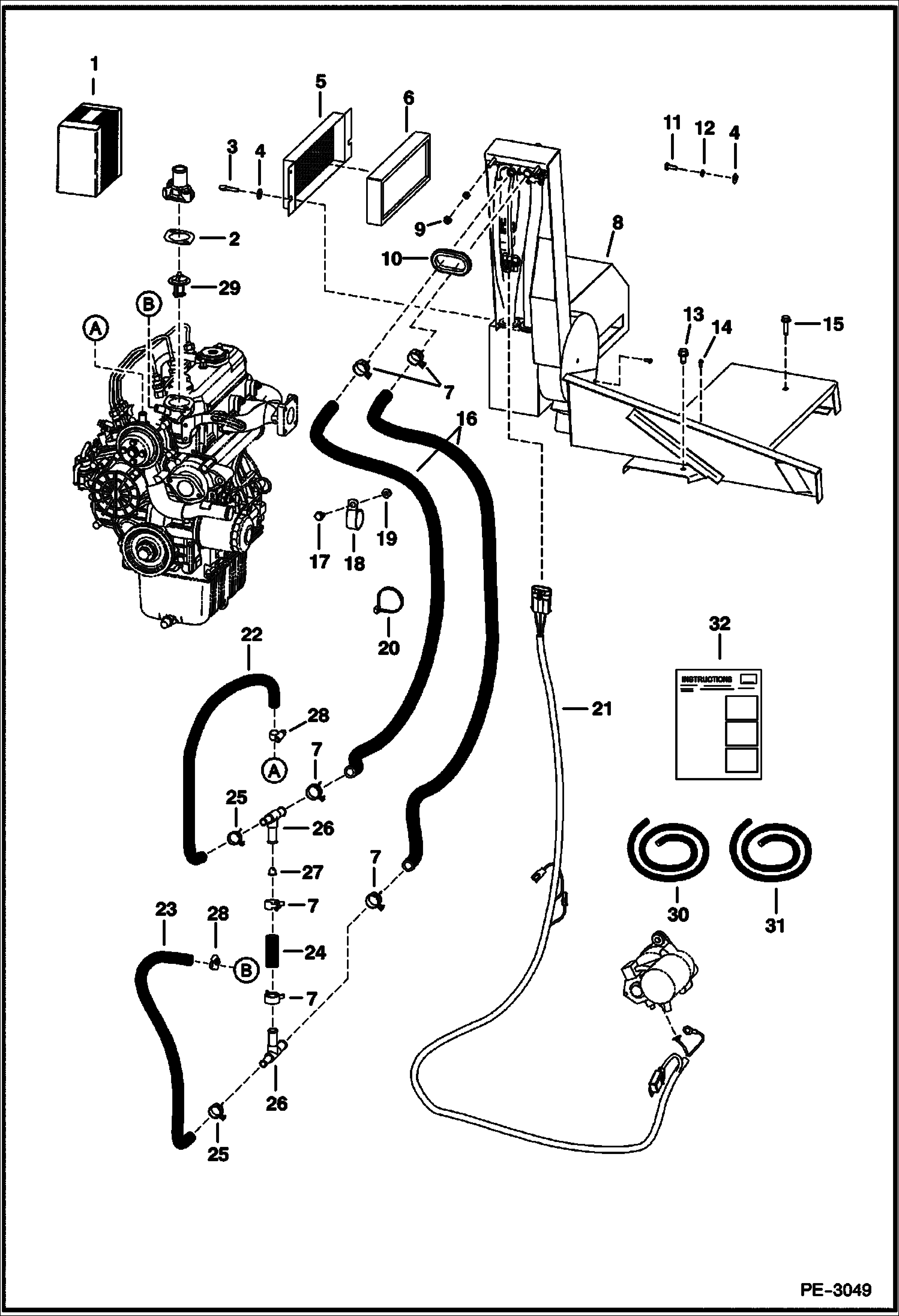

Запчасти Bobcat 500s HEATER KIT ACCESSORIES & OPTIONS

1

7113324

KIT, HEATER W/Ref. 2 - 32 - Includes plumbing parts

2

6732199

GASKET thermostat

3

6660930

THUMBSCREW

4

25E14

WSHR

5

6674151

COVER

6

6660880

FILTER, AIR HEATER CAB

7

5HM24

CLAMP

8

HEATER GROUP See Illustration HEATER GROUP/ B17097

9

55D4

NUT

10

6512067

GROMMET

11

17C412

BOLT 5

12

4E4

WASHER

13

84G3712

BOLT 5

14

6705792

SCREW

15

84G3120

SCREW

16

HOSE 98.43'' long - Order Ref. 30

17

35C512

BOLT

18

30H60

CLIP

19

83D5

NUT 5

20

6624289

STRAP, TIE

21

6660894

HARNESS

22

HOSE 22.41'' long - Order Ref 31

23

HOSE 25.59'' long - Order Ref 31

24

HOSE 2.50'' long - Order Ref 30

25

5HM20

CLAMP

26

6564697

TEE

27

6585223

ORIFICE

28

42HL63

CLAMP

29

6630184

THERMOSTAT

30

6578172

HOSE bulk - sold per foot

31

6565977

HOSE bulk - sold per foot

32

6904212

INSTRUCTIONS
