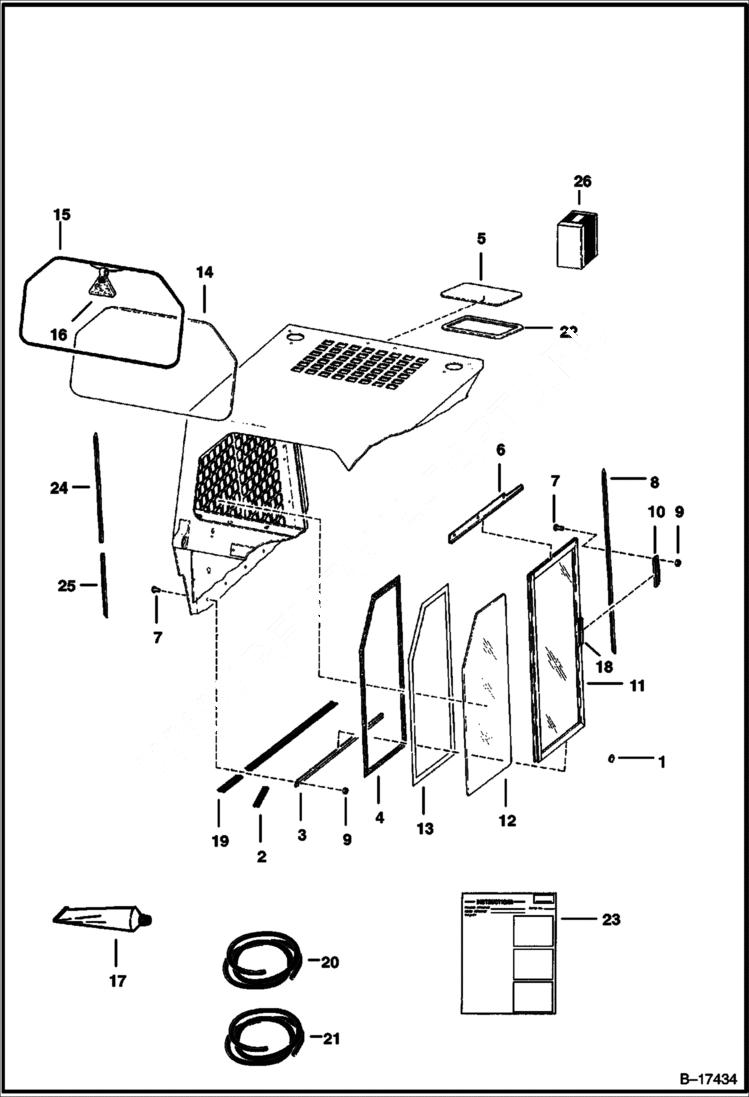

Запчасти Bobcat 500s CAB WINDOWS ACCESSORIES & OPTIONS

1

6632265

PLUG button

2

6513152

SEAL bulk - sold per foot

3

6661689

TRACK LH

3

6661690

TRACK RH

4

6631549

HOOK scotchmate

5

6705735

WINDOW Use with ref. 22

6

6703160

TRACK LH

6

6703159

TRACK RH

7

35C410

BOLT 5

8

6630919

TRACK R.H.

9

83D4

NUT 10

10

6630924

BRACKET

11

6658143

WINDOW LH

11

6658142

WINDOW RH

12

6702731

WINDOW, CAB

13

6631548

LOOP scotchmate

14

6729730

WINDOW rear - .25''(6.35mm) thick safety glass

15

EXTRUSION NLA - 81.5''(2070 mm)long-Order Ref. 21

15

CORD NLA - 81.5''(2070 mm) long-Order Ref. 21 - Also Order Ref. 16 (6731478 exit tag)

16

6731478

EXIT TAG Was 6559515 - A

17

6555350

ADHESIVE rubber - Use W/Ref. 5

18

6659949

LATCH

19

SEAL NLA - 24.5''(622mm)long-Order Ref. 21

20

6555351

SEAL bulk - sold per foot

21

6675387

EXTRUSION bulk - sold per foot

21

6554149

CORD, BULK/FT bulk - sold per foot

22

6664351

SEAL Use W/cab headliner

22

6665012

SEAL Use W/O cab headliner

23

6566957

INSTRUCTIONS Side Windows

23

6720320

INSTRUCTIONS rear window

23

6720598

INSTRUCTIONS top window

23

6904213

INSTRUCTIONS top window - For Ref. 27 (7112177 top window kit)

23

6902343

INSTRUCTIONS top window - For Ref. 27 (7111126 top window kit) - Was 6904214 - A

24

6706744

TRACK LH - top half

25

6706745

TRACK LH - bottom half

26

7112177

KIT top window - Use W/ cab headliner - inlcudes Ref. 5, Ref. 22 (66643512 seal) & Ref. 23 (6904213 instructions)

26

7111126

KIT top window - Use W/O cab headliner - inlcudes Ref. 5, Ref. 22 (6665012 seal) & Ref. 23 (6904214 instructions)
