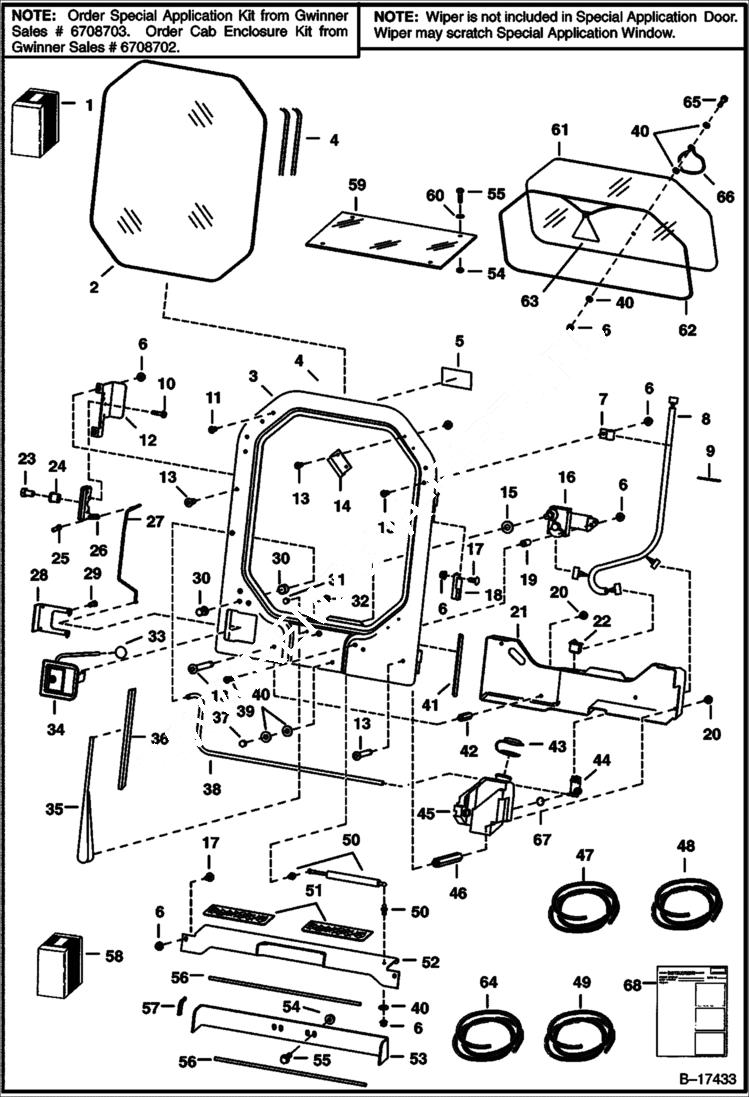

Запчасти Bobcat 500s CAB ENCLOSURE (L.H. Hinged) ACCESSORIES & OPTIONS

1

6708702

KIT, ENCLOSURE CAB Ref. 2-68 - Was SALES - A

1

6708703

KIT, SPECIAL APPS does not include wiper - Was SALES - A

2

6707225

WINDOW .25'' thick - safety glass - for standard door

2

6708499

WINDOW .5'' thick - plexiglass - for special applications door

3

6707220

FRAME, DOOR CAB Also Order Ref. 5 (6707852 decal)

4

SEAL NLA - 91''(2311 mm) long - Order Ref. 47 - for standard door

4

CORD NLA - 91''(2311 mm) long - Order Ref. 47 - for standard door - Also Order Ref. 9 (6610510 tie)

5

6707852

DECAL, EXIT emergency

6

83D5

NUT 5 for standard door

6

83D5

NUT 5 for special applications door

7

30H37

CLAMP

8

6708269

HARNESS

9

6610510

TIE

10

35C416

BOLT

11

5289686

PLUG black - 0.38'' dia hole

12

6707222

MOUNT latch

13

25G512

SCREW for standard door

13

25G512

SCREW for special applications door

14

6708500

CLAMP for special applications door

15

27E10

WASHER

16

6679814

MOTOR, WIPER W/tapered shaft

17

10C512

BOLT

18

6707216

HINGE

19

6708096

BUSHING

20

35C510

BOLT

21

6707179

SHIELD

22

6665707

SWITCH

23

17C712

BOLT

24

6568047

NUT bushing

25

6512274

CLIP

26

6665531

LATCH

27

6707221

ROD latch release

28

6703751

RETAINER

29

45G1008

BOLT

30

6666767

NOZZLE washer - Was 6664555 - A

31

1CM616

SCREW

32

43DM6

NUT

33

6647635

KNOB

34

6665530

LATCH W/ Key & Ref. 33

34

KEY NLA - includes two keys W/ring - Order 6693241 - Was 6709527 - A

34

6693241

KEY 10 ignition - single key W/O ring

35

6679816

ARM, WIPER for tapered motor shaft

36

6679815

BLADE, WIPER

37

46D5

NUT

38

HOSE NLA - 26''(660,4 mm)long - Order Ref. 48

39

25G528

BOLT

40

25E16

WSHR

41

SEAL NLA - 137''(3480mm)long - Order Ref. 49

42

6707224

COUPLING

43

6665605

CAP

44

6664554

PUMP, WIPER WASHER

45

6707178

TANK

46

6707223

COUPLING

47

6665568

EXTRUSION bulk - sold per foot

47

6554149

CORD, BULK/FT bulk - sold per foot

48

6676003

HOSE, BULK/FT black - 0.109'' ID - sold per foor

49

6513152

SEAL bulk - sold per foot

50

6630797

GAS SPRING

50

6632221

STUD ball

50

2756257

CLIP spring

51

6703757

SAFETY TREAD

52

6707239

SHIELD

53

6707236

SHIELD

54

83D6

NUT 5

55

35C616

BOLT 5

56

SEAL NLA - 28''(711 mm)long-Order Ref. 49

57

SEAL NLA - 5''(127 mm)long -Order Ref. 49

58

6708975

KIT shield - Ref. 6, 17, 51 - 57 & 59

59

6705216

WINDOW top

60

25E18

WASHER

61

6579325

WINDOW rear - .25'' thick poly carbonate

62

EXTRUSION NLA - 100''(2540 mm) long - Order Ref. 64

62

CORD NLA - 100''(2540 mm) long - Order Ref. 64 - Also Ref. 63 (6731478 exit tag)

63

6731478

EXIT TAG Was 6559515 - A

64

6658352

MOULDING bulk - sold per foot

64

6554149

CORD, BULK/FT bulk - sold per foot

65

35C516

BOLT 10

66

6555331

WIRE ROPE

67

6666766

GROMMET

68

6724029

INSTRUCTIONS
