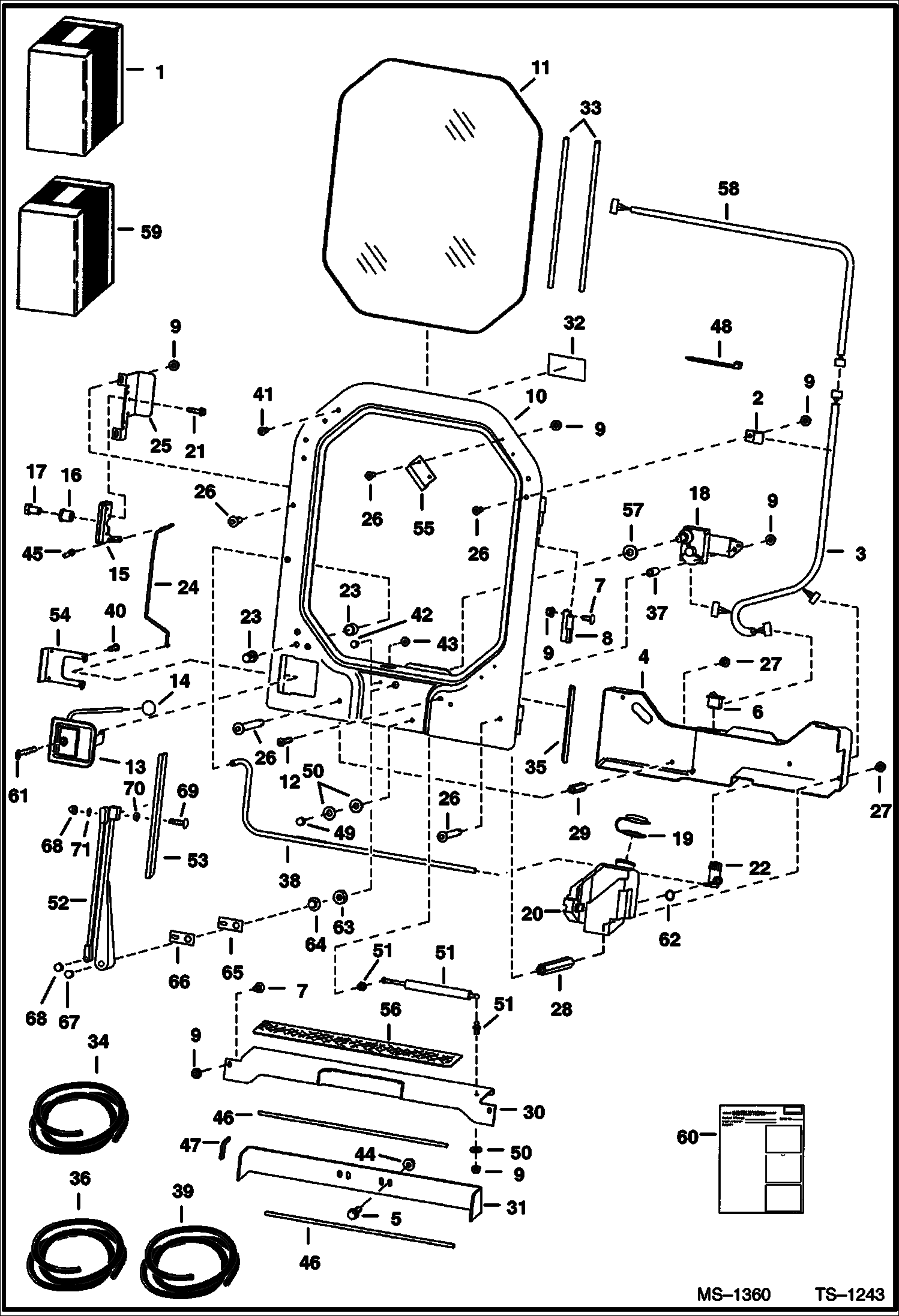

Запчасти Bobcat 500s CAB DOOR (L.H. Hinged) ACCESSORIES & OPTIONS

1

6708973

KIT door - Ref. 2-4, 6-29, 32-35, 37-43, 45, 48-55, 57, 60 & 61 - Also Order Ref. 59

1

KIT SALES - door - special applications - Ref. 4, 5, 7-17, 21, 24-37, 40-51, 54-56, 60&61-Also Order Ref. 59

2

30H37

CLAMP

3

HARNESS NLA - Order 6712259 Harness

3

6712259

HARNESS W/2 diodes

4

6707179

SHIELD

5

35C616

BOLT 5

6

6665707

SWITCH

7

10C512

BOLT

8

6707216

HINGE

9

83D5

NUT 5 for standard door

9

83D5

NUT 5 for special applications door

10

6707220

FRAME, DOOR CAB Also Order Ref. 32 (6707852 decal)

11

6707225

WINDOW .25''(6.35mm) thick - safety glass - for standard door

11

6708499

WINDOW .5''(12.7mm) thick - plexiglass - for special applications door

12

25G528

BOLT

13

6665530

LATCH W/Ref. 14 - Also Order Ref. 61

14

6647635

KNOB

15

6665531

LATCH

16

6568047

NUT bushing

17

17C712

BOLT

18

6679814

MOTOR, WIPER W/tapered shaft

19

6665605

CAP

20

6707178

TANK

21

35C416

BOLT

22

6664554

PUMP, WIPER WASHER

23

6666767

NOZZLE washer - Was 6664555 - A

24

6707221

ROD latch release

25

6707222

MOUNT latch

26

25G512

SCREW for standard door

26

25G512

SCREW for special applications door

27

35C510

BOLT

28

6707223

COUPLING

29

6707224

COUPLING

30

6707239

SHIELD bolts to cab

31

6707236

SHIELD bolts to main frame

32

6707852

DECAL, EXIT emergency

33

SEAL NLA - 91''(2311 mm)long-Order Ref. 34

33

CORD NLA - 91'' (2311mm) long - Order Ref. 34 - Also Order Ref. 48 (6610510 tie)

34

6665568

EXTRUSION bulk - sold per foot

34

6554149

CORD, BULK/FT bulk - sold per foot

35

SEAL NLA - 137''(3480mm)long-Order Ref. 36

36

6513152

SEAL bulk - sold per foot

37

6708096

BUSHING

38

HOSE NLA - 26''(660,4 mm)long-Order Ref. 39

39

6676003

HOSE, BULK/FT black - 0.109'' ID - sold per foor

40

45G1008

BOLT

41

5289686

PLUG black - 0.38'' dia hole

42

1CM616

SCREW

43

43DM6

NUT

44

83D6

NUT 5

45

6512274

CLIP

46

SEAL NLA - 28''(711 mm)long-Order Ref. 36

47

SEAL NLA - 5''(127 mm)long -Order Ref. 36

48

6610510

TIE

49

46D5

NUT

50

25E16

WSHR

51

6630797

GAS SPRING

51

6632221

STUD ball

51

2756257

CLIP spring

52

6679816

ARM, WIPER for tapered motor shaft

53

6679815

BLADE, WIPER

54

6703751

RETAINER

55

6708500

CLAMP for special applications door

56

6564833

SAFETY TREAD

57

27E10

WASHER

58

6708225

HARNESS not in kit - for non BICS loaders only

59

6708975

KIT shields - Ref. 5, 7, 9, 30, 31, 44, 46, 47, 56 & 60

60

6724029

INSTRUCTIONS

61

KEY NLA - Order 6693241 single key - Was 6709527 two keys - A

62

6666766

GROMMET

63

6677842

NUT

64

6678326

RAIN SHIELD

65

6677839

GASKET

66

SWIVEL, PLATE ASSY NLA - Order 7188371 wiper arm, 7188372 wiper blade, 7188373 swivel & 7009047 plate - Was 6677840 - A

67

6677843

NUT

68

6677844

NUT

69

6678198

BOLT

70

6664085

BUSHING

71

6677841

WASHER
