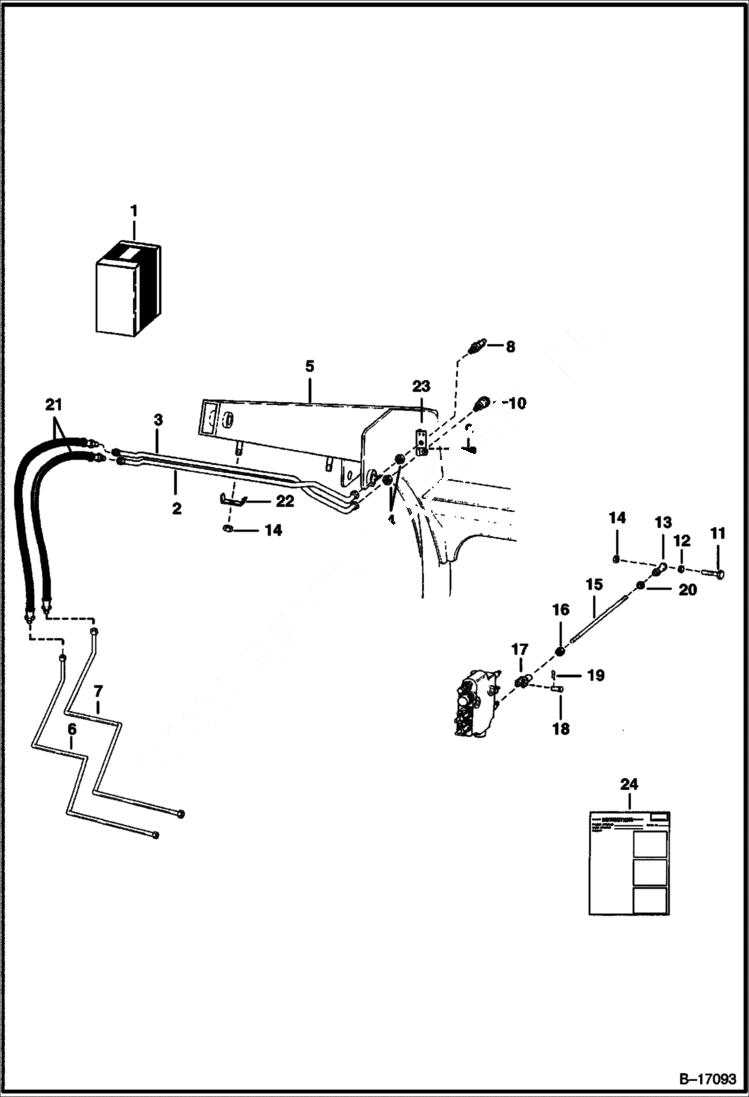

Запчасти Bobcat 500s AUXILIARY HYDRAULICS KIT ACCESSORIES & OPTIONS

1

6715321

KIT aux. hyd. - Ref. 2-4, 6-24

2

6713171

TUBE

3

6713172

TUBE

4

86F7

LOCK NUT

5

LIFT ARM See Illustration LIFT ARM & BOB-TACH/ MS1358

6

6731500

TUBE

7

6731499

TUBE

8

6676444

COUPLER, FF MALE Male - flush face

8

6679841

SEAL Was 6672026 - A

9

84G3112

BOLT 5

10

6676446

COUPLER, FF FEMALE Female - flush face

11

17C624

BOLT 5 Was 17C000620B - B

12

6810385

BUSHING Was 6564535 - B

13

6512955

SWIVEL L.H. threads

14

95D6

NUT

15

6567057

ROD

16

8D6

NUT 5

17

6564655

CLEVIS

18

PIN NLA - Was 6564654 - A

19

6513495

COTTER PIN

20

13D6

NUT

21

6731501

HOSE

22

6502203

CLAMP

23

6713850

MOUNT

24

6724257

INSTRUCTIONS
