Запчасти Bobcat 500s SPEED CONTROL PLATE Kubota D1105 Tier II - S/N 5280, 5281, 5391 & 5394 (1st 4 Digits) POWER UNIT

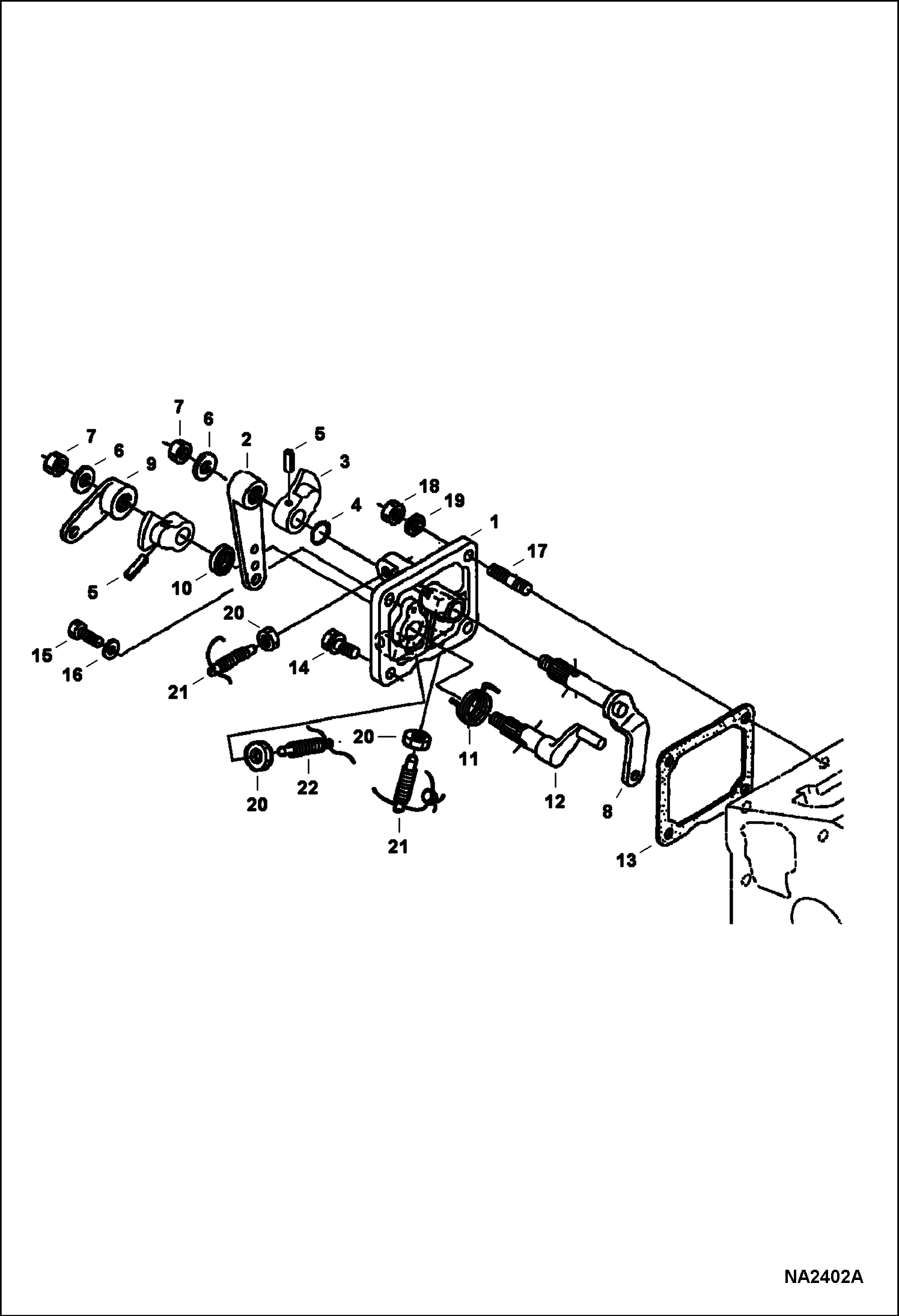

Схема запчастей Bobcat 500s - SPEED CONTROL PLATE Kubota D1105 Tier II - S/N 5280, 5281, 5391 & 5394 (1st 4 Digits) POWER UNIT

Артикул

Название

Примечание

Количество

1

6680276

PLATE ASSY W/Ref. 2-12 & 20-22

2

6657655

LEVER

3

6657577

LEVER

4

6680277

O-RING

5

6598098

PIN

6

6657596

WASHER

7

6657592

NUT

8

6657649

LEVER ASSY

9

6657656

LEVER

10

6598703

SEAL

11

6657474

SPRING

12

6657657

SHAFT

13

6672403

GASKET

14

1CM616

SCREW Was 4CM616 - A

15

4CM618

BOLT

16

3974972

GASKET

17

6680264

STUD

18

1DM6

NUT

18

6670533

NUT flange

19

6667419

WASHER

20

1DM6

NUT

21

7010118

BOLT, ADJUSTING

22

7010119

BOLT, ADJUSTING

Выбрано товаров: 23
