Запчасти Bobcat 500s MAIN BEARING CASE Kubota D1105 Tier II - S/N 5280, 5281, 5391 & 5394 (1st 4 Digits) POWER UNIT

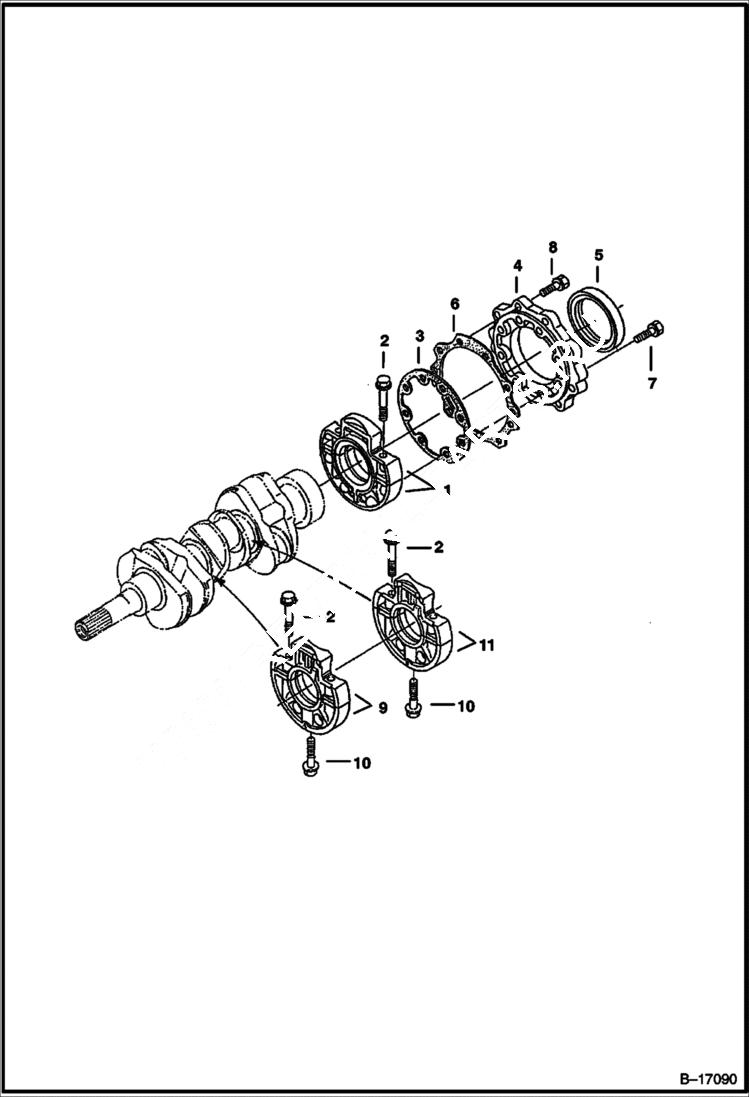

Схема запчастей Bobcat 500s - MAIN BEARING CASE Kubota D1105 Tier II - S/N 5280, 5281, 5391 & 5394 (1st 4 Digits) POWER UNIT

Артикул

Название

Примечание

Количество

1

6657616

MAIN BRG main bearing - Was 6672366 - A

1

6691302

BEARING CASE W/Ref. 2 and Ref. 19 bearing from B15033A

2

6657482

BOLT

3

6672367

GASKET

4

6657484

COVER

5

6657481

SEAL

6

6698617

GASKET, COVER CASE Was 6672368 - A

7

1CM625

BOLT Was 4CM625 - A

8

1CM620

BOLT Was 4CM620 - A

9

6672369

CASE main bearing - Was 6657614 - A

9

6691304

CASE, BEARING W/Ref. 2 and Ref. 18 bearing from B15033A

10

6657483

BOLT

11

6657615

CASE main bearing

11

6657615

CASE W/Ref. 2 and Ref. 18 bearing from B15033A - Was 6691305 - A

Выбрано товаров: 14
