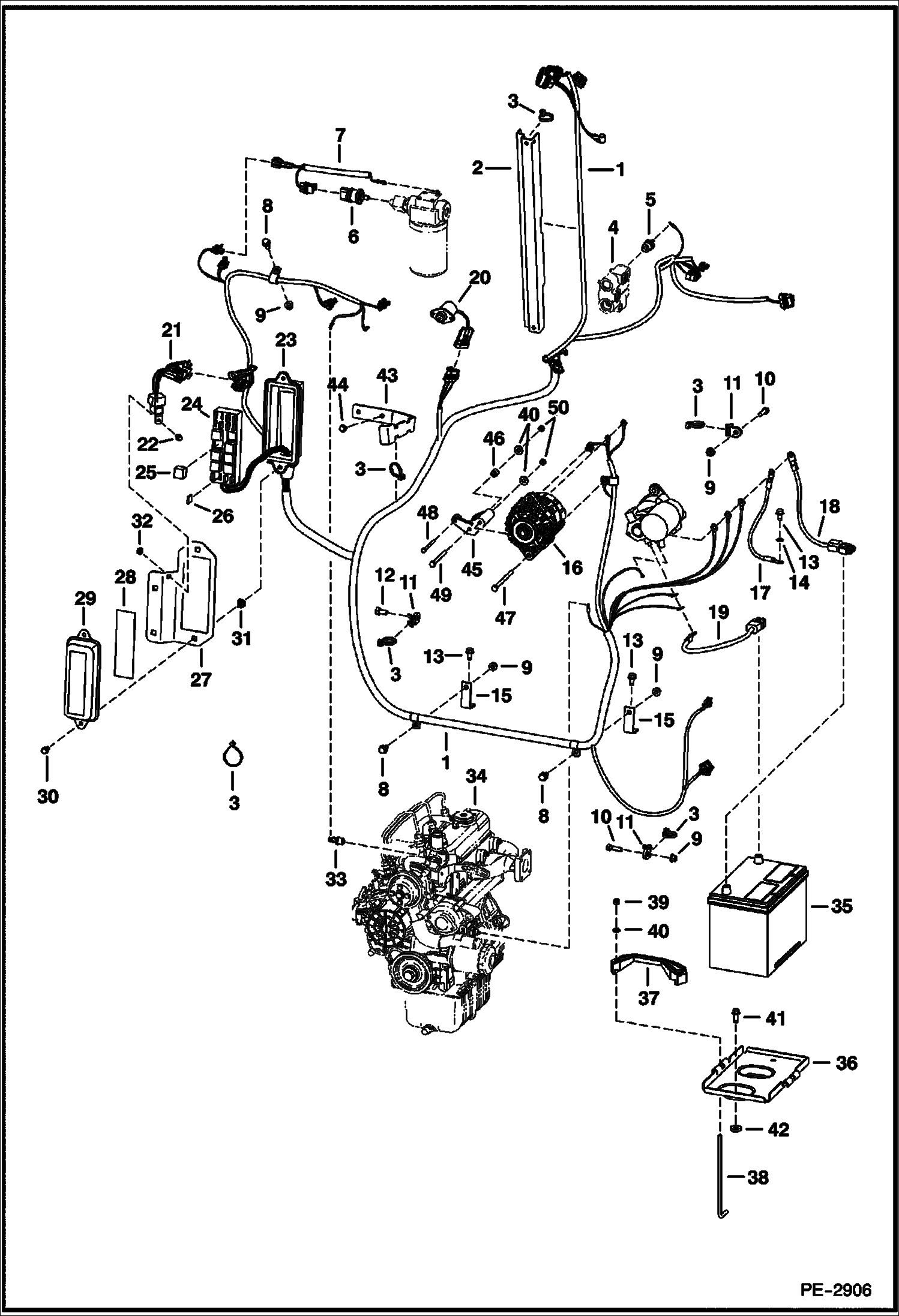

Запчасти Bobcat 500s ENGINE ELECTRICAL SYSTEM 5391 12001 & Abv, 5394 12001 & Abv ELECTRICAL SYSTEM

1

7115227

HARNESS engine

2

6708479

SHIELD

3

6624289

STRAP, TIE

4

6565550

PORT BLOCK

5

6632633

SWITCH hyd temp

6

6670705

SWITCH, PRESS OIL HYD hyd charge pressure

7

6715458

HARNESS filter

7

6648311

TERMINAL

7

6650107

SEAL

7

6665364

CONNECTOR

7

6665368

LOCK

8

35C612

BOLT

9

83D6

NUT 5

10

17C620

BOLT

11

6679034

MOUNT

12

5CM1020

SCREW

13

84G3712

BOLT 5

14

6E6

WASHER

15

6730989

BRACKET

16

ALTERNATOR See Illustration ALTERNATOR/ B20884

17

6565170

CABLE neg

18

6562905

CABLE negative

19

6578382

CABLE positive

20

6670602

SOLENOID, SHUTOFF FUEL shutdown Fuel Shutdown

21

6669415

TIMER, SOLENOID

22

35C410

BOLT 5

23

6718659

HOUSING

24

6673200

FUSE BLOCK

25

6679820

RELAY

26

6654805

FUSE 10A Was 6961388 - A

26

6654806

FUSE, 15A

26

6702444

FUSE 25A 5

27

6732917

BRACKET

28

7116162

DECAL fuse / relay

29

6716621

COVER

30

35C512

BOLT

31

6678765

NUT self-retaining

32

6678766

NUT self-retaining

33

6658818

SENDER eng temp - threaded connector

33

19F2

BUSHING reducing

33

14D10

NUT

34

ENGINE See Illustration ENGINE/ B17086A

35

6674687

BATTERY, DRY 600 AMP

36

6718260

BATTERY PAN

37

6569203

CLAMP

38

6576280

BOLT

39

59D5

NUT 5

40

25E15

WASHER

41

84G3716

SCREW 5

42

616783

WASHER

43

7117895

BRACKET

44

84G3112

BOLT 5

45

6731765

MOUNT alternator

46

6675838

BUSHING

47

1CM8110

HEX CAP S

48

1CM665

BOLT

49

1CM880

BOLT

50

53DM8

NUT
