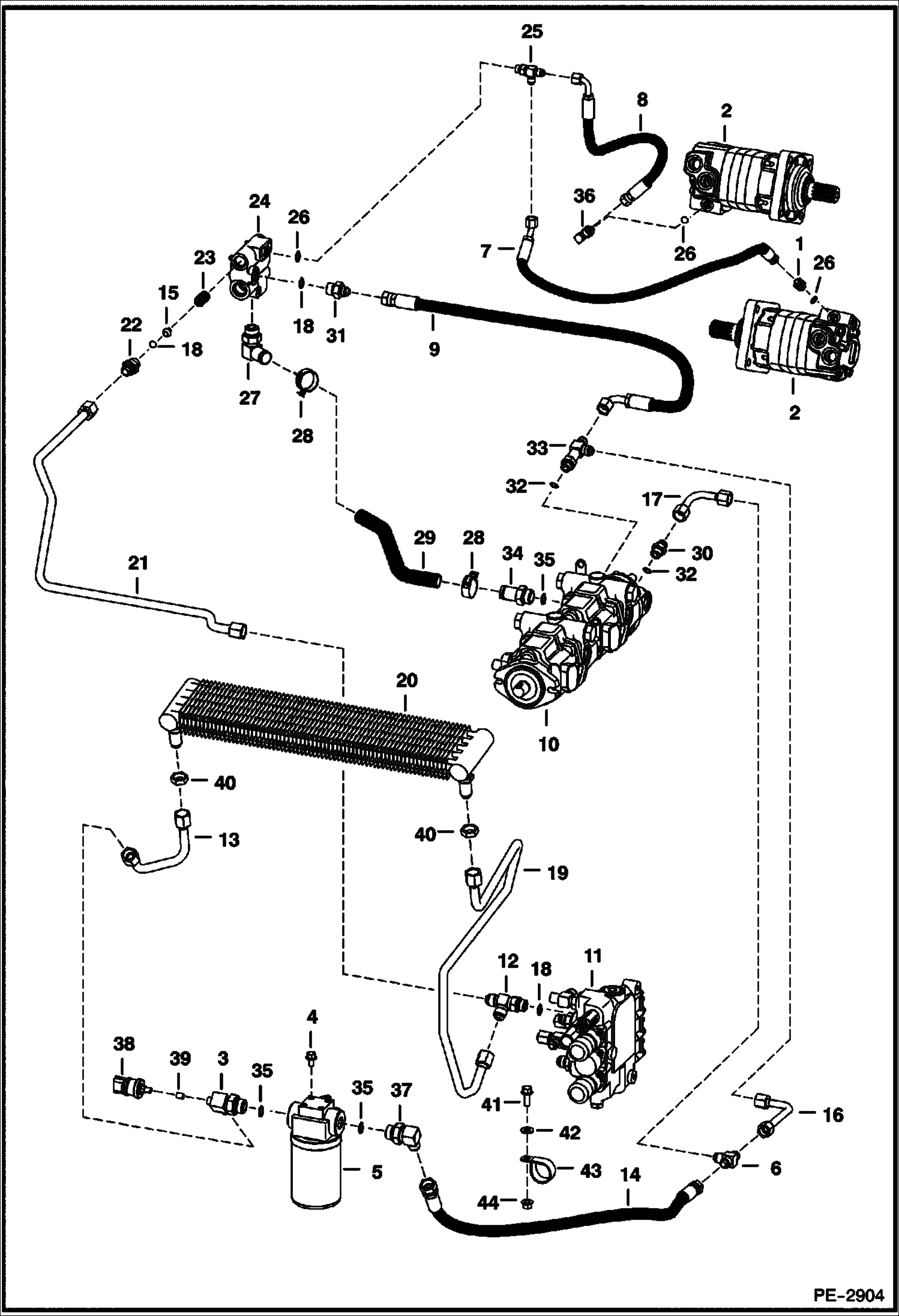

Запчасти Bobcat 500s HYDROSTATIC CIRCUITRY 5391 12001 & Abv, 5394 12001 & Abv HYDROSTATIC SYSTEM

1

15KB0606

FITTING, HYD CONNECTOR

2

MOTOR See Illustration HYDROSTATIC MOTOR/ D1678

3

7113799

ELBOW

4

35C610

BOLT 5

5

6661334

FILTER ASSY

5

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

6

10K6

FITTING

7

6708457

HOSE

8

6706790

HOSE

9

6714081

HOSE

10

PUMP See Illustration HYDROSTATIC PUMP/ D1607

11

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17079

12

21KB1010

FITTING, HYD TEE

13

7113264

TUBELINE

14

6715568

HOSE

15

6515078

POPPET

16

6708545

TUBE

17

6708544

TUBE

18

79K10

O RING 10

19

7113280

TUBELINE

20

7112770

OIL COOLER

21

6729872

TUBE

22

6559518

ADAPTER

23

6564884

SPRING

24

6565550

PORT BLOCK

25

21KB0606

FTG HYD STRAIGHT TEE

26

79K6

O RING 10

27

6715718

ELBOW

28

5HM35

HOSECLAMP constant tension

29

6714510

HOSE

30

15KB0808

FITTING, HYD CONNECTOR

31

15KB0810

FITTING, HYD CONNECTOR straight

31

18KB0810

FITTING, HYD ELBOW 45 degree

32

79K8

O RING 10

33

6715525

TEE

34

6715715

FITTING

35

79K12

O RING 10

36

6812815

FITTING

37

17KB1012

FITTING, HYD ELBOW

38

6670705

SWITCH, PRESS OIL HYD hyd charge pressure - W/3-pin conn.

39

6563920

FILTER

40

86F7

LOCK NUT

41

35C616

BOLT 5

42

6563914

WASHER

43

30H42

CLAMP

44

83D6

NUT 5
