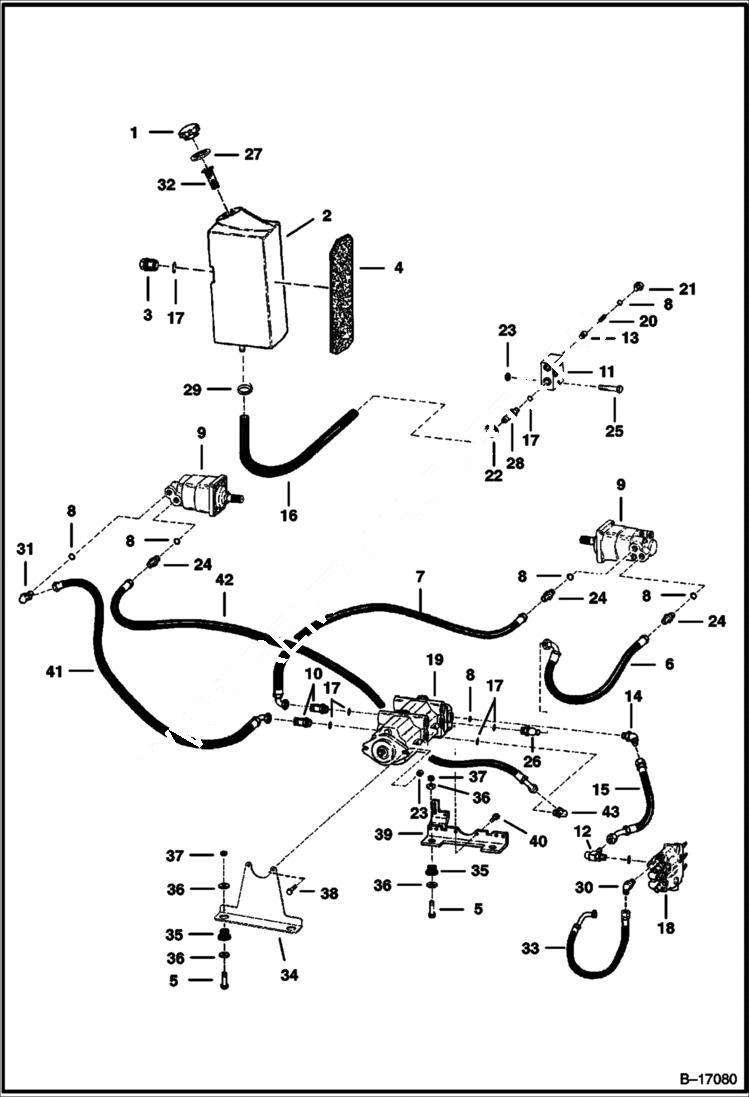

Запчасти Bobcat 500s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6727475

CAP, OIL HYD

2

6714559

TANK nylon

3

6665915

GAUGE Steel

4

6565012

INSULATION

5

35C840

BOLT

6

6729151

HOSE

7

6729148

HOSE

8

99K10

O'RING for tapered boss face

8

79K10

O RING 10 for flat boss face

9

MOTOR See Illustration HYDROSTATIC MOTOR/ D1678 HYDRO.

10

ADAPTER NLA - W/Ref. 17 - tapered boss face - Was 16KN00008B - A

10

16KB1212

FITTING, HYD CONNECTOR W/Ref. 17 - flat boss face

11

6565550

PORT BLOCK

12

ELBOW NLA - W/Ref. 8 - tapered boss face - Was 6804110 - A

12

6817299

ELBOW W/Ref. 8 - flat boss face

12

97K10

O-RING 10 flared end

13

6565620

POPPET

14

ELBOW NLA - W/Ref. 8 - tapered boss face - Was 18KN00007B - A

14

18KB1010

FITTING, HYD ELBOW W/Ref. 8 - flat boss face

14

97K10

O-RING 10 flared end

15

6730283

HOSE

16

6714560

HOSE

17

79K12

O RING 10 flat boss face

17

99K12

O RING tapered boss face

18

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17079 HYD.

19

PUMP See Illustration HYDROSTATIC PUMP/ D1607 HYDRO.

20

6562691

SPRING

21

6561811

PLUG Charge pressure relief valve - W/Ref. 8, 13 & 21

22

5HM35

HOSECLAMP constant tension

23

83D6

NUT 5 Was 95D000006B - B

24

ADAPTER NLA - W/Ref. 8 - tapered boss face - Was 15KV00007B - A

24

15KB1010

FITTING, HYD CONNECTOR W/Ref. 8 - flat boss face

24

97K10

O-RING 10 flared end

25

31C640

BOLT

26

ELBOW NLA - W/Ref. 17 - tapered boss face - Was 18KN00008B - A

26

18KB1212

FITTING, HYD ELBOW W/Ref. 17 - flat boss face

26

97K12

O'RING flared end

27

6700631

GASKET

28

6715715

FITTING W/Ref. 17 - tapered boss face

29

5HM42

HOSECLAMP constant tension

30

17KB0610

FITTING See Illustration HYDRAULIC CONTROL VALVE/ B17079 USED WITH 6680012 MAIN RELIEF VALVE - WAS 1300913B - A

31

ELBOW NLA - W/Ref. 8 - tapered boss face - Was 18KN00007B - A

31

18KB1010

FITTING, HYD ELBOW W/Ref. 8 - flat boss face

32

7120881

SCREEN, FILLER Was 6569219 - A

33

6731482

HOSE 45 degree end

33

6716463

HOSE 90 degree end

34

6728634

MOUNT

35

6560633

DAMPENER

36

6564692

WASHER

37

85D8

NUT, 5

38

35C624

BOLT Was 35C000620B - B

39

6706536

MOUNT

40

17C536

BOLT

41

6729150

HOSE

42

6729149

HOSE

43

ELBOW NLA - W/Ref. 17 - tapered boss face - Was 17KV00008B - A

43

17KB1212

FITTING, HYD ELBOW W/Ref. 17 - flat boss face

43

97K12

O'RING flared end
