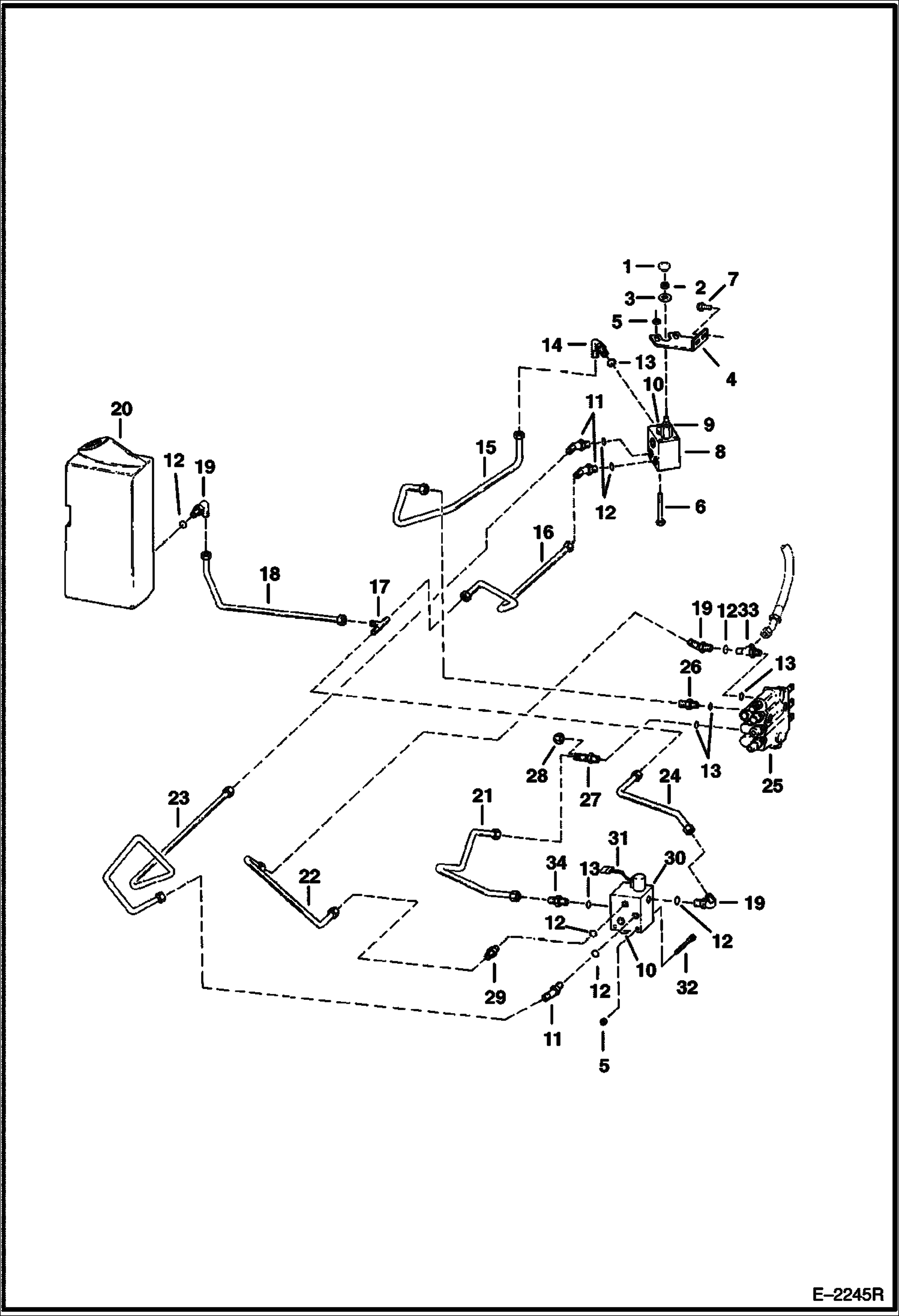

Запчасти Bobcat 500s LIFT CONTROL SYSTEM HYDRAULIC SYSTEM

1

KNOB NLA - red round - lift lock valve - Was 6664858 - A

1

6737524

KNOB red square - Was 6668913 - A

2

7D4

NUT

3

6707101

SEAL Neoprene

4

6708171

MOUNT

5

83D5

NUT 5

6

17C568

BOLT

7

84G3716

SCREW 5

8

6664850

VALVE See Illustration LIFT LOCK VALVE/ B17428 LIFT LOCK - W/REF. 1-3, 9 & 10

9

6665490

VALVE Manual pull

9

6666828

SEAL KIT

10

6665610

VALVE

10

6665612

SEAL KIT

11

ELBOW NLA - W/Ref. 12 - tapered boss face - Was 18KV00005B - A

11

97K6

O RING for flared end

11

18KB0606

FITTING, HYD ELBOW W/Ref. 12 - flat boss face

12

79K6

O RING 10 for flat boss face

12

99K6

O RING for tapered boss face

13

79K10

O RING 10 for flat boss face

13

99K10

O'RING for tapered boss face

14

ELBOW NLA - W/Ref. 13 - tapered boss face - Was 6715716 - A

14

17KB0810

FITTING, HYD ELBOW W/Ref. 13 - flat boss face

14

97K8

O-RING flared end

15

6708174

TUBE

16

6708410

TUBE

17

TEE NLA - tapered boss face - Was 10KN00005B - A

17

10K5

TEE flat boss face

18

6708408

TUBE

19

ELBOW NLA - W/Ref. 12 - tapered boss face - Was 17KV00005B - A

19

17KB0606

FITTING W/Ref. 12 - flat boss face

19

97K6

O RING flare end

20

6714559

TANK Hydraulic

21

6708177

TUBE

22

6708178

TUBE

23

6732418

TUBE

24

6708180

TUBE

25

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17079

26

6715184

ADAPTER W/Ref. 13 - tapered boss face

26

15KB0810

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

26

97K8

O-RING flare end

27

TEE NLA - W/Ref. 13 - tapered boss face - Was 6715187 - A

27

21KB0810

FITTING, HYD TEE W/Ref. 13 - flat boss face

27

97K8

O-RING flare end

28

36K6

CAP

29

FITTING NLA - W/Ref. 12 - tapered boss face - Was 15KV00005B - A

29

15KB0606

FITTING, HYD CONNECTOR W/Ref. 12 - flat boss face

29

97K6

O RING flare end

30

6664849

VALVE See Illustration TILT LOCK VALVE/ B17427 TILT LOCK - W/REF. 10 & 31

31

6672471

VALVE, SOLENOID See Illustration TILT LOCK VALVE/ B17427

31

6667687

VALVE, STEM SOLENOID

31

6671026

COIL

31

6665487

SEAL KIT

32

17C552

BOLT

33

ELBOW NLA - W/Ref. 13 - tapered boss face - 6804110 - A

33

6817299

ELBOW W/Ref. 13 - flat boss face

33

97K10

O-RING 10 flared end - Was 96K000010B - A

34

18KB0810

FITTING, HYD ELBOW
