Запчасти Bobcat 500s OPERATOR CAB MAIN FRAME

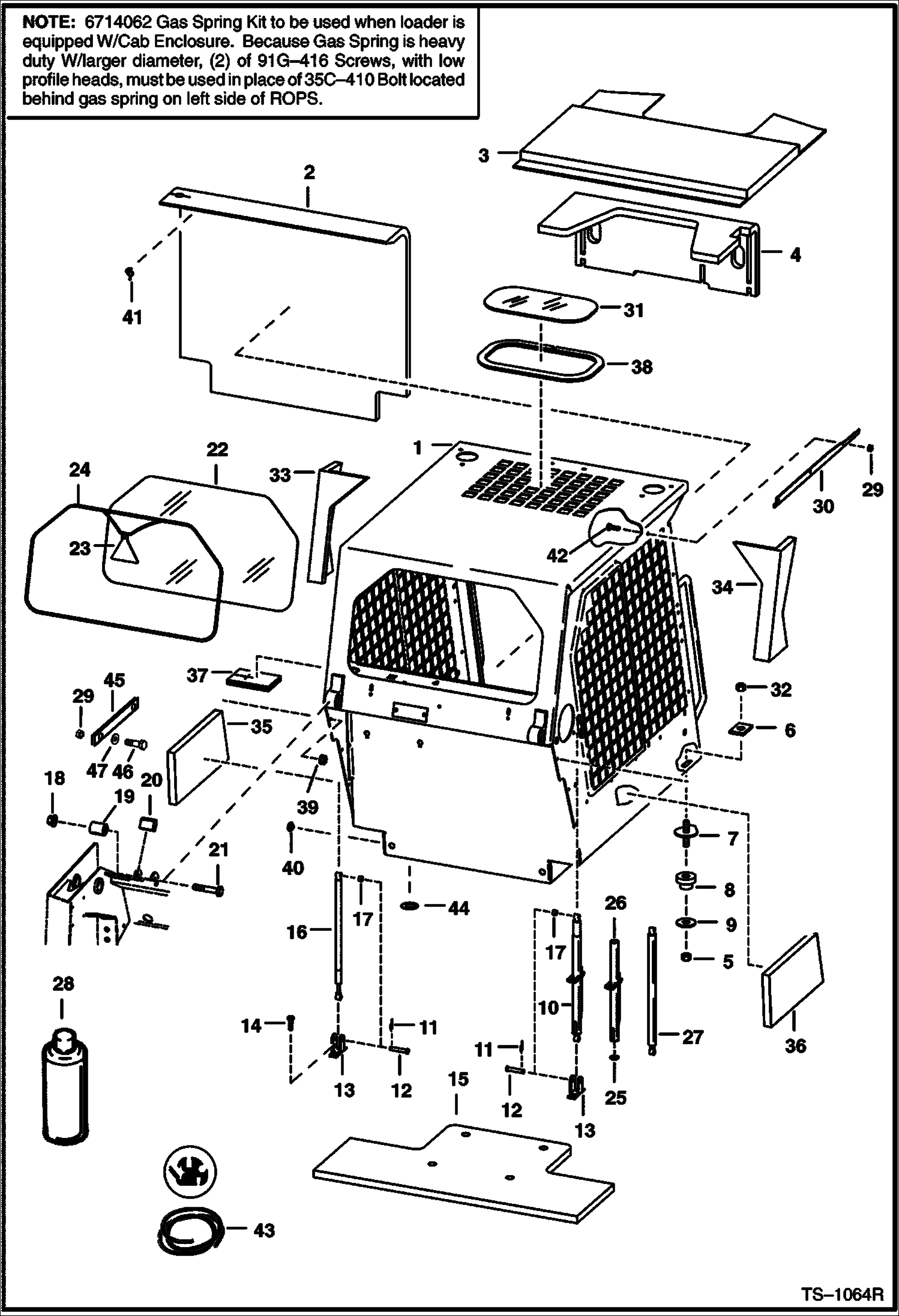

Схема запчастей Bobcat 500s - OPERATOR CAB MAIN FRAME

Артикул

Название

Примечание

Количество

1

6701957

OPERATOR CAB Does NOT include cab decals

2

6708682

INSULATION seat back - Use W/Ref. 41 - Was 6707326 - A

3

6706155

INSULATION cab top - Use W/Ref. 41

3

6715094

INSULATION Cab Top - Use W/Ref. 41 - Was 6712537 - A

4

6706277

INSULATION control panel - Use W/Ref. 41

5

85D8

NUT, 5

6

6553709

WASHER

7

6702971

BOLT

8

6560633

DAMPENER

9

6515817

WASHER

10

GAS SPRING NLA - Order Ref. 25-27

11

6631418

RING, RETAINING

12

6567743

PIN

13

6706349

MOUNT

14

84G3112

BOLT 5

15

6715095

INSULATION Seat Pan - Use W/Ref. 28 - Was 6706982 - A

16

6700171

GAS SPRING w/o lock - also order 6675257, clevis

16

6714062

KIT W/O Lock - Heavy Duty Gas Spring - SEE NOTE

16

91G416

SCREW SEE NOTE

16

6900531

INSTRUCTIONS For Kit 6714062

17

6567604

SPACER

18

53D10

NUT Was 83D-10 - B

19

6562602

BUSHING rubber

20

6579613

STOP cab tilt

21

17C1056

BOLT

22

WIND.REAR NLA - Order 6729730 window - Also Order 2134mm (84'') of 6675387 seal and 6554149 cord - Was 6701651 - A

23

6731478

EXIT TAG Was 6559515 - A

24

EXTRUSION NLA - 100''(2540 mm) - Order Ref. 43

24

CORD NLA - 100''(2540 mm) - Order Ref. 43 - Also Order Ref. 23 (6731478 exit tag)

25

6701174

WASHER

26

6708189

TUBE stop

27

6664205

GAS SPRING also order 6675257, clevis

27

6675257

CLEVIS

28

6652818

ADHESIVE insulation - 24 oz. spray can

29

83D4

NUT 10

30

6703159

TRACK RH

30

6703160

TRACK LH

31

6705735

WINDOW

32

59D8

NUT 5

33

6715098

INSULATION Cab Back - Use W/Ref. 41 - Was 6706156 - A

34

6715097

INSULATION Cab Back - Use W/Ref. 41 - Was 6706157 - A

35

6703451

INSULATION cab back - Use W/Ref. 28

36

6703452

INSULATION cab back - Use W/Ref. 28

37

6703455

INSULATION cab back - Use W/Ref. 28

38

6664351

SEAL Use W/cab headliner

38

6665012

SEAL Use W/O cab headliner

39

83D5

NUT 5

40

6664374

PLUG heater hole

41

6664310

CLIP insulation

42

35C410

BOLT 5

43

6665568

EXTRUSION bulk - sold per foot - Was 6658352 - B

43

6554149

CORD, BULK/FT bulk - sold per foot

44

6571991

GUIDE

45

6736126

COVER

46

35C410

BOLT 5

47

25E13

WASHER 5

Выбрано товаров: 56
