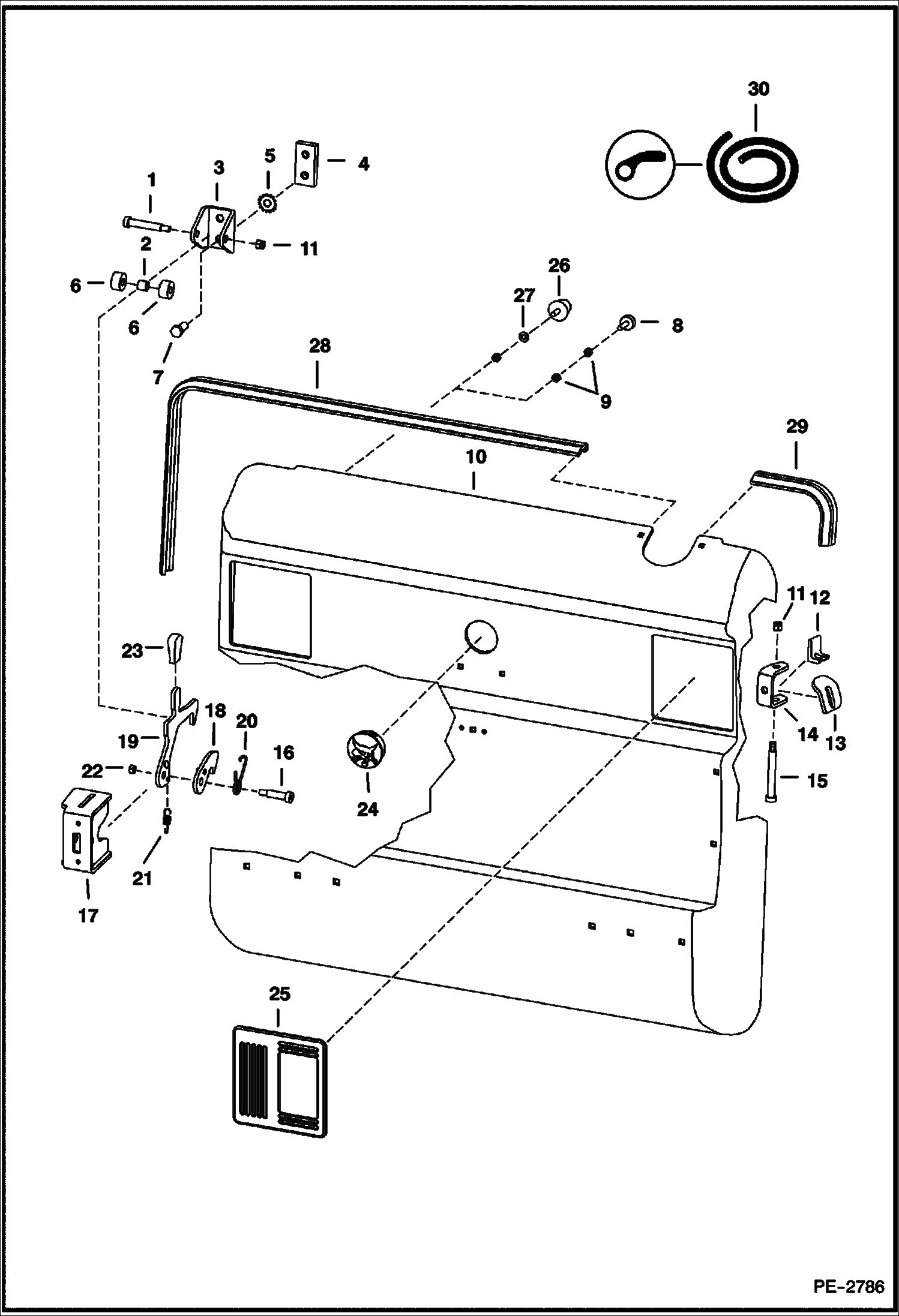

Запчасти Bobcat 500s REAR DOOR MAIN FRAME

1

38C840

BOLT carriage

2

6809734

BUSHING

3

6809727

CHANNEL

4

6810802

BAR threaded striker - Was 6719525 - B

5

6675273

WASHER lock

6

6809726

ROLLER

7

17C820

BOLT

8

6655399

BUMPER flat - Use W/Ref. 10 (NLA/Rear Door)

9

61D5

NUT

10

REAR DOOR NLA - W/two hole bumper brace -Order 6729991 Rear Door & (2) of Ref. 26 - Was 6729991 - A

10

6729991

REAR DOOR W/one hole bumper brace

11

59D6

NUT

12

6719766

STOP

13

6714126

DOOR STOP

13

6714126

DOOR STOP

14

6733575

HINGE, REAR DOOR weld on - Was 6711526 - A

15

6809845

BOLT Was 38C856 - B

16

38C824

SCREW

17

6729939

LATCH PLATE weld on

18

6733667

LATCH, REAR DOOR Was 6811910 - A

19

6732715

LATCH Was 6729685 - A

20

6810132

SPRING

21

6810141

SPRING

22

85D6

NUT, 5

23

6564452

GRIP

24

6718796

PLUG

25

6670287

COVER

26

6733616

BUMPER tapered - Use W/Ref. 10 (6729991 Rear Door)

27

61D5

NUT

28

SEAL NSS - 48.00'' long - Order Ref 30

29

SEAL NSS - 9.50'' long - Order Ref 30

30

SEAL - BULK/FT NLA - bulk - sold per foot - Order 7160443 seal kit-contains 3 pieces custom cut to seal complete door - Was 7108677
