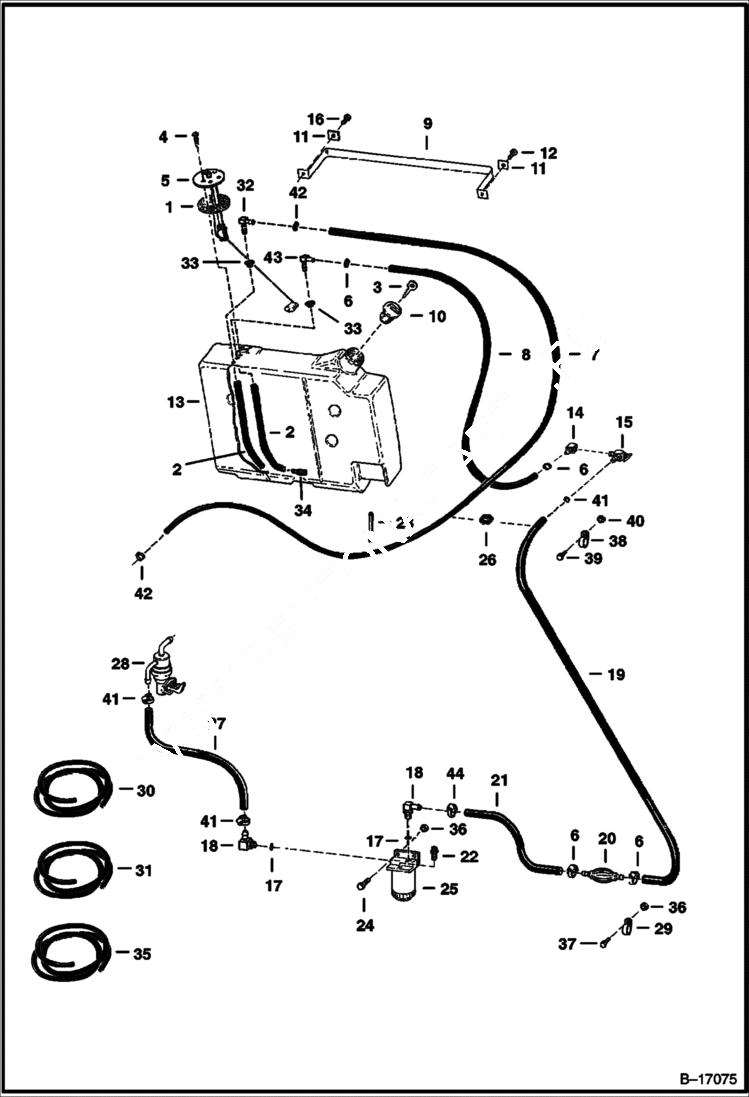

Запчасти Bobcat 500s FUEL SYSTEM MAIN FRAME

1

6962762

SEAL Was 6630972 - B

2

6715001

HOSE

3

6587458

KEY

4

87G1010

SCREW

5

6568175

SENDER, FUEL

6

5HM13

CLAMP Use W/.25'' I.D. hose

6

5HM14

CLAMP Use W/.31'' I.D. hose - Was 5HM00015B - B

7

HOSE NLA - Order Ref. 35

8

HOSE NLA - .25'' I.D. - Order Ref. 30

8

HOSE NLA - .31'' I.D. - Order Ref. 31

9

6707564

BAND

10

6661114

CAP. DIESEL Green

10

6661696

CAP, FUEL LOCKING locking -W/Ref. 3

11

6559447

WASHER square

12

84G3720

BOLT

13

6707517

TANK

14

6598753

ELBOW Not installed in newer machines

15

6632593

VALVE shut-off - Not installed in newer machines

16

84G3712

BOLT 5

17

99K5

O-RING for tapered boss face

17

79K5

O RING 10 for flat boss face

18

6715183

ELBOW W/Ref. 17

19

HOSE NLA - .25'' I.D. - Order Ref. 30

19

HOSE NLA - .31'' I.D. - Order Ref. 31

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

20

6667170

PUMP 193 mm (7.6'') long - Was 6657734

21

HOSE NLA - .25'' I.D. - Order Ref. 30

21

HOSE NLA - .31'' I.D. - Order Ref. 31

22

6658180

PLUG, BLEED

23

6513471

CLAMP

24

17C516

BOLT

25

6667353

FILTER ASSY W/Ref. 22

25

6667352

FILTER, FUEL W/SEPARATOR 12

25

72F1

FITTING

26

6515603

GROMMET

27

HOSE NLA - Order Ref. 31

28

6672427

FUEL PUMP See Illustration INJECTION PUMP & FUEL PUMP/ B15036 FUEL

29

30H34

CLAMP Was 30H000031B - B

30

6577821

HOSE bulk - sold per foot - .25'' ID

31

6577822

HOSE bulk - sold per foot - .3125'' ID

32

6598908

ELBOW Was 6681462 - A

33

6553411

BUSHING 0.38'' ID

34

6650239

SCREEN, FUEL PICKUP

35

6578169

HOSE bulk - sold per foot - 0.19'' ID

36

61D5

NUT

37

17C512

BOLT 5

38

31H25

HOSE CLAMP

39

35C416

BOLT

40

85D4

NUT 5

41

5HM14

CLAMP constant tension

42

42HS04

CLAMP, HOSE

43

6598908

ELBOW Use W/.25'' I.D. hose

43

7126672

ELBOW Use W/.31'' I.D. hose - Was 6666302

44

5HM14

CLAMP Use W/.25'' I.D. hose

44

5HM15

CLAMP Use W/.31'' I.D. hose
