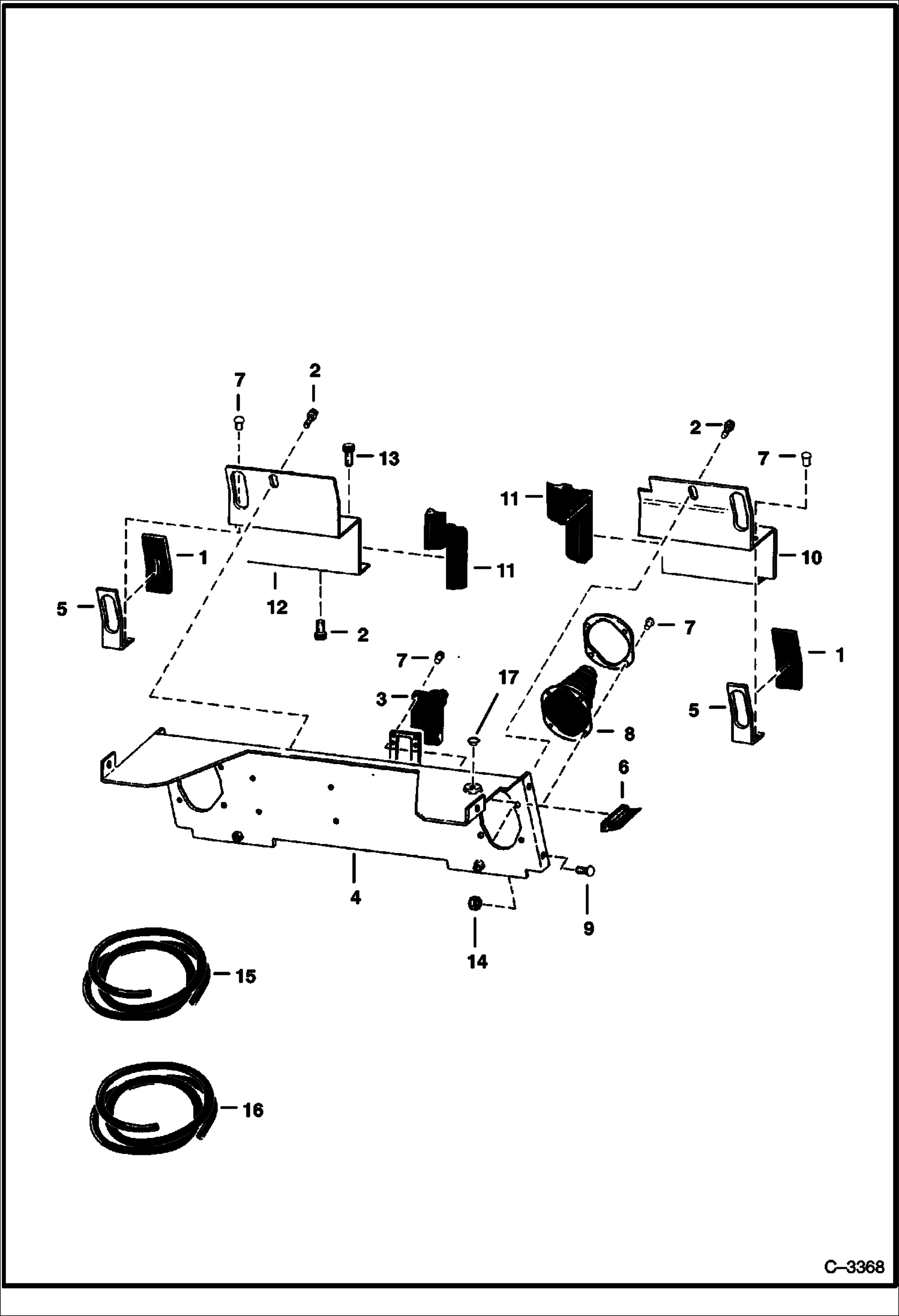

Запчасти Bobcat 500s PANELS MAIN FRAME

1

6564976

SEAL foam block

2

84G3716

SCREW 5

3

BOOT NLA - W/Metal Insert - Was 6571648 - A

4

6707579

SHIELD

5

6564982

RETAINER

6

MOULDING NLA - 4.50''(114.3mm) long - Order Ref. 15

7

6630207

RIVET 5

8

6532127

BOOT rubber

9

37C616

BOLT carriage

10

6564670

SHIELD

11

MOULDING NLA - 9.50''(241.3mm) long - Order Ref. 16

12

6564671

SHIELD

13

84G3712

BOLT 5

14

57D6

NUT 5

15

6646705

SEAL bulk - sold per foot

16

6676396

SEAL Bulk - Sold per foot - Was 6513152 - B

17

5289686

PLUG black - 0.38'' dia hole
