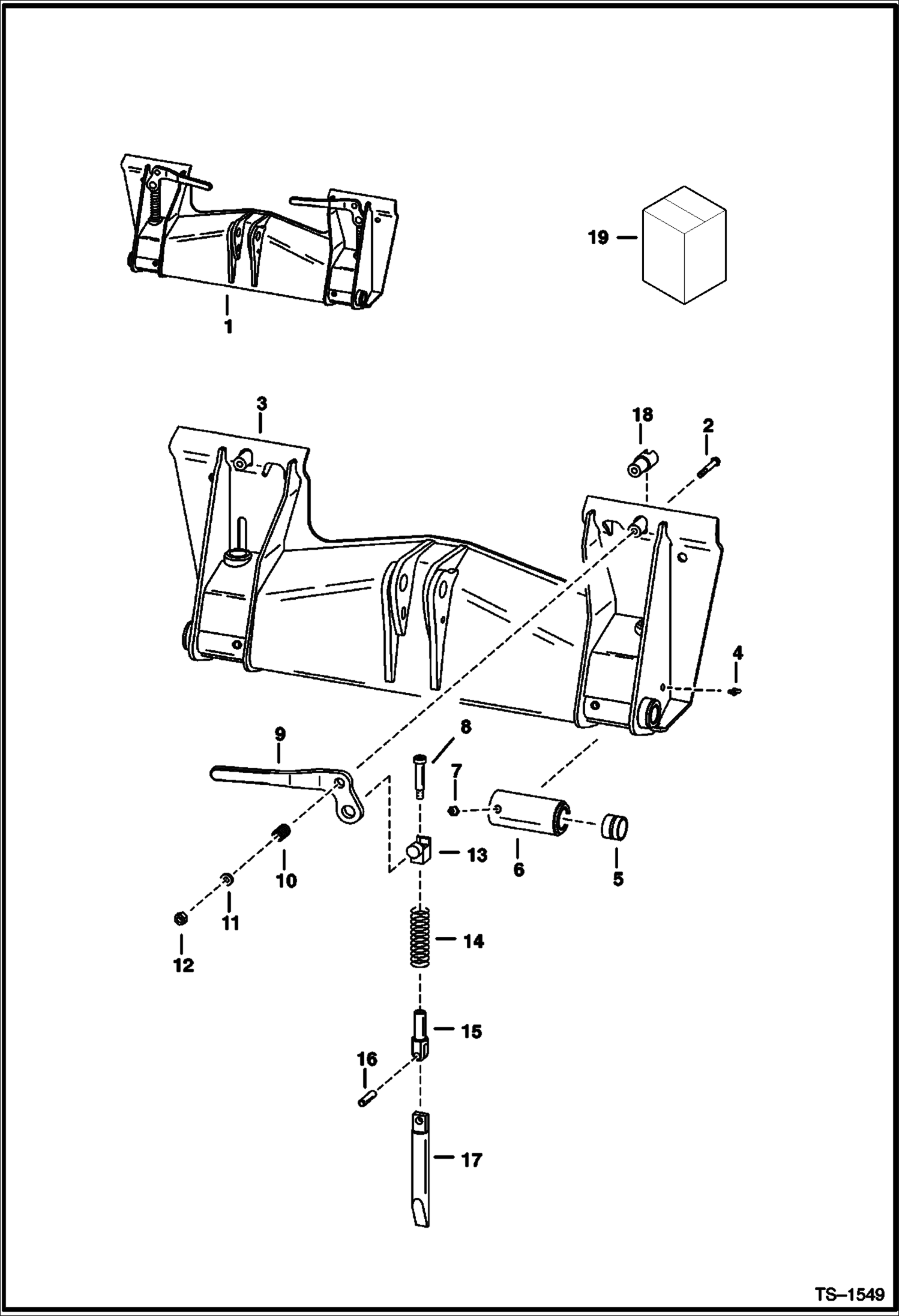

Запчасти Bobcat 500s BOB-TACH MAIN FRAME

1

6732079

BOB-TACH Ref. 2 - 18

2

17C644

BOLT

3

FRAME NLA

4

10H35

FITTING, GREASE 10

5

6730997

BUSHING, WELD-ON press fit

6

6731979

BUSHING Weld-on - also order Ref. 5

7

743332

FITTING, GREASE 5

8

6728473

BOLT, SHOULDER pre-applied thread locker

9

6702904

LEVER, BOB-TACH RH

9

6702903

LEVER, BOB-TACH LH

10

6704453

SPRING

11

6557831

WASHER

12

85D6

NUT, 5

13

6704240

PIVOT ASSY.

14

6578253

SPRING, COMPRESSION Was 6562018 - A

15

6704248

PIVOT, WEDGE

16

14J5032

PIN, STRAIGHT

17

6737191

WEDGE Was 6704242 - A

18

6702958

BUSHING, WELD-ON
