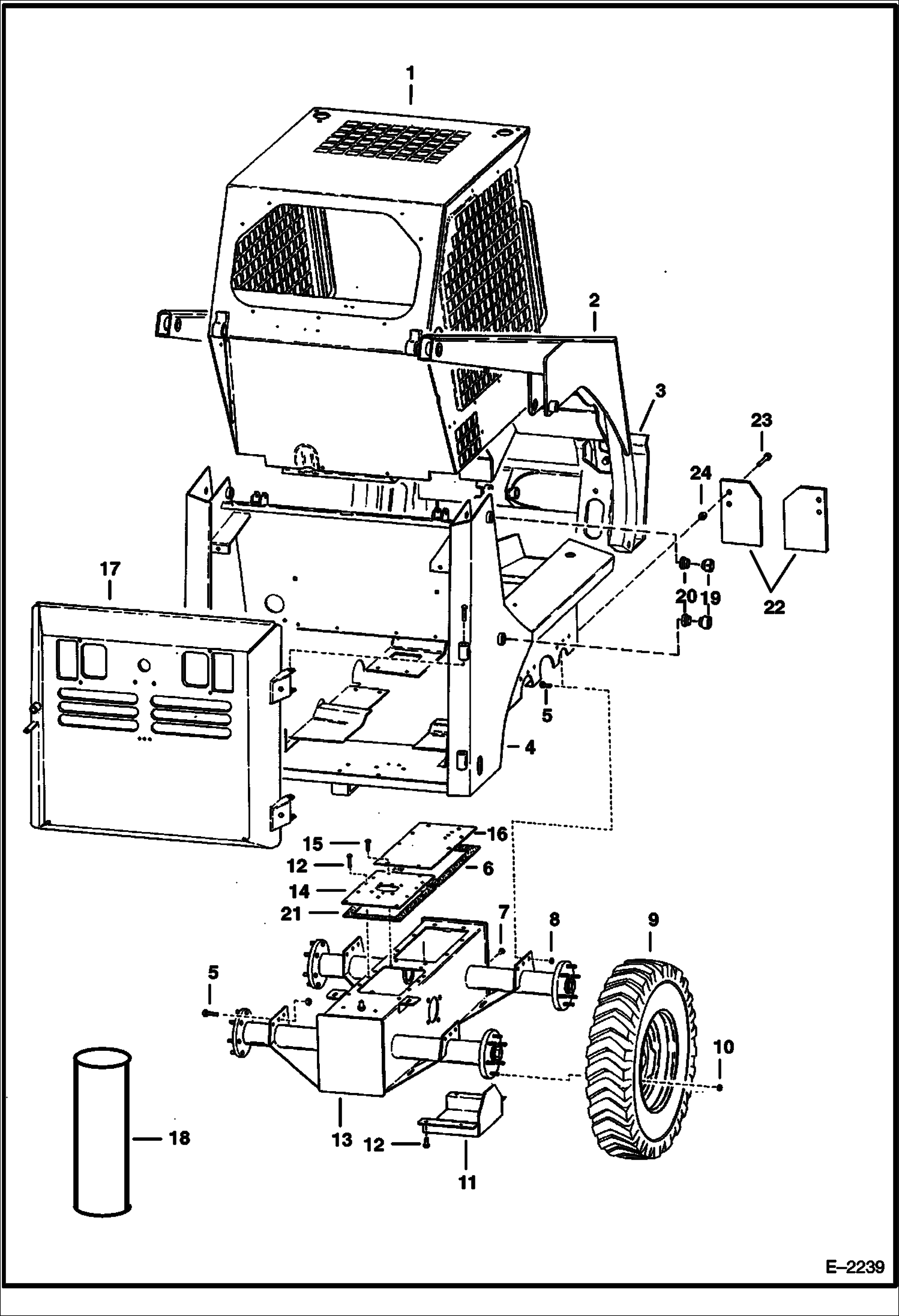

Запчасти Bobcat 500s MAIN FRAME MAIN FRAME

1

OPERATOR CAB See Illustration OPERATOR CAB/ TS1064R

2

LIFT ARM See Illustration LIFT ARMS & BOB-TACH/ B17712

3

BOB-TACH See Illustration BOB-TACH/ B17714

4

MAIN FRAME NLA - Was 6707559 - A

5

31C820

BOLT

6

6703097

GASKET, TRANS COVER

7

40K12

PLUG

8

83D8

NUT 5

9

TIRE & RIM See Illustration TIRES & RIMS/ B17774

10

6564669

NUT, 10 wheel - 9/16'' - Was 6557188 - D

11

6564918

COVER Was 6703916 - B

12

84G3716

SCREW 5

13

CHAINCASE See Illustration DRIVE TRAIN/ B17076

14

COVER See Illustration DISC BRAKE/ B17718

15

84G3712

BOLT 5

16

COVER See Illustration DISC BRAKE/ B17718

17

REAR DOOR See Illustration REAR DOOR/ B17716

18

6632501

SEALANT chaincase covers

19

6564582

BUSHING Weld On

20

6564583

BUSHING Weld On

21

6706968

GASKET

22

COUNTERWEIGHT NLA - Was 6707592 - A

23

17C1036

BOLT

24

61D10

NUT
