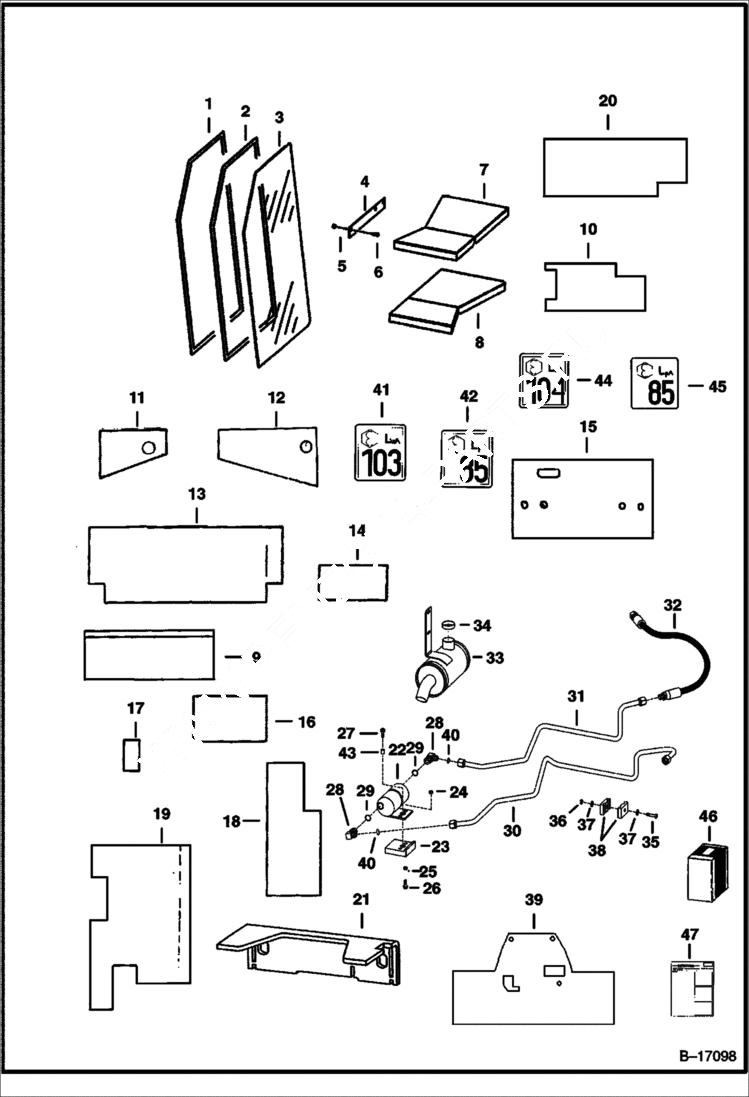

Запчасти Bobcat 500s SOUND OPTION ACCESSORIES & OPTIONS

1

6631549

HOOK Scotchmate

2

6631548

LOOP Scotchmate

3

6702731

WINDOW, CAB cab

4

6700875

RETAINER window

5

83D4

NUT 10

6

35C410

BOLT 5

7

6732722

INSULATION crossmember - L.H. - Was 6704721 - A

8

6732723

INSULATION crossmember - R.H. - Was 6704722 - A

9

6727299

INSULATION cab back - Was 6715096 - B

10

6708519

INSULATION fender

11

6579423

INSULATION panel

12

6700692

INSULATION panel

13

6579422

INSULATION panel

14

6579418

INSULATION cab

15

6715106

INSULATION tailgate

16

6715667

INSULATION blower housing

17

6579694

INSULATION steering lever

18

6715666

INSULATION fender

19

6579983

INSULATION fender

20

6579987

INSULATION fender - Was 6708518 - B

21

6715429

INSULATION steering panel

22

6659982

MUFFLER hydraulic

23

6705333

MOUNT

24

85D6

NUT, 5

25

6562619

BUSHING

26

35C616

BOLT 5

27

84G3724

BOLT

28

6715651

ELBOW W/Ref. 29 - Was 1302104B - B

29

99K12

O RING Was 79K000012B - B

30

6715607

TUBELINE

31

6715608

TUBELINE

32

6628362

HOSE Was 6715668 - A

33

6714468

MUFFLER air intake

34

6715605

GASKET air muffler

35

17C528

BOLT

36

61D5

NUT Was 61D000008B - B

37

872229

WASHER

38

6701893

CLAMP

39

6715661

INSULATION seat pan

40

97K10

O-RING 10

41

6579402

DECAL sound level warning - Was 6579403 - B

42

6579384

DECAL sound level warning - Was 6579385 - B

43

6715744

BUSHING

44

6731994

DECAL, DECIBEL noise level - 104db

45

6579385

DECAL 85 decibels

46

7113330

KIT sound - W/Ref. 1, 2, 7-9, 15, 21, 39 & 47

47

6904211

INSTRUCTIONS for Ref. 46
