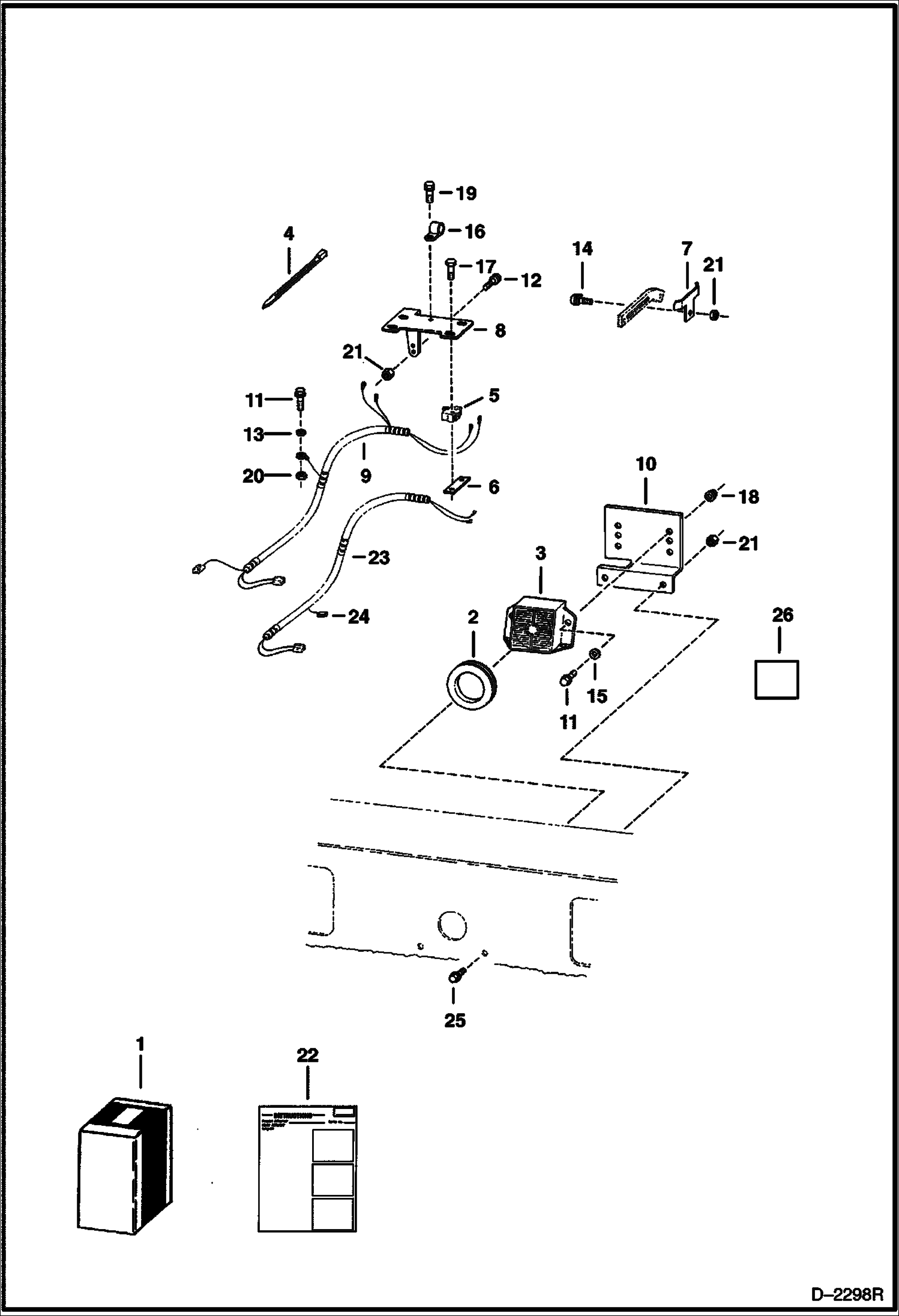

Запчасти Bobcat 500s BACKUP ALARM ACCESSORIES & OPTIONS

1

7130125

KIT Backup alarm - Ref. 2-26 - Was 6708572 - A

2

6577545

GROMMET

3

6651512

ALARM, BACK-UP Was 6599931 - A

3

6668879

DECAL

4

6624289

STRAP, TIE Was 6633498 - A

5

6646781

SWITCH Alarm

6

6702593

SPACER Mounting

7

6703974

BRACKET Switch

8

6703976

MOUNT Switch

9

7130124

HARNESS Was 6704358 - B

10

6733970

MOUNT alarm - Was 6707726 - A

11

17C412

BOLT 5

12

17C512

BOLT 5

13

6E4

WASHER 10

14

7C512

SCREW

15

25E13

WASHER 5

16

30H22

CLIP Insulated

17

84G1320

BOLT Was 59G620 - B

18

83D4

NUT 10

19

84G3110

SCREW

20

85D4

NUT 5 Was 91D000004B - B

21

85D5

NUT 5 Was 91D000005B - B

22

6724203

INSTRUCTIONS

23

6715659

HARNESS Use on machines without rear lights - comes W/ 6672492

24

6672492

RETAINER

25

37C512

BOLT

26

6737189

DECAL, WARNING backup alarm
