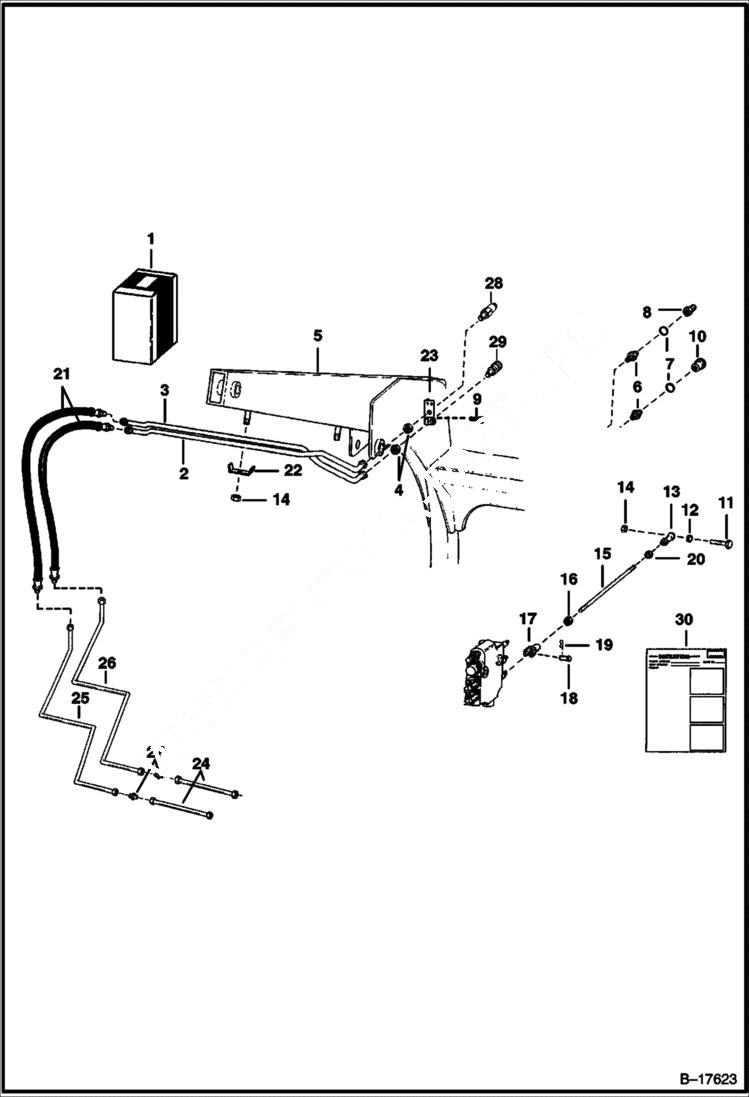

Запчасти Bobcat 500s AUXILIARY HYDRAULICS KIT ACCESSORIES & OPTIONS

1

6715321

KIT aux. hyd. - Ref. 2-4, 6-28

2

6713171

TUBE

3

6713172

TUBE

4

86F7

LOCK NUT

5

LIFT ARM See Illustration LIFT ARM & BOB-TACH/ B17590

6

CONNECTOR NLA - W/Ref. 7 - flat boss face - Was 6715185 - A

6

97K10

O-RING 10 flared end

6

6812816

ADAPTER W/Ref. 7 - flat boss face

7

99K12

O RING

7

79K10

O RING 10 tapered boss face

8

COUPLER NLA - Male - flush face - Order Ref. 28 - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

84G3112

BOLT 5

10

COUPLER NLA - Female - flush face - Order Ref. 29 - Was 6672960 - A

11

17C620

BOLT

12

6564535

SPACER

13

6512955

SWIVEL L.H. threads

14

95D6

NUT Was 91D000006B - A

15

6567057

ROD

16

8D6

NUT 5

17

6564655

CLEVIS

18

PIN NLA - WAS 6564654 - A

19

6513495

COTTER PIN

20

13D6

NUT

21

6715570

HOSE Use W/Ref. 24, 27, 6709867 & 6715817 tubes

21

6731501

HOSE Use W/ 6731500 tube & 6731499 tube

22

6502203

CLAMP

23

6713850

MOUNT Was 6711672 - B

24

6709866

TUBE

25

6709867

TUBE Use W/Ref. 24, 27 & 6715570 hose

25

6731500

TUBE Use W/6731501 hose

26

6715817

TUBE Use W/Ref. 24, 27 & 6715570 hose

26

6731499

TUBE Use W/6731501 hose

27

87F6

FITTING flat boss face

27

87F6

FITTING with o-rings - tapered boss face - Was 87FN00006B - A

27

97K8

O-RING for flared ends

28

6676444

COUPLER, FF MALE male - flush face

29

6676446

COUPLER, FF FEMALE female - flush face

30

6724257

INSTRUCTIONS
