Запчасти Bobcat 500s WATER PUMP (For Kubota D1105 engine) POWER UNIT

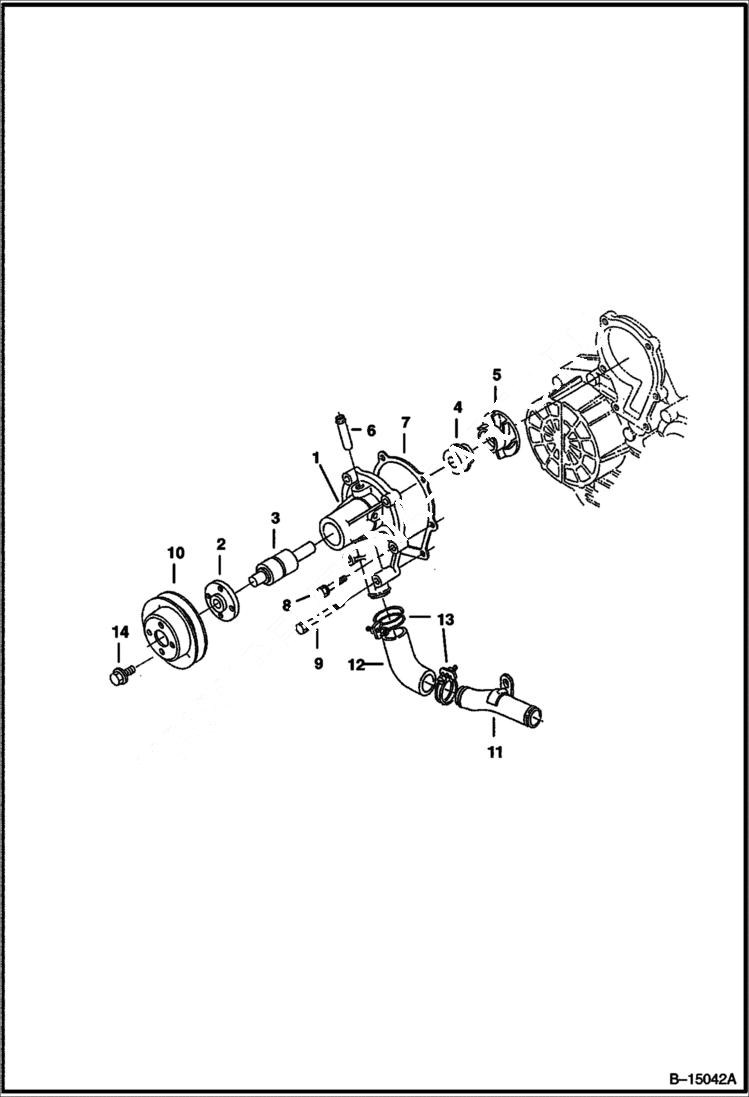

Схема запчастей Bobcat 500s - WATER PUMP (For Kubota D1105 engine) POWER UNIT

Артикул

Название

Примечание

Количество

1

6680278

WATER PUMP W/Ref. 2 - 6

2

6680279

FLANGE

3

6657612

BEARING

4

6680280

SEAL

5

6657611

IMPELLER

6

6652745

PIPE

7

6657610

GASKET Was 6680281 - A

8

4CM630

BOLT

9

6657414

BOLT

10

6657585

PULLEY

11

6672435

PIPE

12

6680282

PIPE

13

6657691

CLAMP

14

29CM612

BOLT, FLANGED Was 6652762 - A

Выбрано товаров: 14
