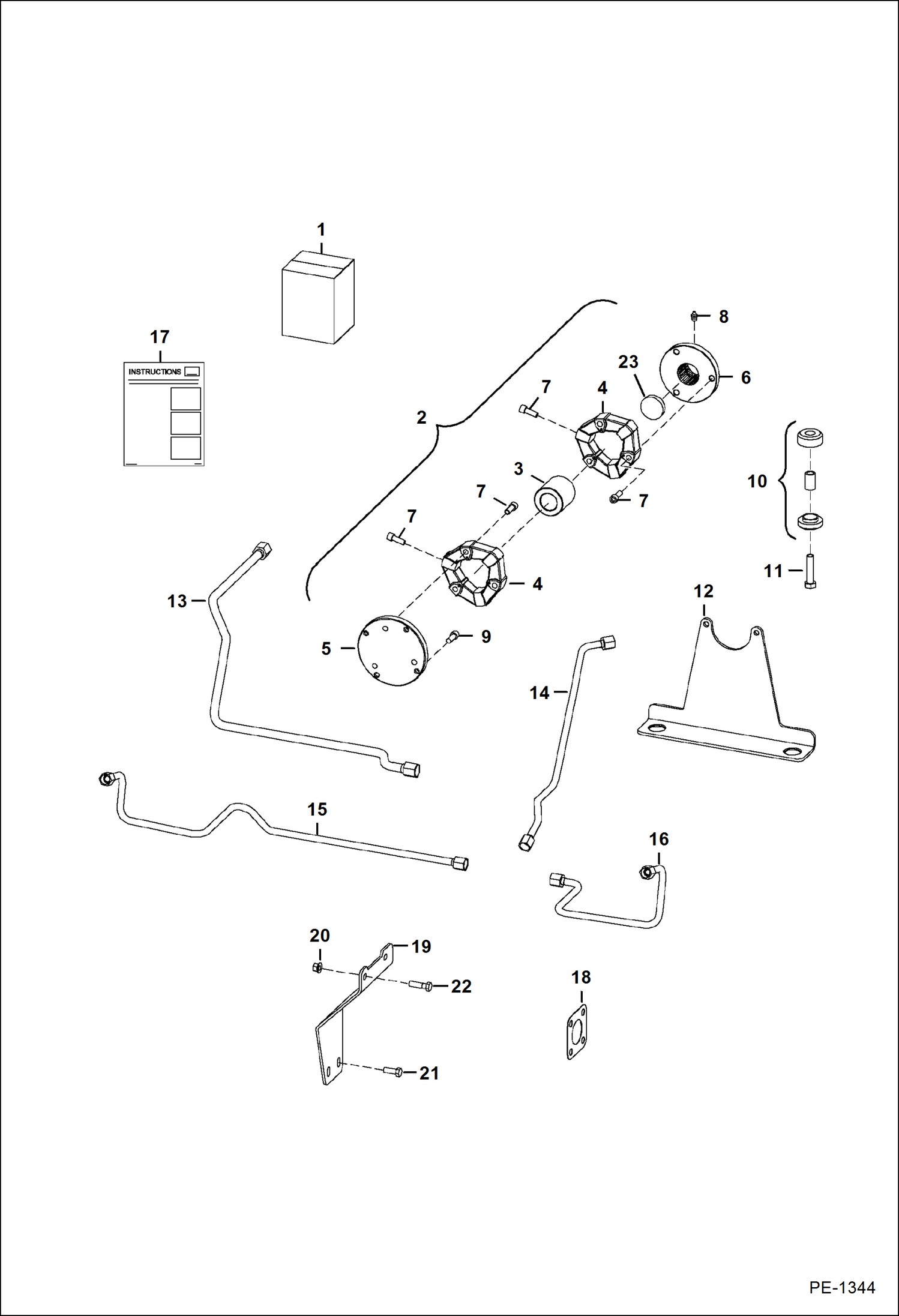

Запчасти Bobcat 500s DRIVE COUPLER KIT (S/N 516313344 & Below) POWER UNIT

1

6730019

KIT, DRIVE COUPLER drive coupler - W/Ref. 2-17 - S/N 11485 & Bel must also change pump shaft to tapered shaft

2

6730224

COUPLER, DRIVE HYD ASSY W/Ref. 3-8 & 23

3

6677653

SPACER

4

6677654

ELEMENT

5

6728641

ADAPTER

6

7106115

HUB, ADAPTER Was 6728809 - C

7

6678768

BOLT Was 6729747 - A

8

10H35

FITTING, GREASE 10

9

6678045

BOLT

10

6677919

MOUNT engine

11

17C836

BOLT

12

6728634

MOUNT pump

13

6729872

TUBE

14

6730970

TUBE available only as an assembly W/two danger decals installed - Was 6729874 - A

14

15

6729881

TUBE

16

6729883

TUBE

17

6901381

INSTRUCTIONS See Ref. 1

18

6575580

GASKET muffler

19

6733837

SUPPORT muffler

20

83D6

NUT 5

21

17C616

BOLT 5

22

6733378

SCREW

23

12F114

PLUG expansion - Use W/Ref 6
