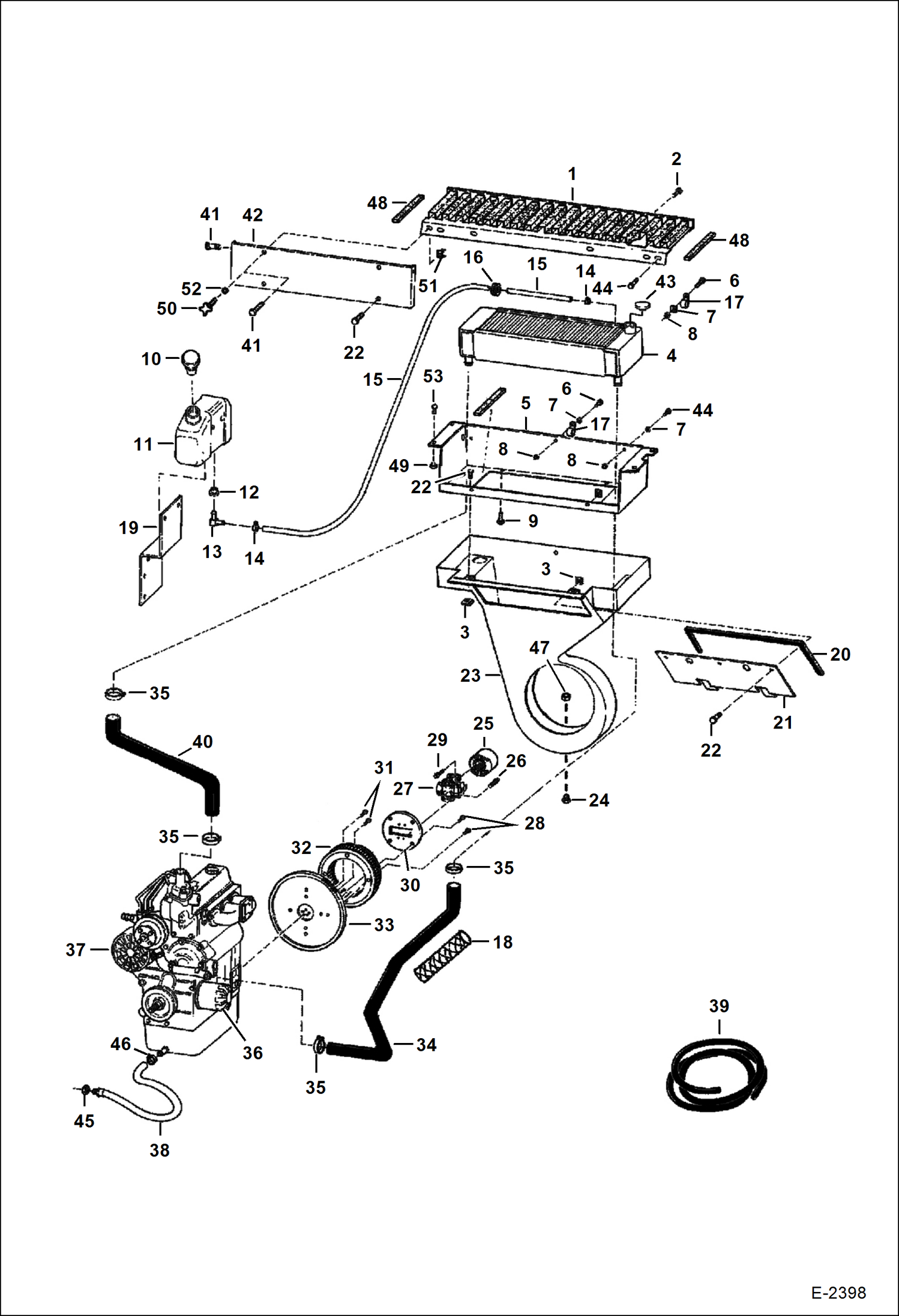

Запчасти Bobcat 500s ENGINE & ATTACHING PARTS POWER UNIT

1

7118025

SCREEN Was 6714663 - A

2

84G3716

SCREW 5

3

1323182

NUT

4

7009566

EXCHANGER, WATER RADIATOR Was 6672455 - A

5

6714830

MOUNT six slotted holes

5

6731063

MOUNT notched mounting tab

6

37C516

BOLT Was 6553808 - B

7

774220

NUT

8

83D5

NUT 5

9

35C510

BOLT

10

6702797

CAP

11

6576660

TANK, WATER COOLANT W/bottom molded barbed elbow

12

6553411

BUSHING

13

6553412

ELBOW

14

42HS04

CLAMP, HOSE Was 6515575 - A

15

6577822

HOSE bulk - sold per foot

16

1303932

GROMMET

17

30H34

CLAMP

18

6715561

HEAT SHIELD

19

6714054

MOUNT

20

6564969

STRIP foam

21

6715182

COVER

22

35C512

BOLT

23

6578684

HOUSING, BLOWER

24

RIVET NLA - Order 35C000620B & 59D000006B nut - Was 1316539B - A

24

35C620

BOLT 5

25

YOKE See Illustration UNIVERSAL JOINT/ B5715 See Illustration DRIVE COUPLER KIT/ PE1344 See Illustration UNIVERSAL JOINT/ B17600

26

94G510

BOLTS 5

27

6598347

U-JOINT See Illustration UNIVERSAL JOINT/ B5715 See Illustration DRIVE COUPLER KIT/ PE1344 See Illustration UNIVERSAL JOINT/ B17600

28

45C616

BOLT Was 17C000616B - B

29

94G512

BOLTS 5

30

6661636

BOLT Was 6657546 - B

31

6715869

ADAPTER See Illustration UNIVERSAL JOINT/ B5715 See Illustration DRIVE COUPLER KIT/ PE1344 See Illustration UNIVERSAL JOINT/ B17600 Was 6562873 - B

32

6578682

BLOWER WHEEL

33

6737178

FLYWHEEL W/Ring Gear - Was 6714076 - A

33

6510470

RING GEAR

34

6714059

HOSE

35

5HM35

HOSECLAMP

36

OIL FILTER See Illustration GEAR CASE/ B17088

37

ENGINE See Illustration ENGINE/ B17086

38

6715530

HOSE drain

39

6654139

MOULDING bulk - sold per foot - Was 6512686 - B

40

6714058

HOSE

41

84G3112

BOLT 5

42

6714976

COVER

43

6666606

RADIATOR CAP 7 psi

43

6646678

CAP 13 psi - Was 6673313 - A

43

7028463

CAP, RADIATOR 14 psi - for exchanger W/ 41,28 mm (1.63'') dia cap hole

44

10C512

BOLT Was 35C000516B - B

45

36K6

CAP

46

5HM20

CLAMP

47

59D6

NUT

48

SEAL NLA - 11.40'' (290 mm) long - Order Ref. 39

49

83D6

NUT 5

50

6678755

KNOB

51

6678785

NUT retaining

52

25E15

WASHER

53

35C614

BOLT Use W/6731063 mount
