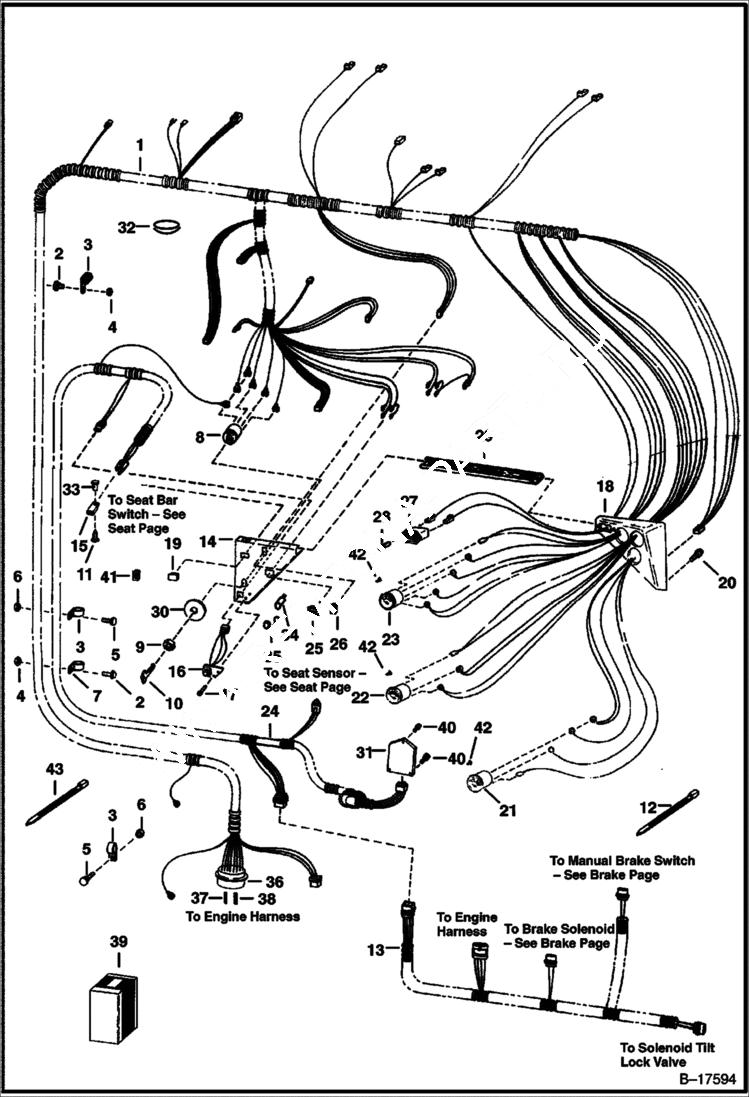

Запчасти Bobcat 500s CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6710501

HARNESS Domestic

1

6711832

HARNESS European

2

35C410

BOLT 5

3

30H56

CLIP

4

83D4

NUT 10

5

10C412

BOLT

6

61D4

NUT 5

7

30H29

CLAMP

8

6665606

SWITCH Ignition - W/Ref. 9 & 10

9

6674202

NUT Was 6598721 - B,D

10

KEY NLA - for 6665606 switch - Order 6693241- Was 6709527 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6665322

RIVET plastic female

12

6610510

TIE

13

6710313

HARNESS

14

6712152

PANEL L.H.

15

6665000

CLIP

16

6667905

SWITCH traction override

16

SWITCH NLA - traction/seat sensor override - order 6674220 - Was 6673005 - A

16

6674220

SWITCH, OVERRIDE TRACTION push to operate

17

6669225

BOLT

18

6708497

PANEL R.H.

19

6665314

PLUG Domestic

19

6665410

SWITCH European

20

6702642

SCREW

21

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

21

6669663

GAUGE eng temp - W/O clamp

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

23

6669665

FUEL GUAGE W/O clamp

24

6712134

HARNESS, CONTROLLER Domestic

24

6712135

HARNESS European

25

6668927

SWITCH glow plug - Was 6719038 - A

26

6636018

LIGHT indicator

27

6664886

HOURMETER

28

65G608

SCREW

29

6578780

CROSSMEMBER

30

6709027

PLATE for 6665606

31

CONTROLLER NLA - Order kit 6717699 - Was 6668767 - A

31

CONTROLLER NLA - order kit 6717699 - Was 6673002 - A

31

6680411

CONTROLLER Was 6674222 - A

32

6707674

PLUG round plug - 1.28''(32.5mm) hole in cab

33

6665321

RIVET plastic male

34

6664223

OUTLET Electrical - European

35

6664224

CAP European

36

6664584

CONNECTOR Was 6665683 - A

37

6664040

PIN

38

6664827

PIN

39

6724282

SWITCH KIT W/Ref. 8, 10, & 30

40

91G412

SCREW cross recess pan head - Was 17C000410B - B

40

25G412

CAPSCRW10 hex socket button head

41

6668814

SWITCH bucket position on/off

42

6599696

SOCKET & BULB

42

895771

#161 BULB

43

6624289

STRAP, TIE
