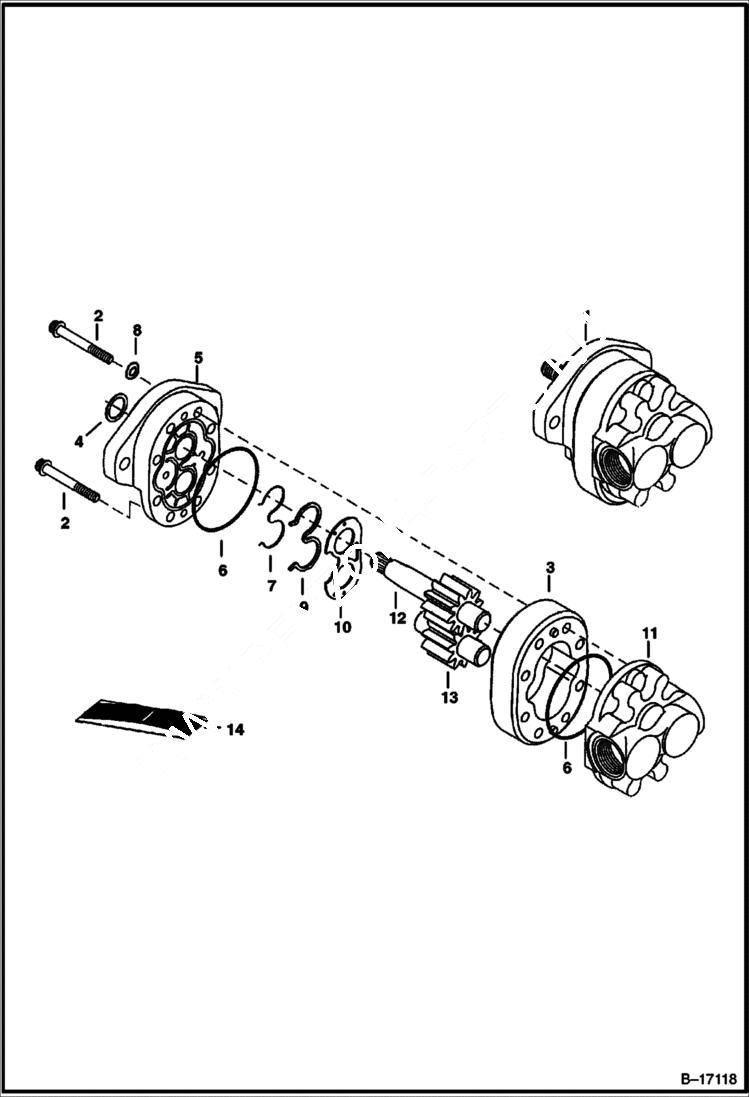

Запчасти Bobcat 500s GEAR PUMP HYDROSTATIC SYSTEM

1

6673112

PUMP Was 6672484 - A

2

93G536

BOLT

3

BODY NSS

4

WASHER NLA - Order 6668013 - Was 945412 - A

5

COVER NSS

6

O-RING NSS

7

O-RING NSS - moulded

8

WASHER NLA - Order 6668013 - Was 6672630 - A

9

SEAL NSS

10

PLATE NSS - wear

11

COVER NSS

12

GEAR NSS

13

GEAR NSS

14

6668013

SEAL KIT Ref. 4 & 6-10
