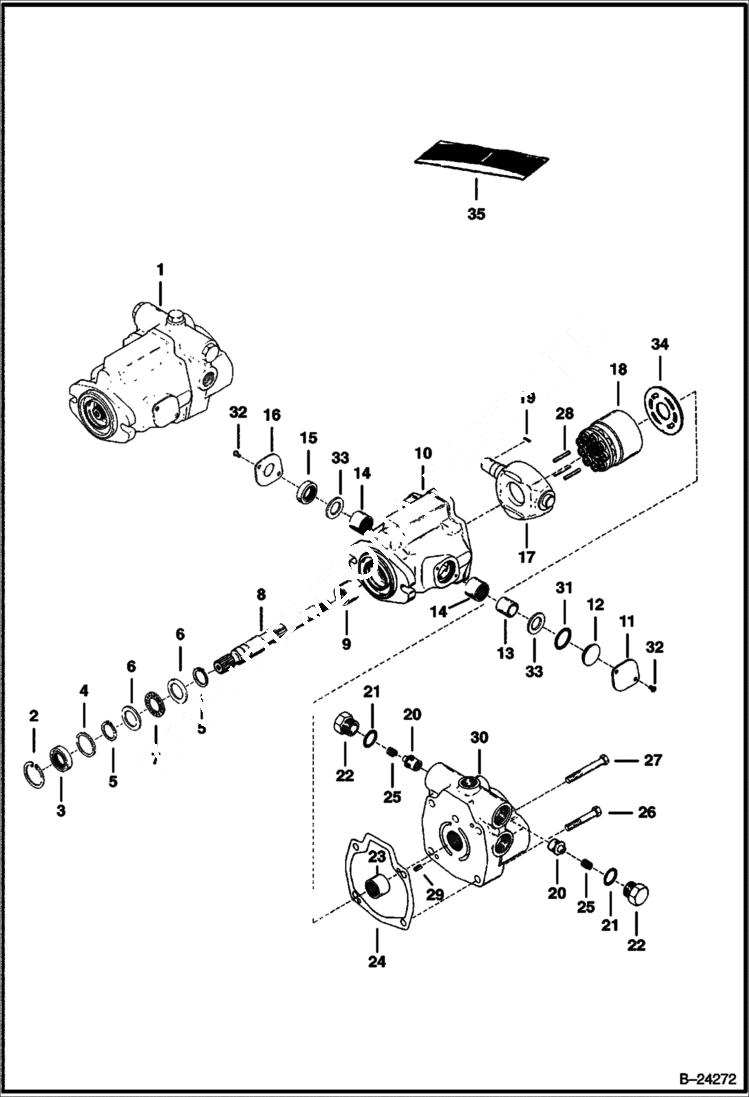

Запчасти Bobcat 500s HYDROSTATIC PUMP (Rear) HYDROSTATIC SYSTEM

1

PUMP NLA - Eaton 70145-REH-02 -W/splined shaft to engine yoke - order 6673975 pump, 6562960 yoke, 6558924 adapter, 616783B washer & 18C000616B bolt-Was 6672701 - A

2

661415

SNAP RING

3

SEAL NSS

4

6598875

WASHER

5

710776

SNAP RING

6

6598878

RACE

7

3292657

BEARING thrust

8

SHAFT NLA - drive - splined - order 6598894 tapered shaft, 6598880 key, 6562960 yoke, 6558924 adapter 616783B washer & 18C000616B bolt - Was 6672703 - A

9

851239

BEARING

10

6667673

HOUSING W/Ref. 9

11

6598887

COVER

12

6648789

COVER

13

6598883

RACE

14

654387

BEARING

15

SEAL NSS

16

6598886

COVER

17

6598892

YOKE

18

6598893

GROUP rotating

19

6630170

KEY

20

6664890

RELIEF VALVE

21

O-RING NSS

22

6513998

PLUG W/Ref. 21 & 25

23

654386

BEARING

24

GASKET NSS

25

6514010

SPRING

26

17C532

BOLT 5

27

17C540

BOLT

28

6654126

PIN

29

214028

PIN

30

6667670

PLATE W/Ref. 23

31

O-RING NSS

32

6598881

SCREW

33

6598876

WASHER

34

6667668

PLATE valve wear

35

6598896

KIT, SEAL Ref. 2, 3, 5, 15, 21, 24 & 31
